Steering Column: Description

Column is of energy absorbing/collapsible design. Components include upper and lower column sections, steering shaft and 2 joints (in series) which connect column and steering box.

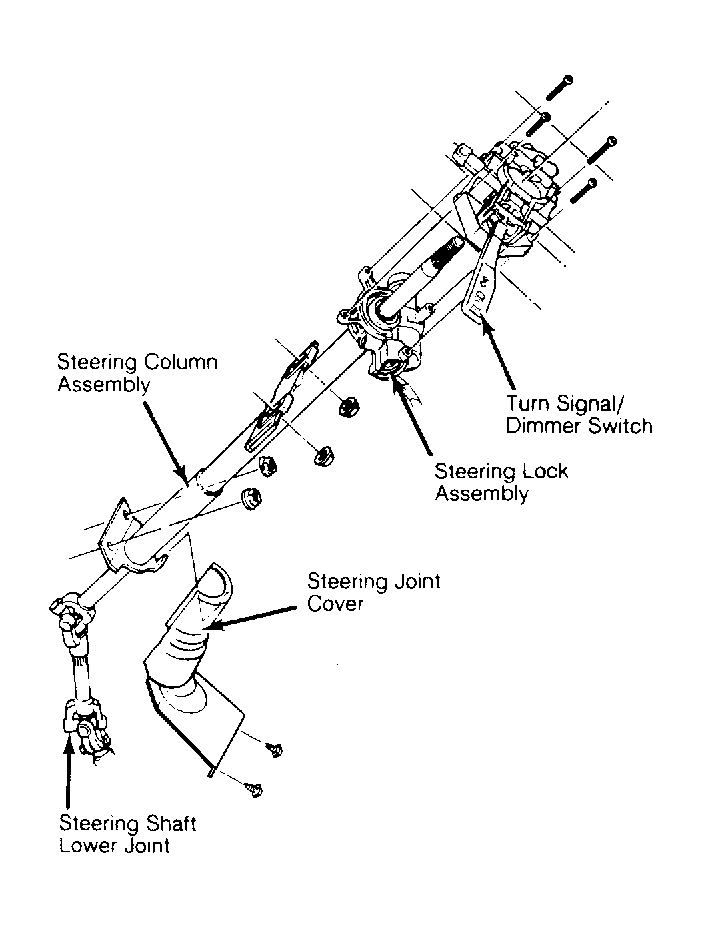

Fig 1: Sprint Steering Column Assembly (Typical)
G51182Courtesy of GENERAL MOTORS CORP.
