Auto Choke Relay

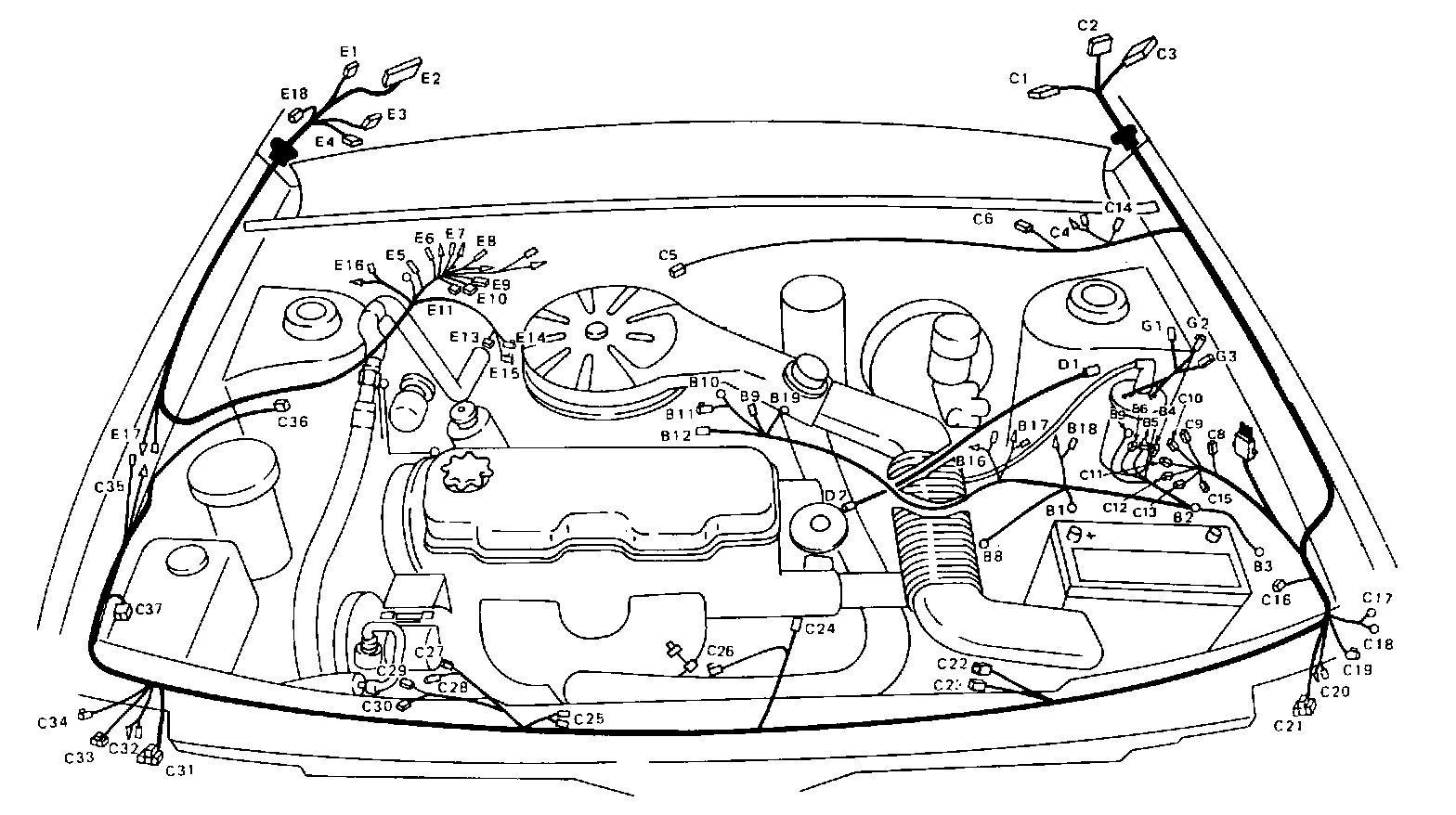

Engine Compartment Wiring:

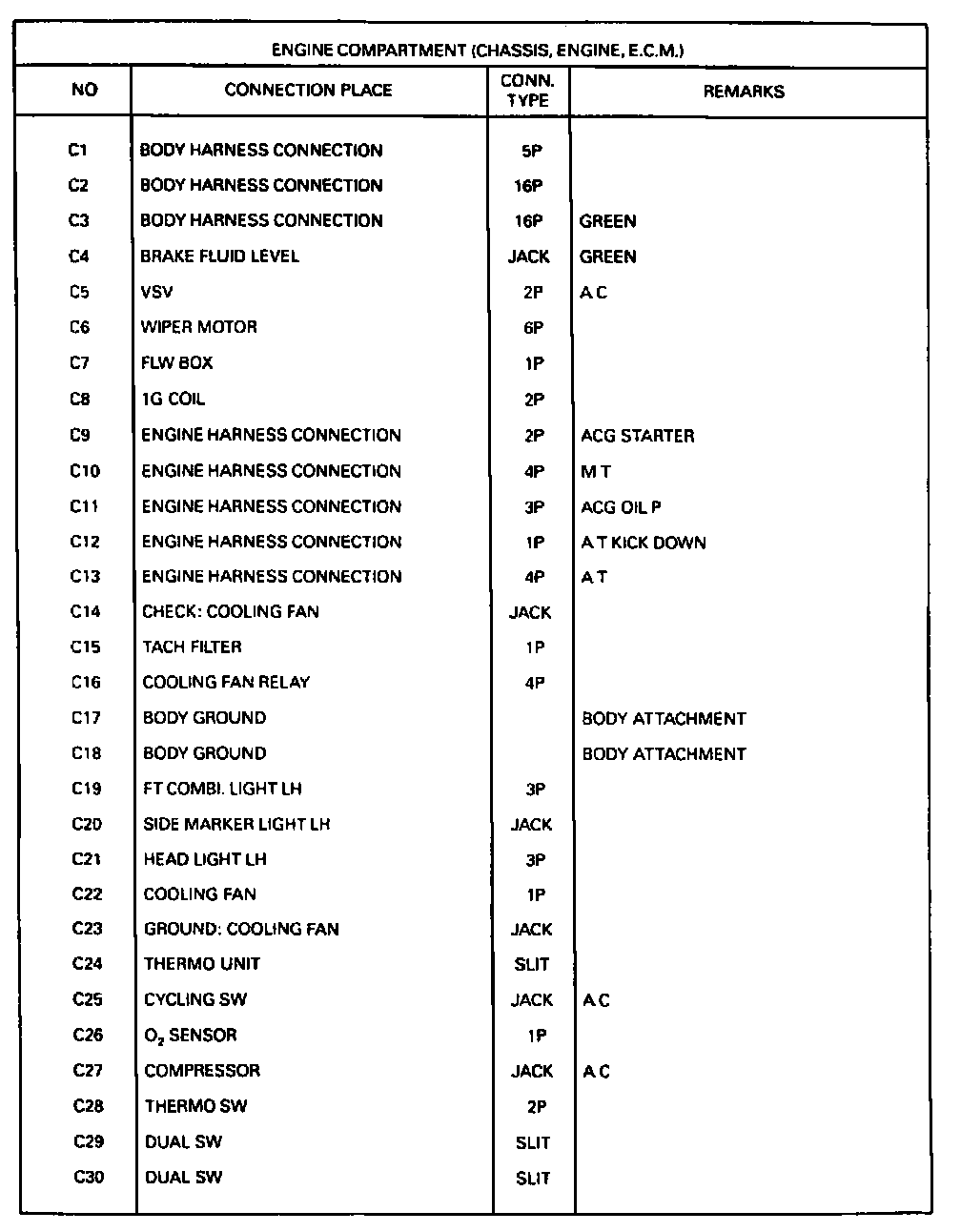

Engine Compartment Wiring Identification (1 Of 2):

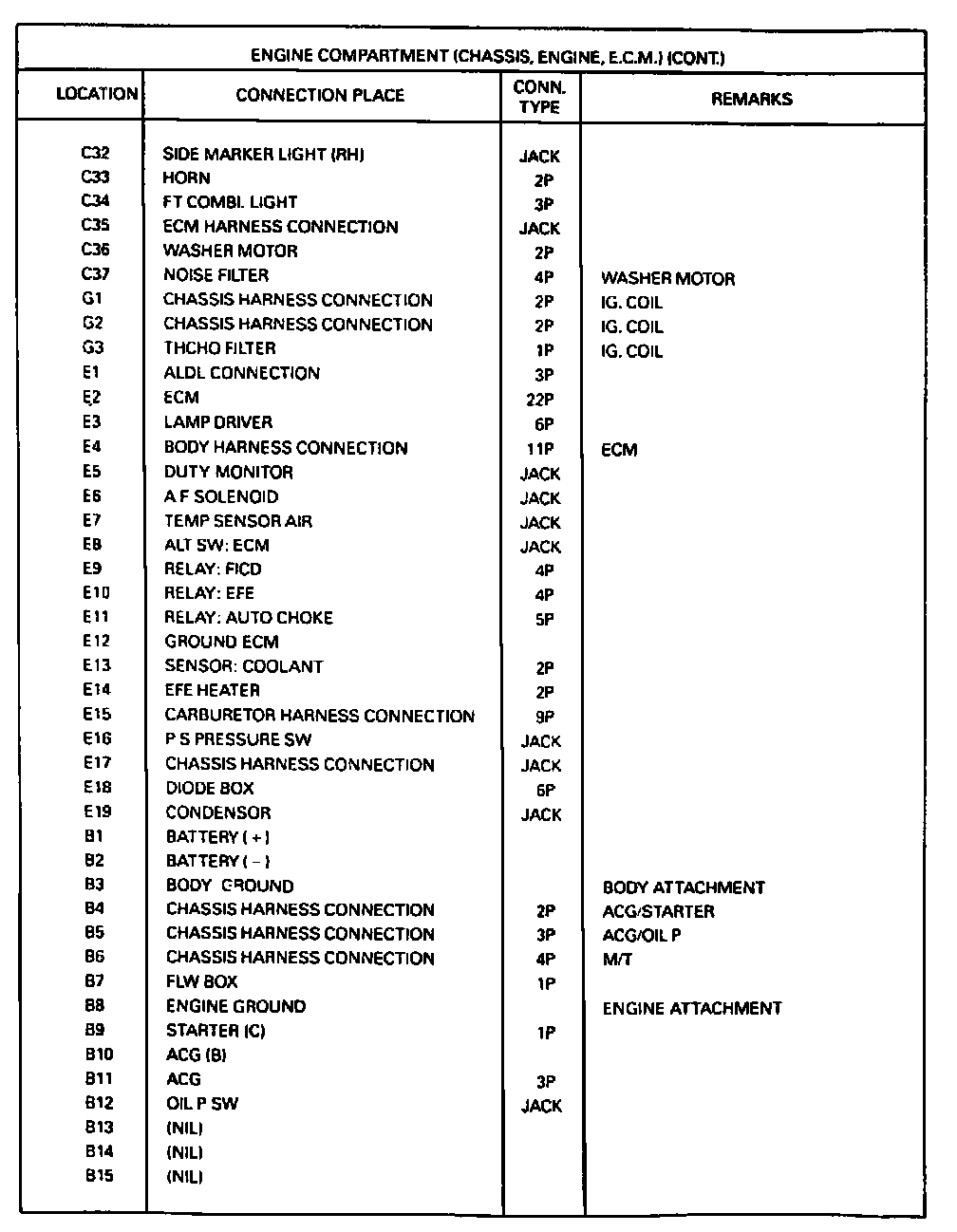

Engine Compartment Wiring Identification (2 Of 2):





Auto Choke Relay: Connector Number E11
