Home
>>
Chevrolet
>>
1985
>>
Spectrum L4-91.5 1.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
System Performance Check
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Performance Check

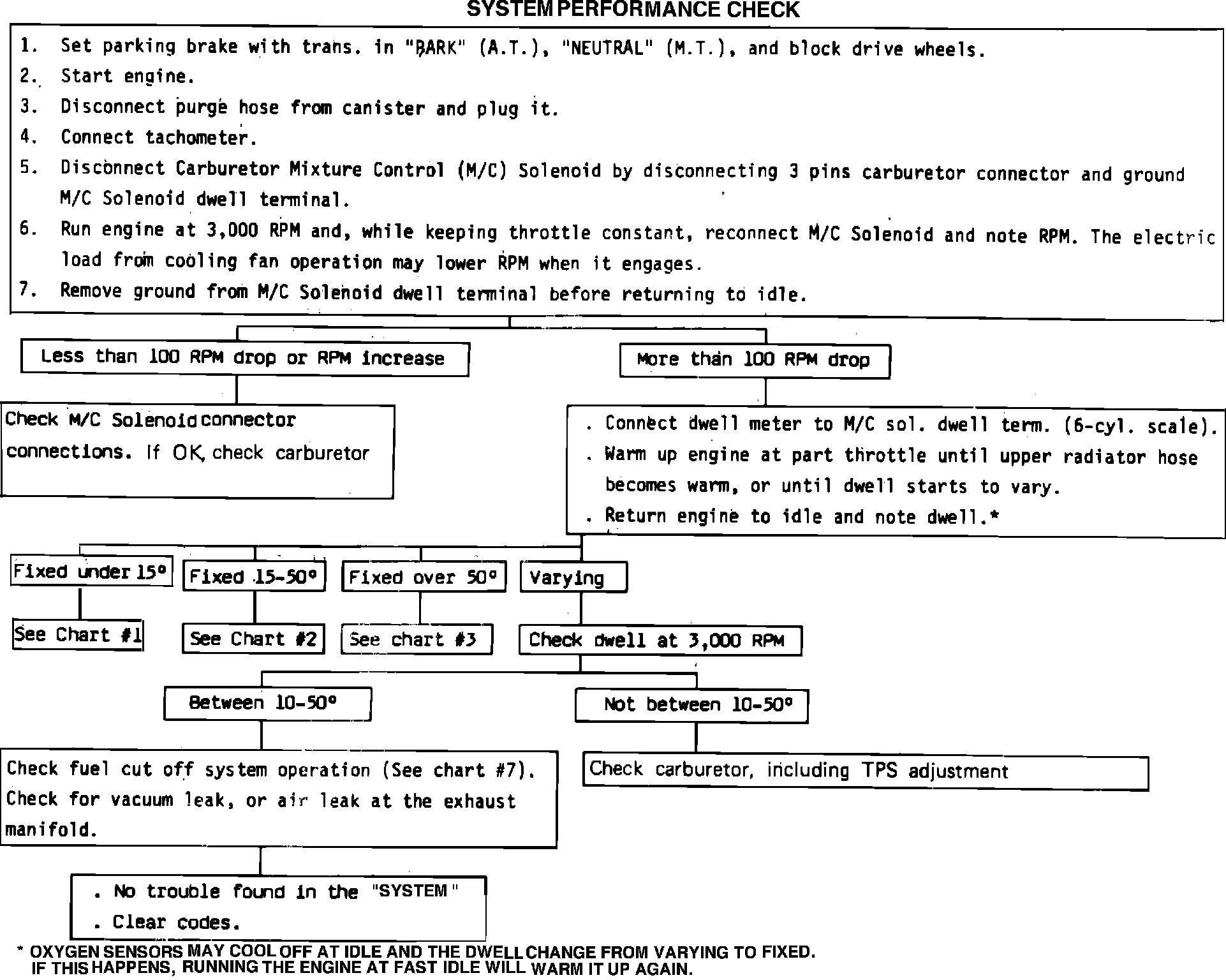

Fig. 7 System performance check:
