Electronic/Powertrain Control Module (ECM/PCM)

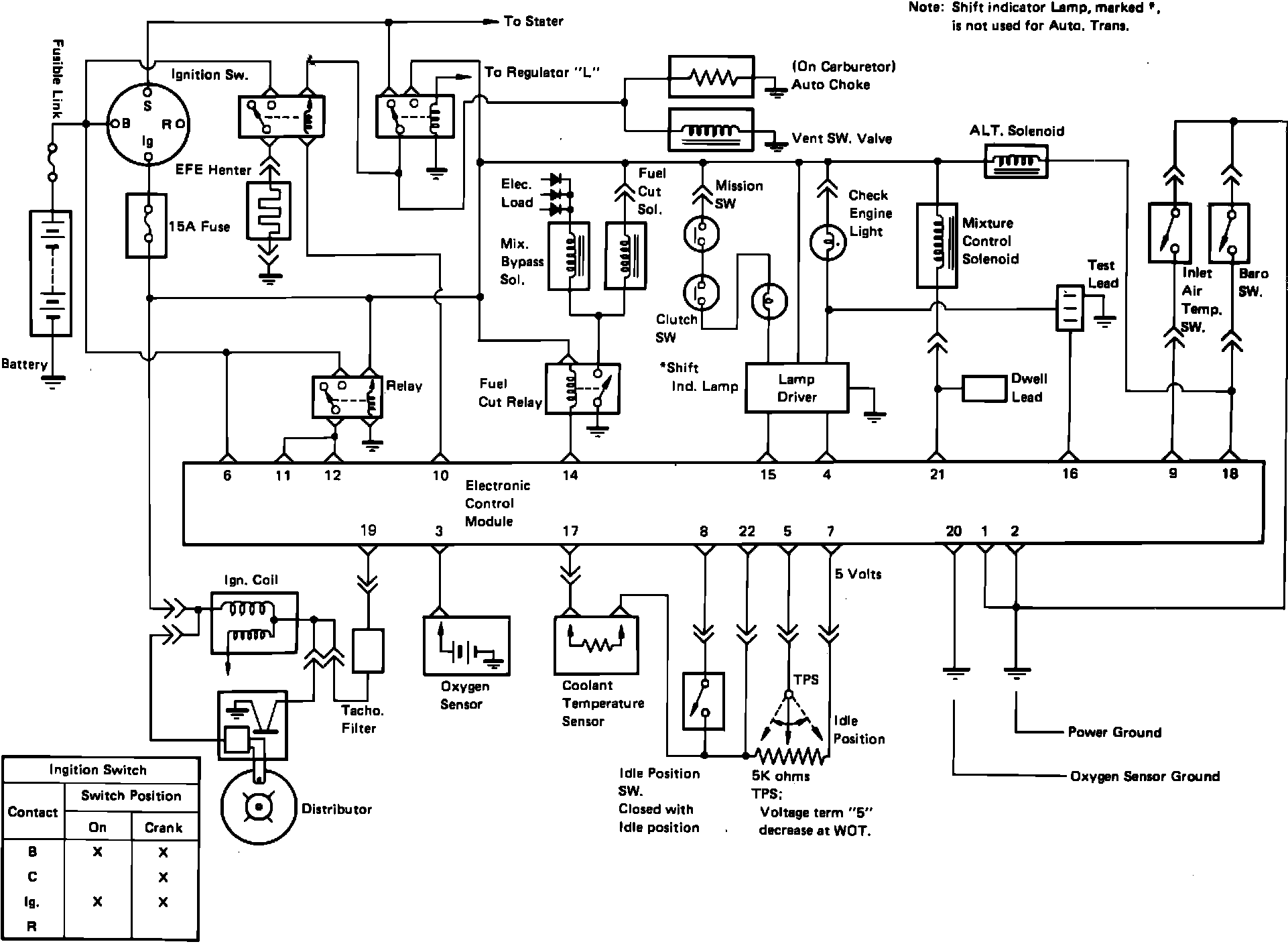

Fig. 1 Closed loop emission control system electrical diagram:
