Powertrain Management: Locations

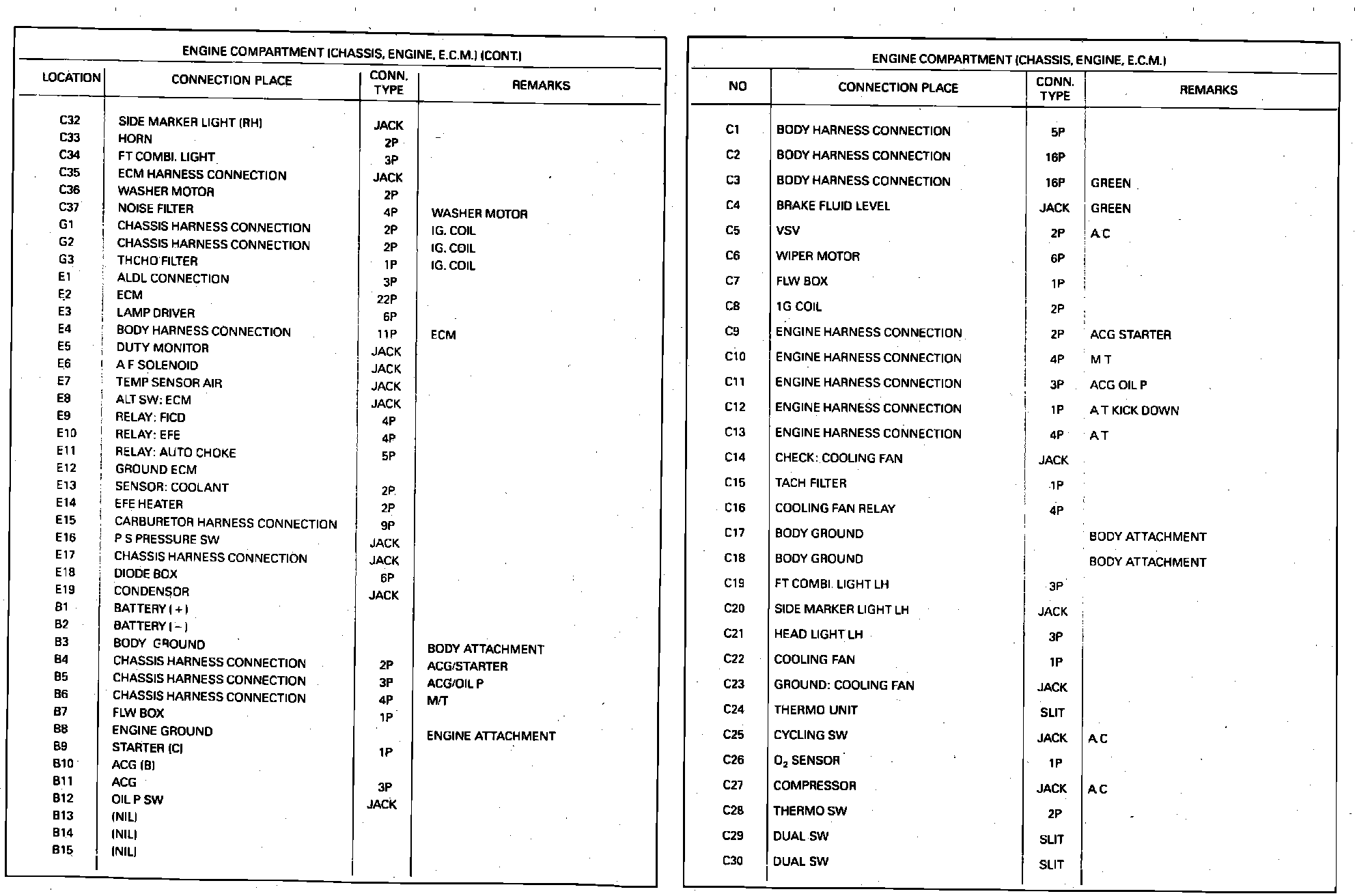

Engine Compartment Wiring (Part 1 Of 2):

Engine Compartment Wiring (Part 2 Of 2):

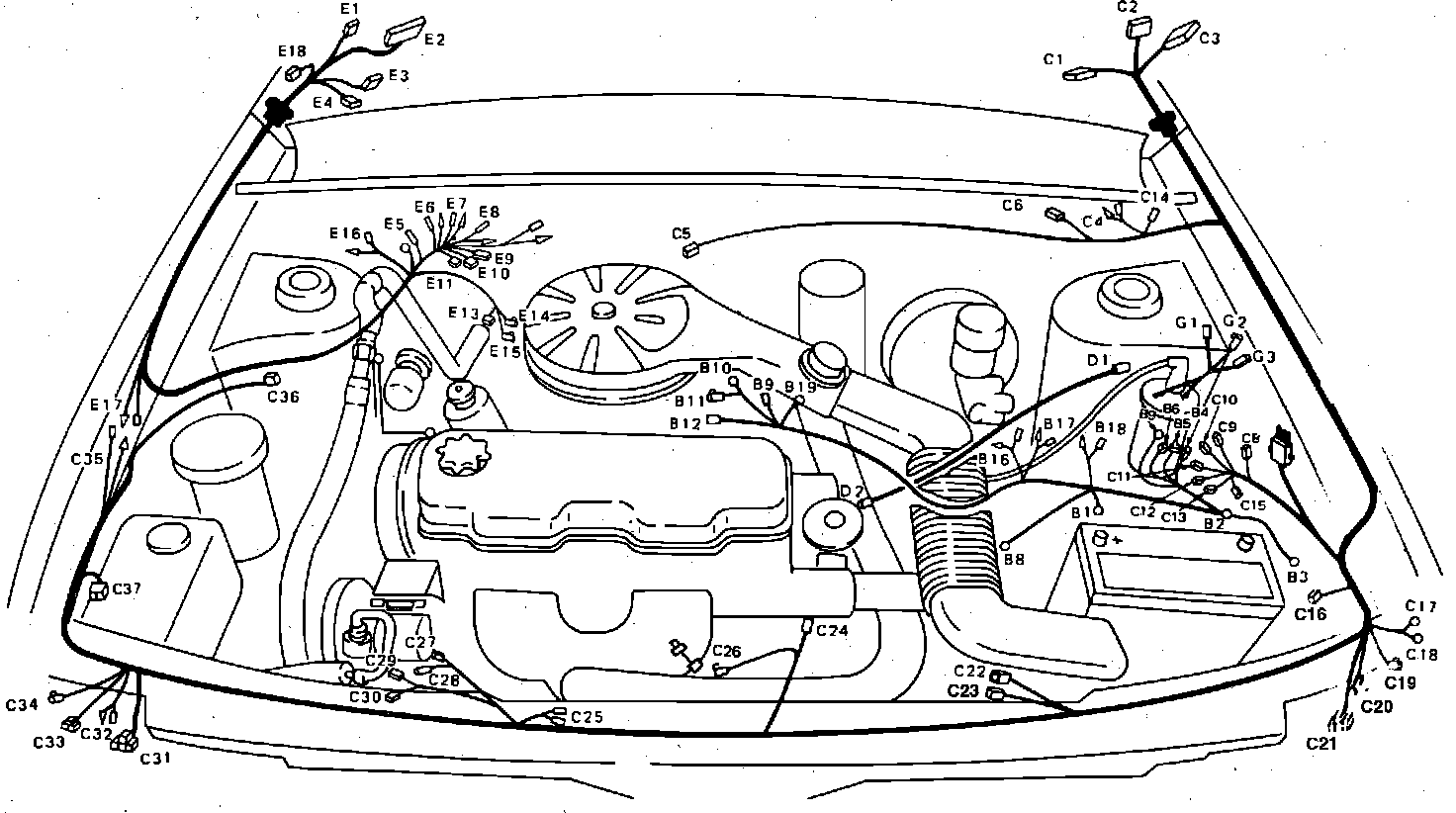

Engine Compartment
