Design and Clearance Specifications

DESIGN AND CLEARANCE SPECIFICATIONS

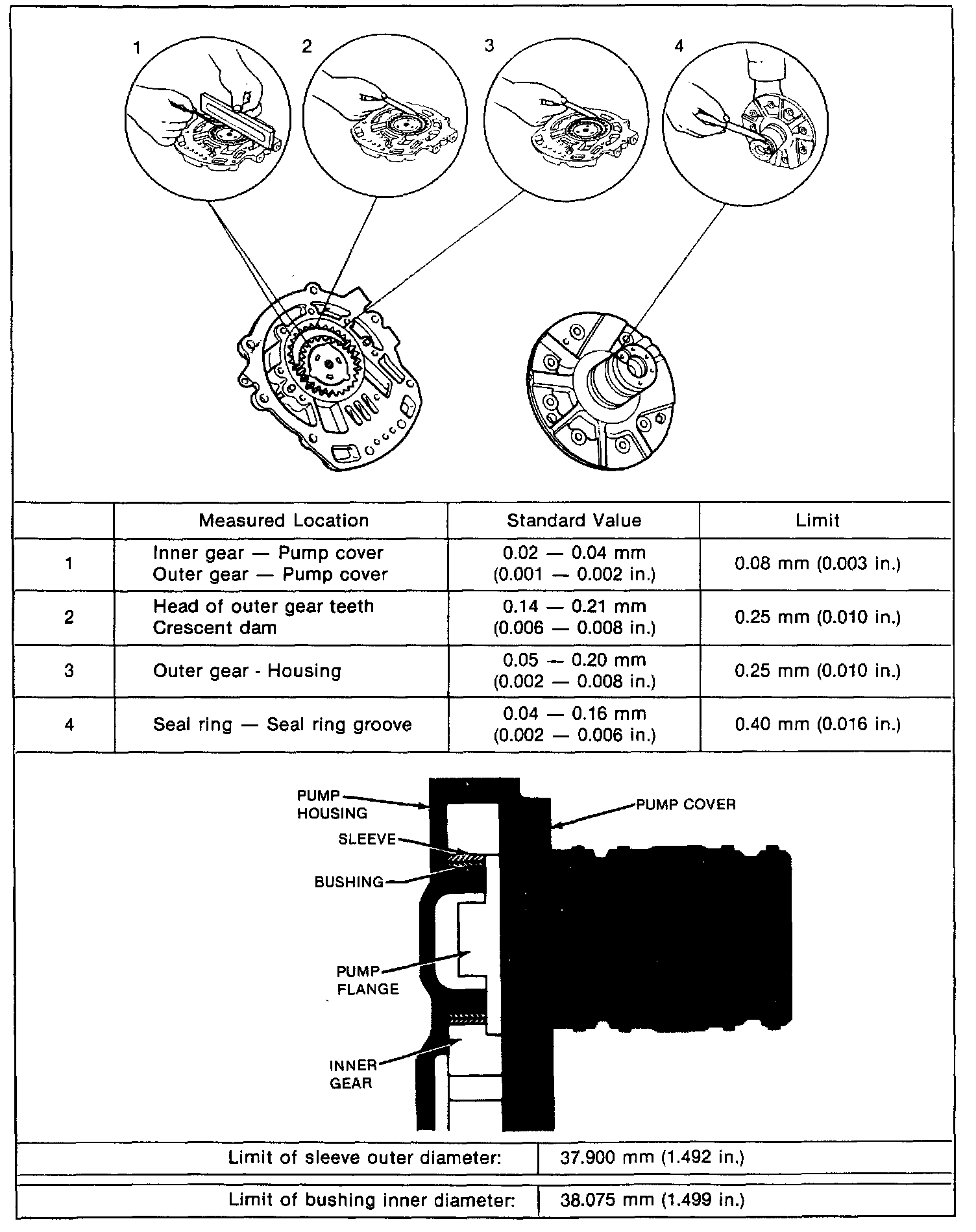

Clearance Specifications:

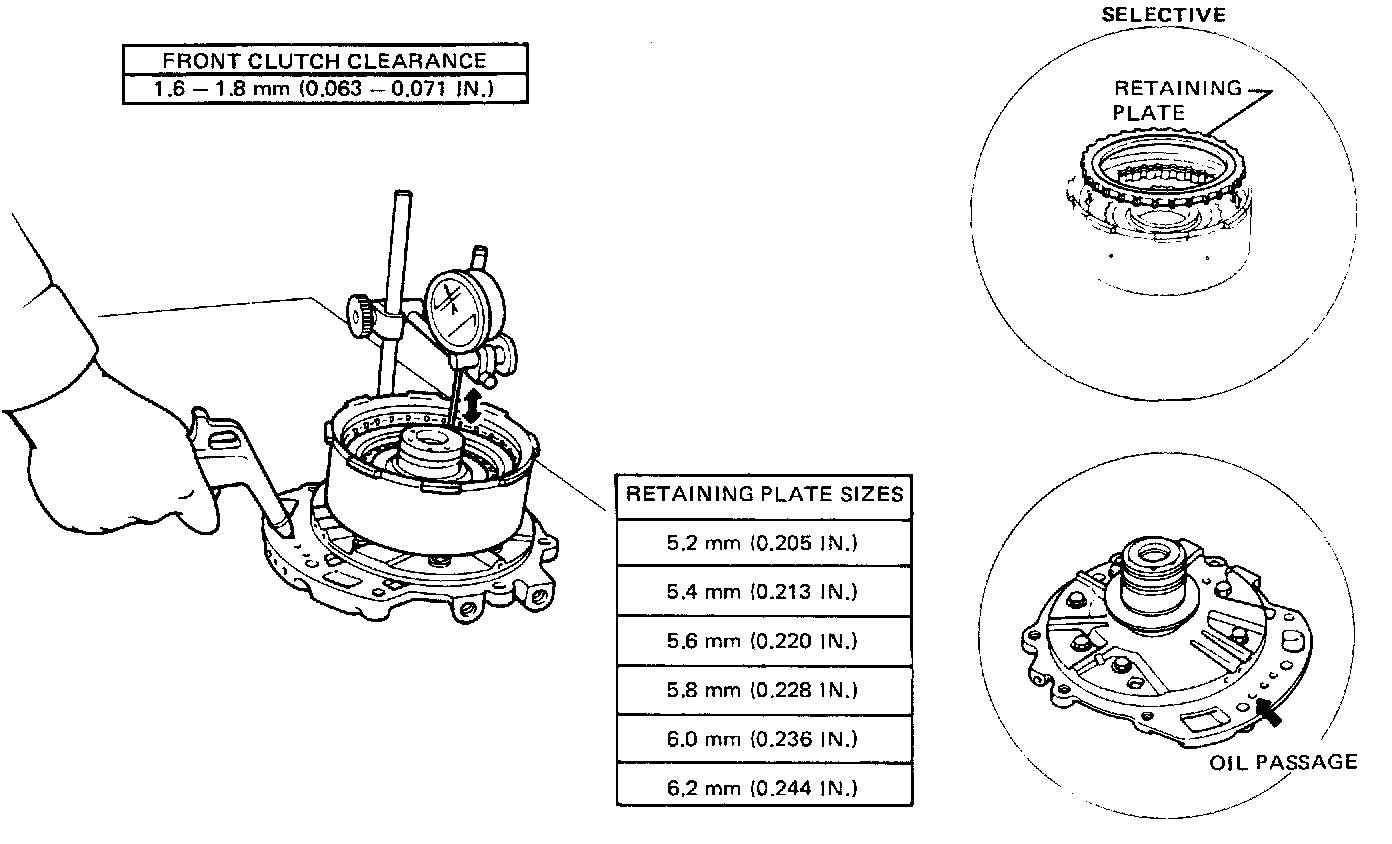

Front Clutch Clearance:

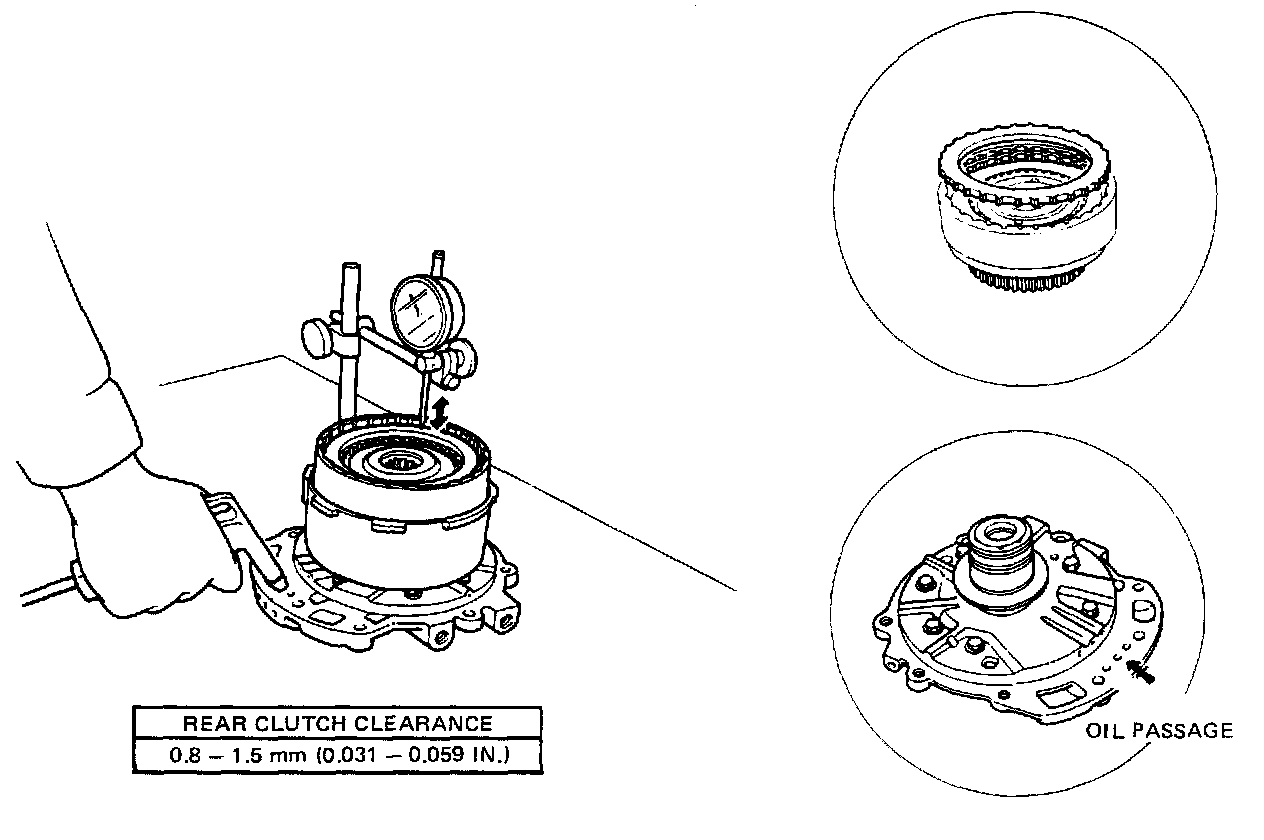

Rear Clutch Clearance:

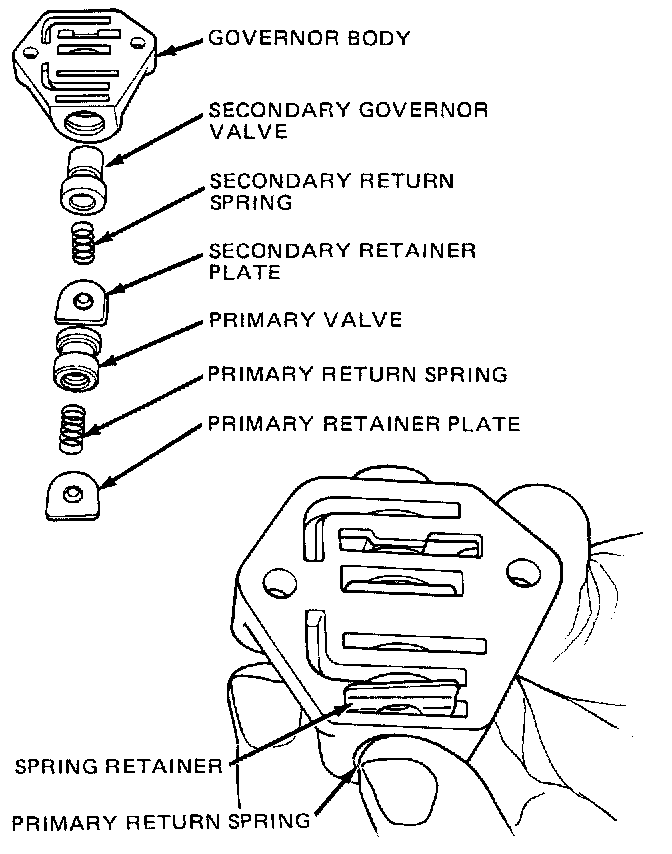

Governor Springs And Retainers:

Return Spring Specifications:

Valve Body Bolt Torque Specifications:

Valve Body Bolt Torque Specifications:

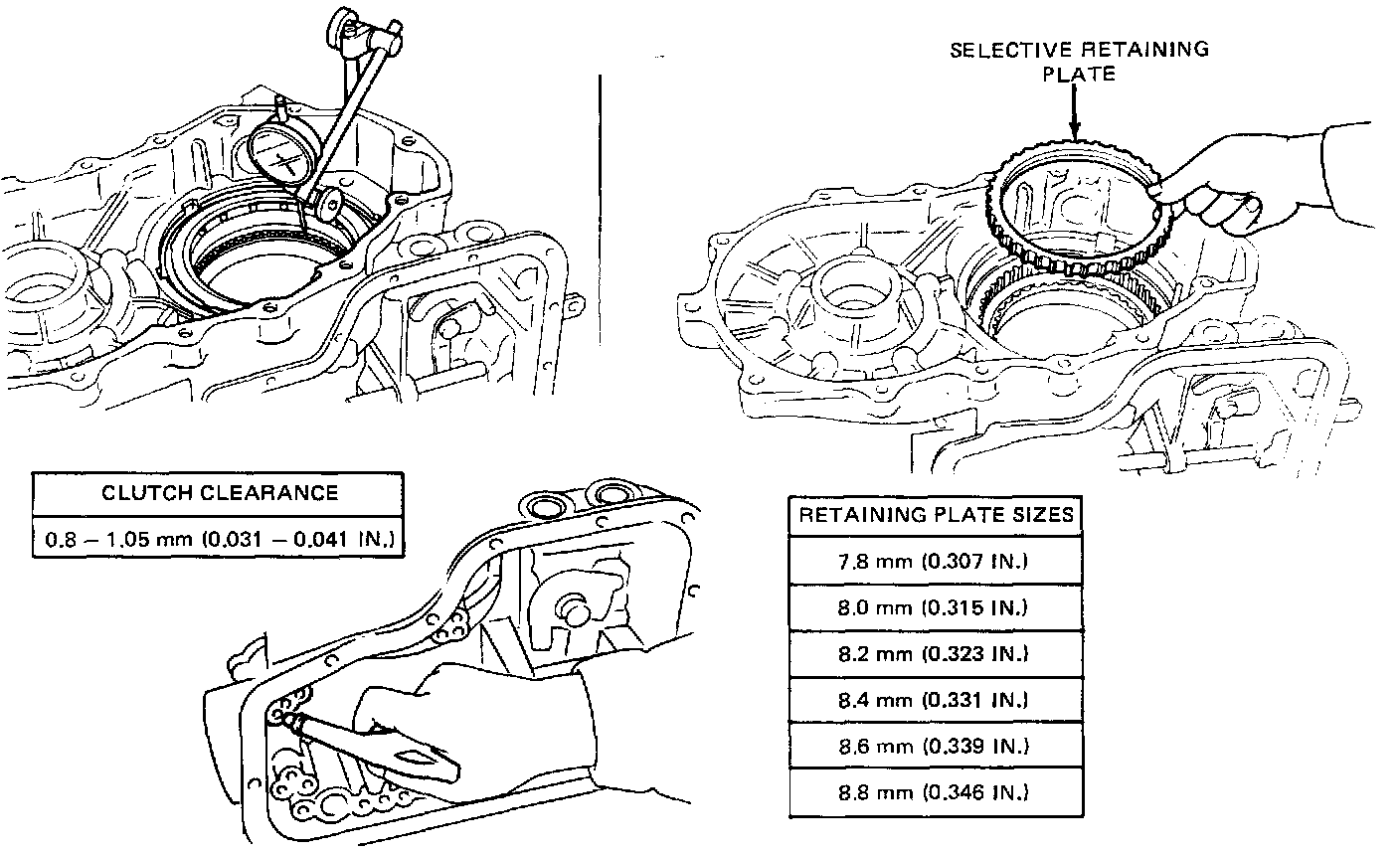

Low/Reverse Clutch Clearance:

Countershaft Rear Bearing
Clearance 0.125 in. (3 mm.) beyond case surface

Output Shaft Bearing Preload 0.001-0.005 in. (0.03-0.13 mm.)
