Electronic Spark Control Module: Testing and Inspection

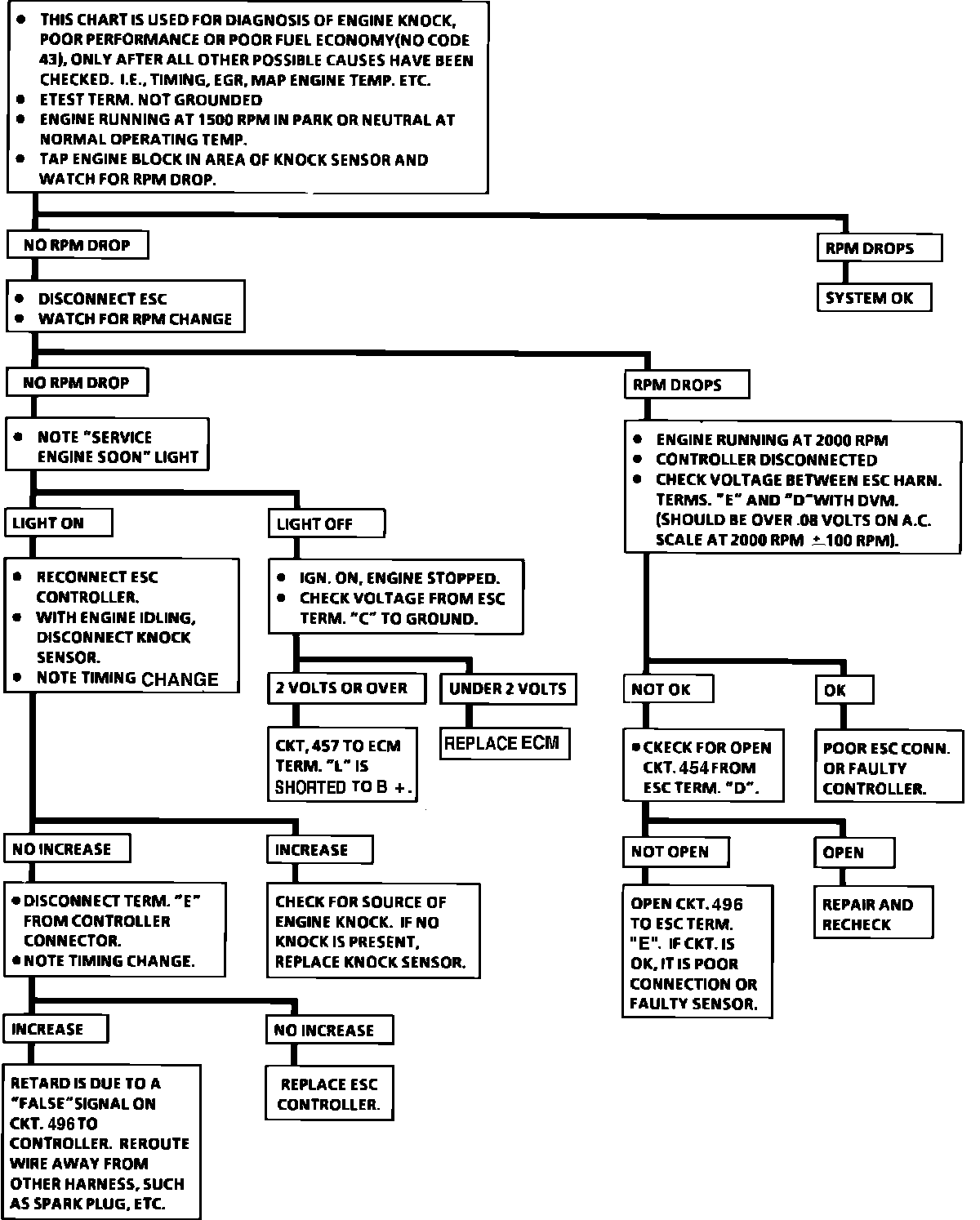

Fig. 6c ESC performance chart (1985-88 carbureted models exc. V6-181/3.0L):
