Powertrain Management: Locations

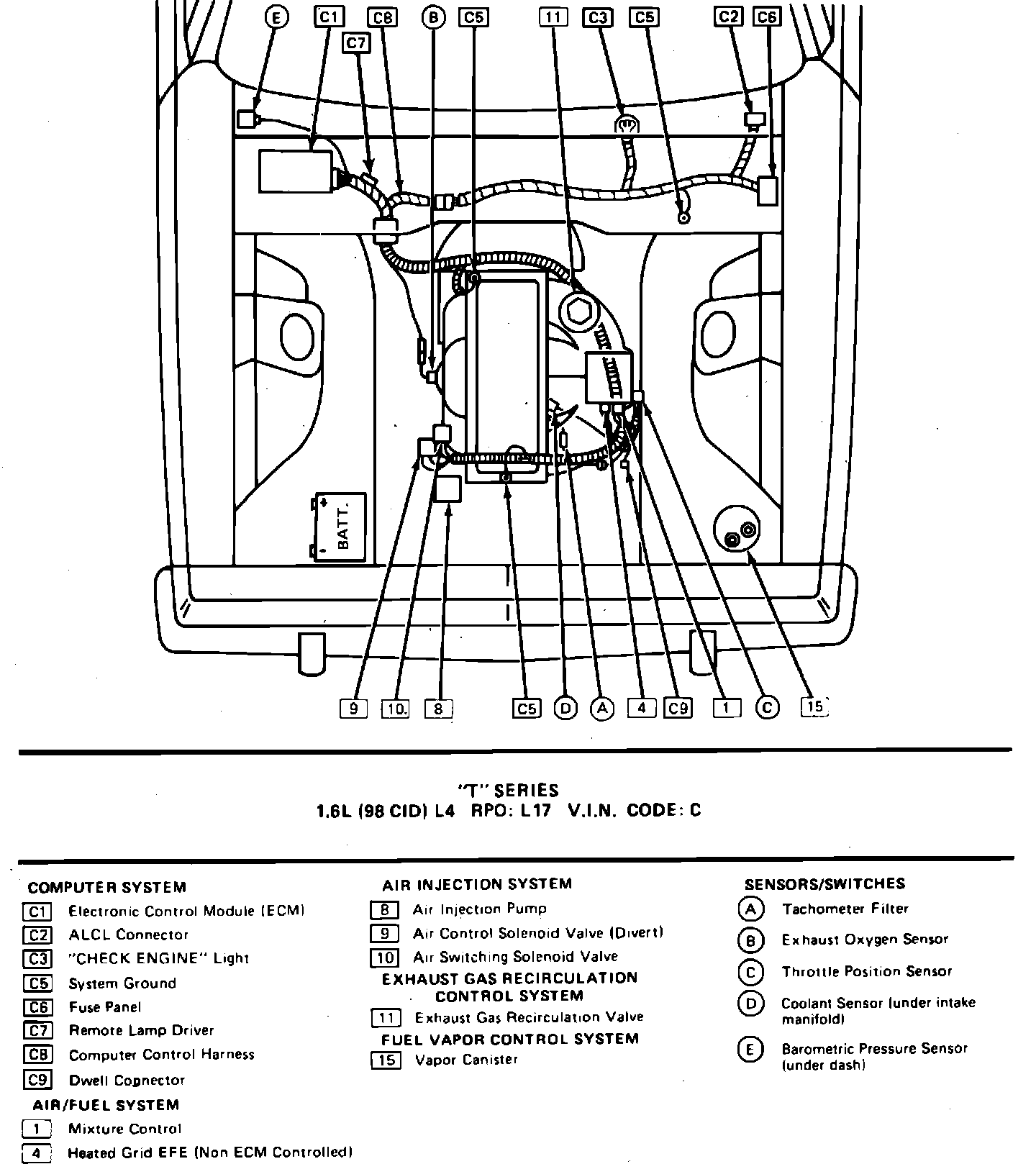

Fig. 59 Emission Component Location. 1987 1000 W/4-98/1.6L, Engines:
