Pick-Up Coil Resistance Test: Spectrum

Turn ignition off. Remove distributor cap and cover. Measure pick-up coil resistance across terminals. See Fig 1. Resistance should be 140-180 ohms. If not, replace pick-up coil.

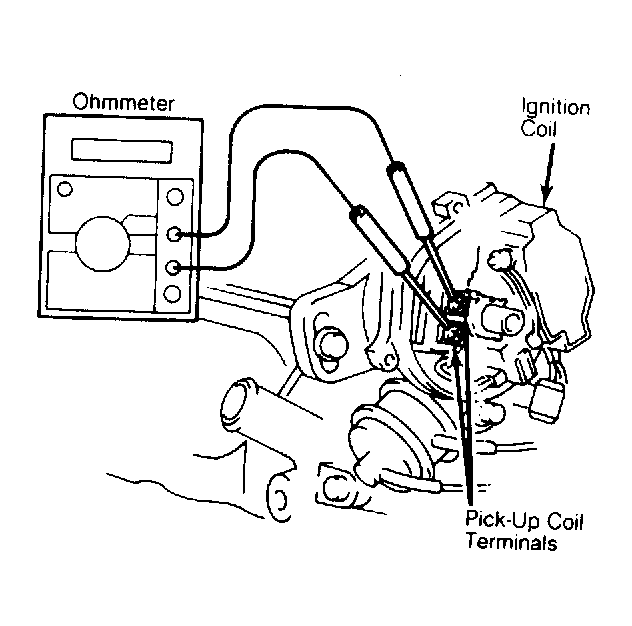

Fig 1: Spectrum Pick-Up Coil Resistance Test

Courtesy of GENERAL MOTORS CORP.
