Tank Pressure Control Valve

Remove rubber hoses from control valve. Apply vacuum to pipe "A". See Fig 1 . Blow into pipe "B" and check if valve is open. With pipe "C" capped, apply pressure to pipe "B" and ensure air does not pass through. If valve does not perform as outlined, replace valve.

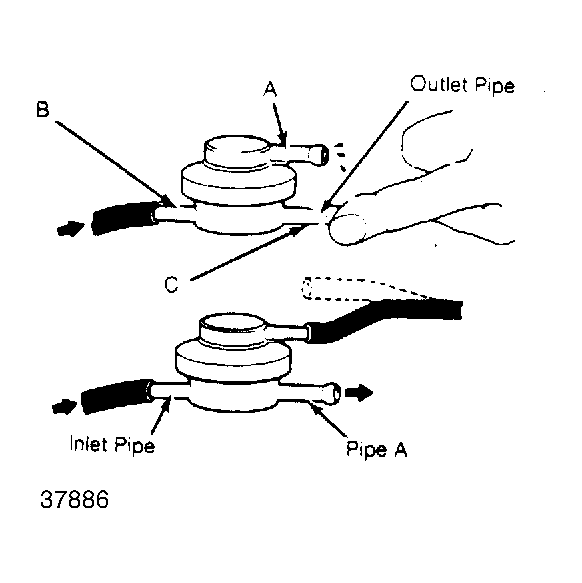

Fig 1: Testing Tank Pressure Control Valve
G37886
