Solenoid Valve

Disconnect 3 rubber hoses connected to carburetor. Blow air into inlet pipe "A". See Fig 1 . Apply 12 volts to valve and ensure valve opens. If valve opens, air should be felt from other 3 pipes. When 12 volts is removed from valve, valve should close.

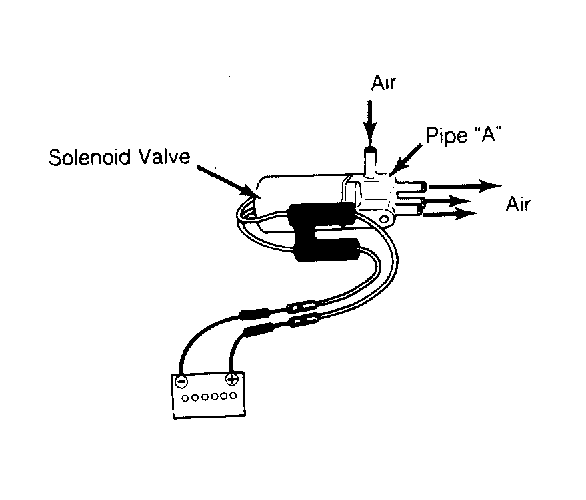

Fig 1: Checking Solenoid Valve
G65314Courtesy of ISUZU MOTOR CO.
