Wiring Diagrams

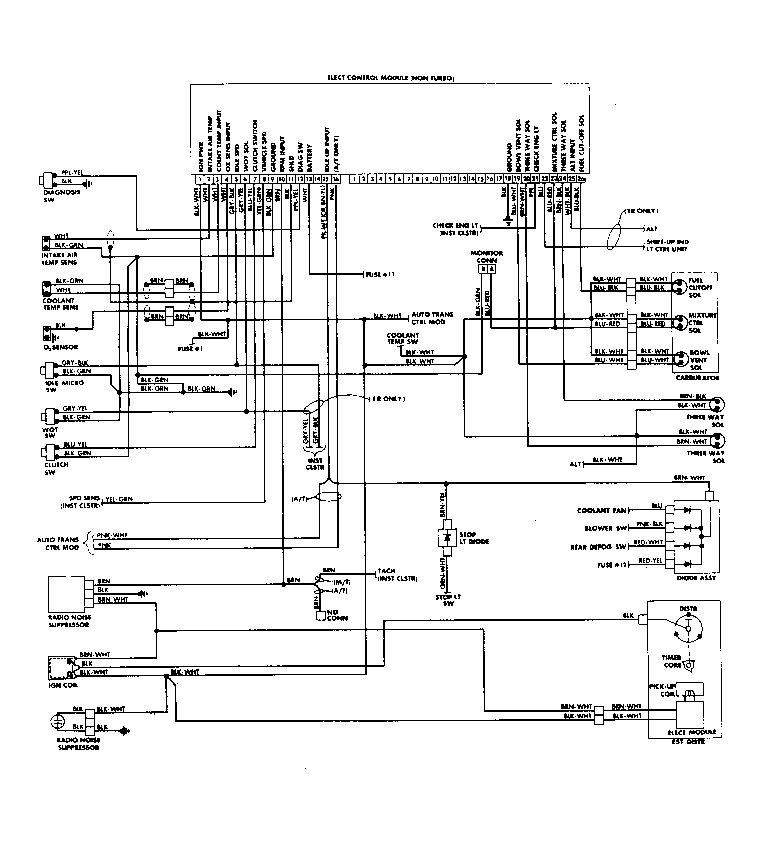

Fig 1: Chevrolet Sprint Non-Turbo FBC System Wiring Diagram

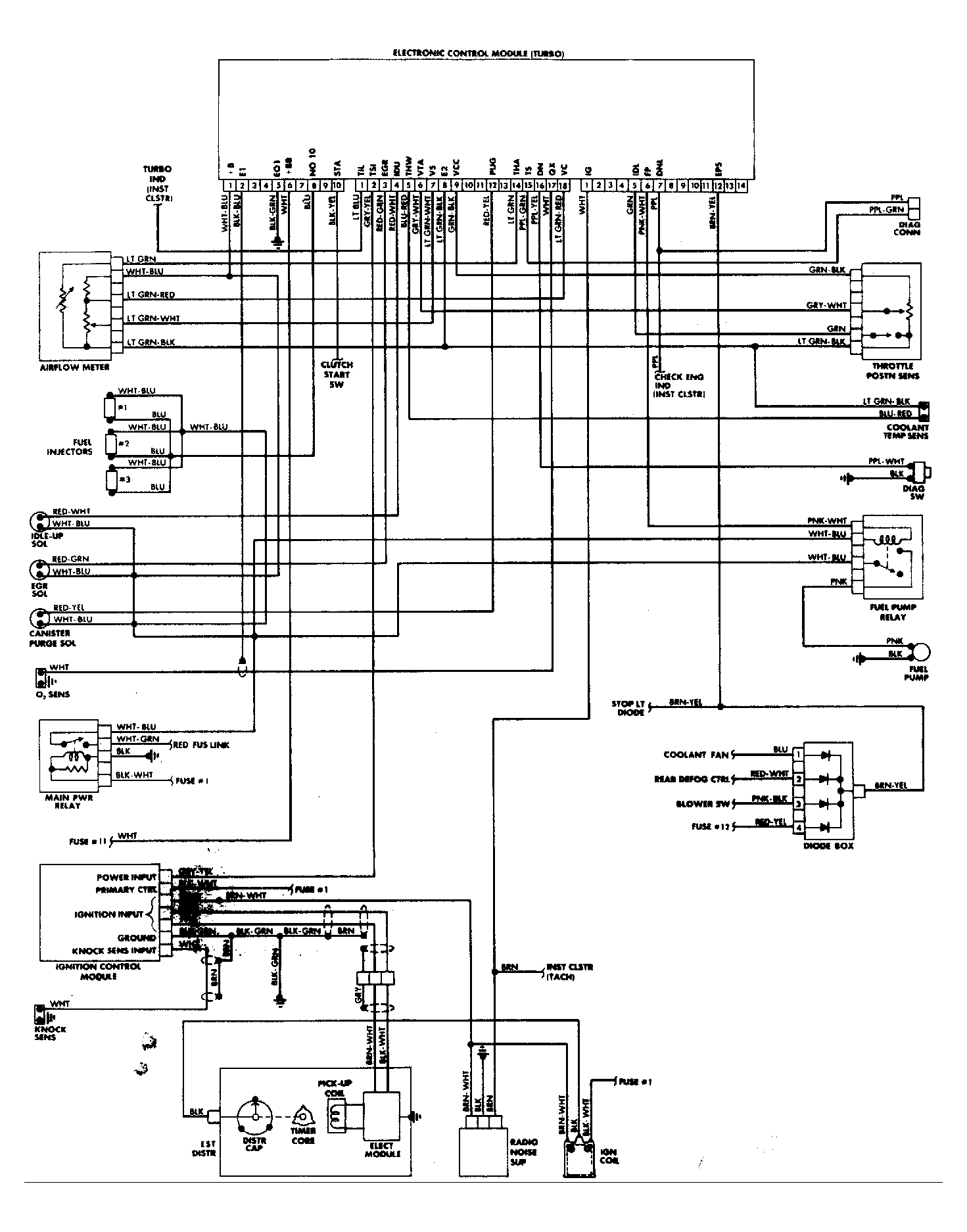

Fig 2: Chevrolet Sprint Turbo FBC System Wiring Diagram
