Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location | |
|---|---|---|

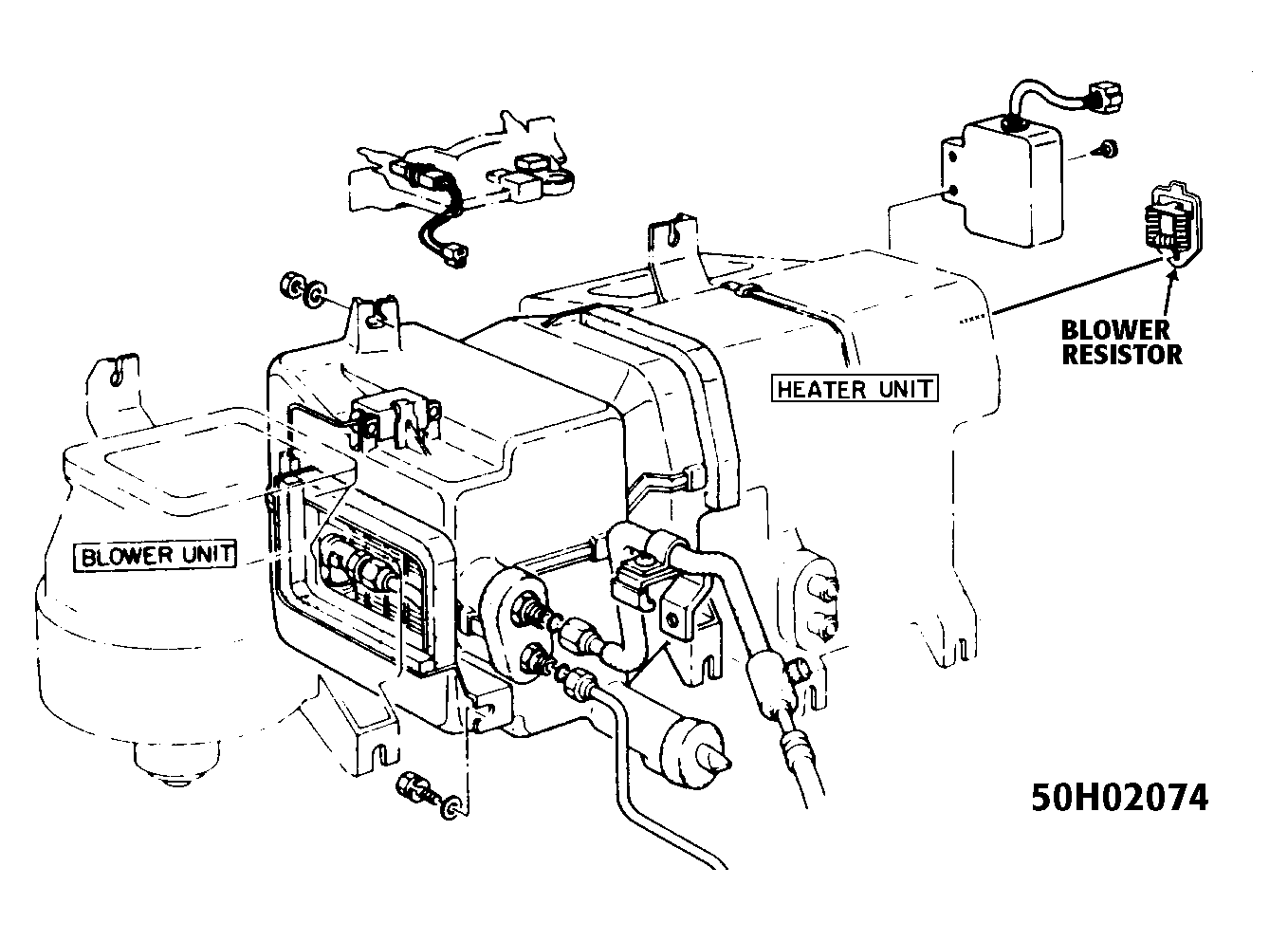

| A/C-Heater Blower Motor Resistor | On driver's side of A/C-heater blower motor housing. See Figure . | |
| Cruise Control Servo | On left rear corner of engine compartment. | |
| Diagnostic (ALDL) Connector | Under right side of dash, above A/C-heater blower motor. See Figure . | |
| Diode Boxes | ||
| Diode Box F27 | On driver's kick panel. | |
| Diode Box M3 | Under right side of dash, above A/C-heater blower motor, near Diagnostic Connector. | |
| EFE Heater | Underneath carburetor. | |
| Idle Air Control Valve | On side of throttle body. See Figure . | |
| Radio Suppression Filter | On right front corner of engine compartment. | |
