Air Injection System: Description

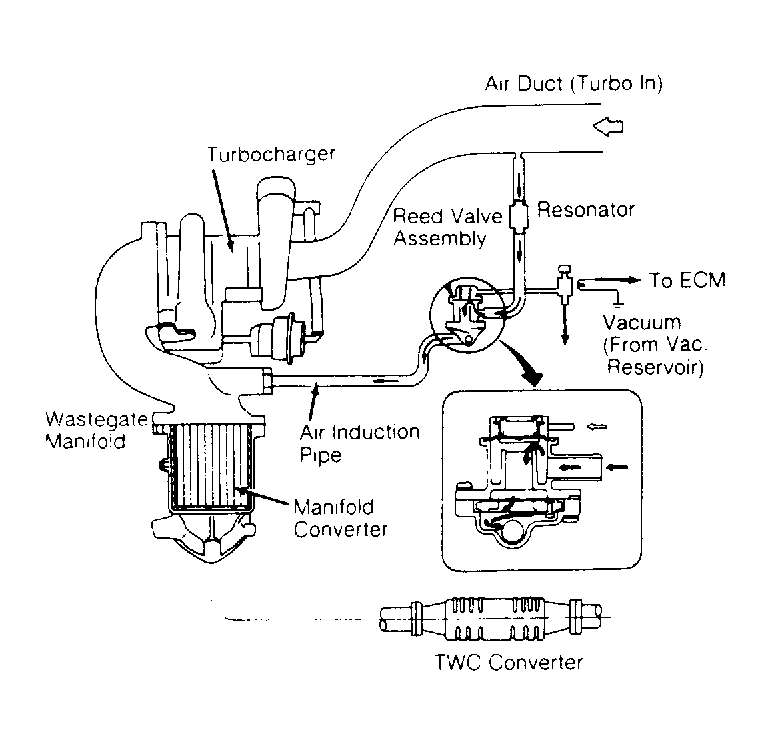

The air injection system is designed to reduce CO and HC emission by supplying filtered air through the air induction pipe into the wastegate manifold. This system consists principally of the reed valve, vacuum switching valve, air induction pipe and electronic control module.
