Dropping Resistor

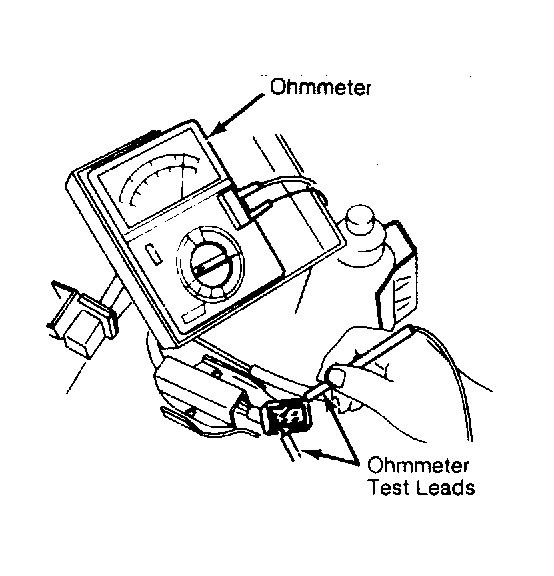

- Disconnect dropping resistor wiring at connector. Measure resistance between center terminal of resistor connector and other terminals. See Fig 1 .
- Standard resistance at all terminals should be 5-7 ohms. If any of measurements deviates from standard value, dropping resistor assembly must be replaced.
