Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Fuel Injection System - BOSCH AFC
>>
Wiring Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wiring Diagrams

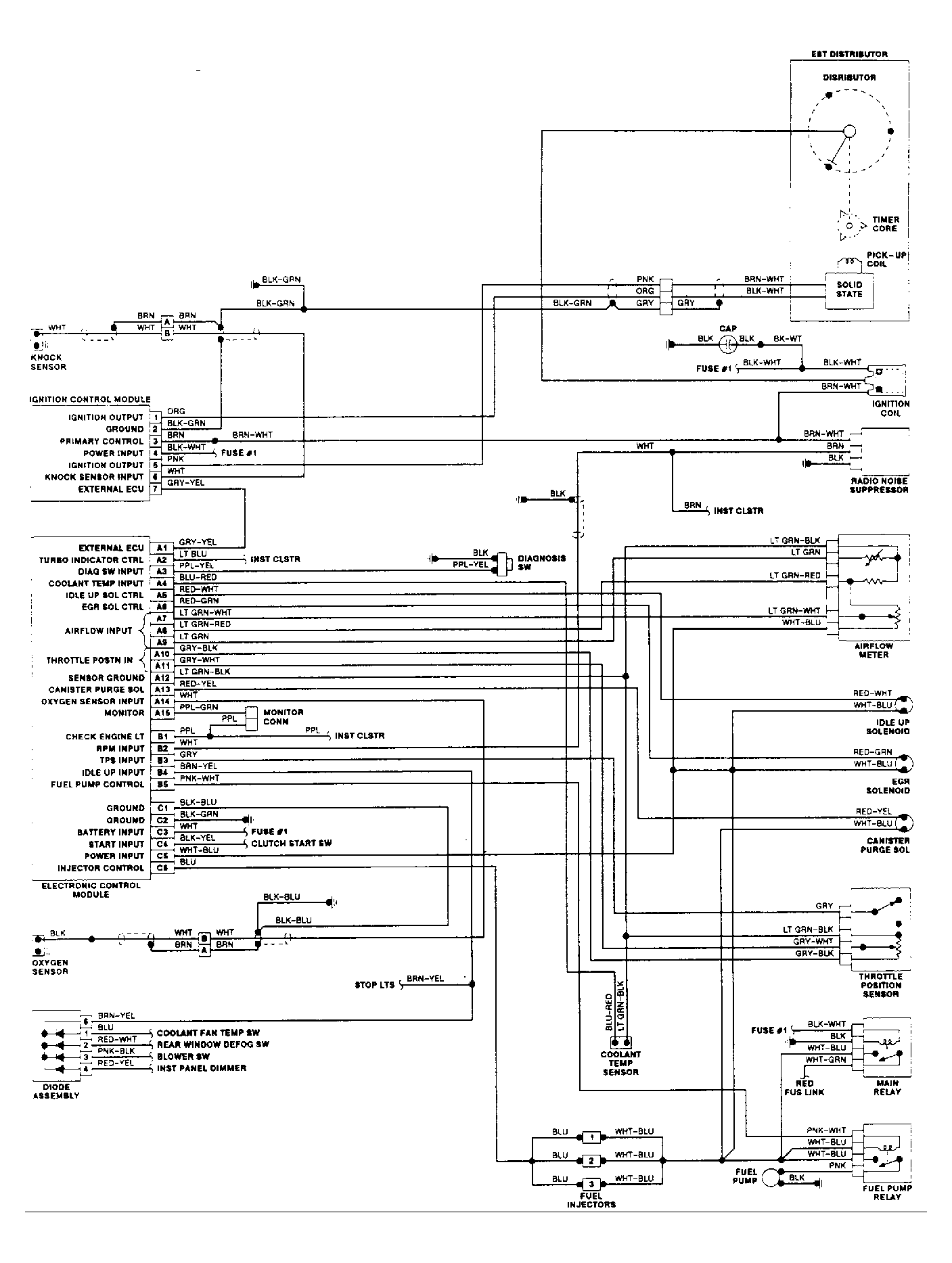

Fig 1: EFI Turbo Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
