Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|

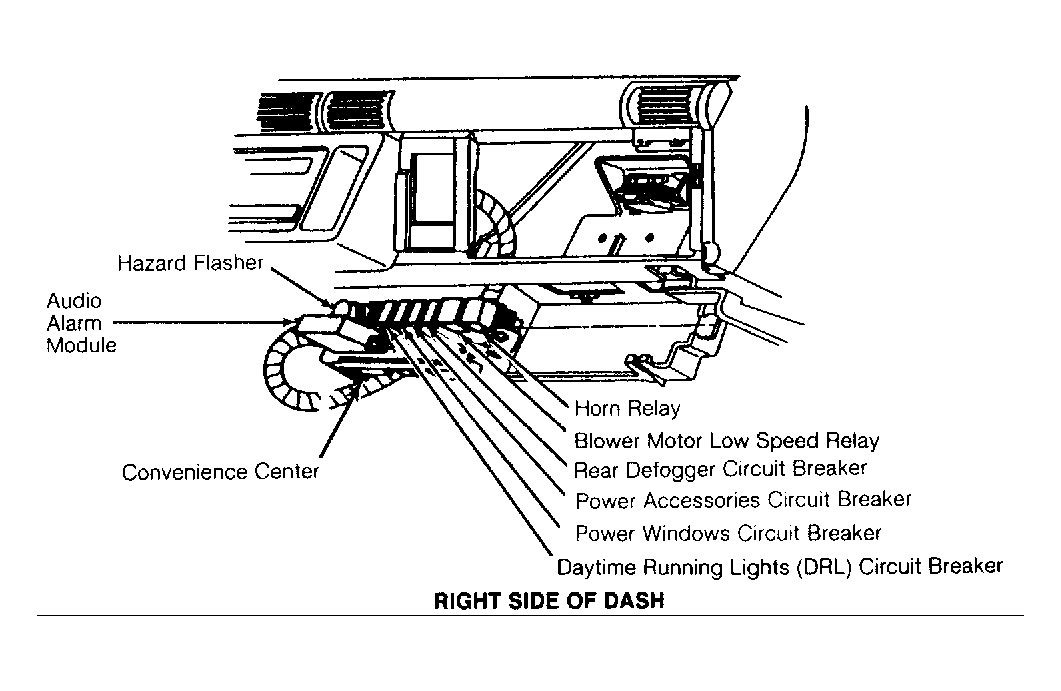

| Audio Alarm Module | Under right of dash, on convenience center. See Figure . | |
| Cruise Control Module | Behind left side of dash, left of steering column. | |
| Daytime Running Lights (DRL) Module | Behind left side of dash, left of steering column. | |
| Electronic Control Module (ECM) | Under right side of dash, behind convenience center. See Figure . | |
| Electronic Spark Control Module | Under right side of dash, behind convenience center. See Figure . | |
| Remote Dimmer Module | Behind dash, left of steering column. | |
| Wiper Motor Module | ||
| Front | In engine compartment, above right wheelwell. | |
| Rear | Behind panel in rear liftgate. | |
