Diagnostic Aids

If no trouble is found in fuel pump circuit or ignition system and the cause of a "Engine Cranks But Will Not Run" has not been found, check for the following:

• Fouled spark plugs.
• EGR valve stuck open.
• Low fuel pressure. See CHART A-6.
• Water or foreign material in the fuel system.
• A ground circuit 423 (EST) may cause a "No Start" or a "Start then Stall" condition.
• Basic engine problem.

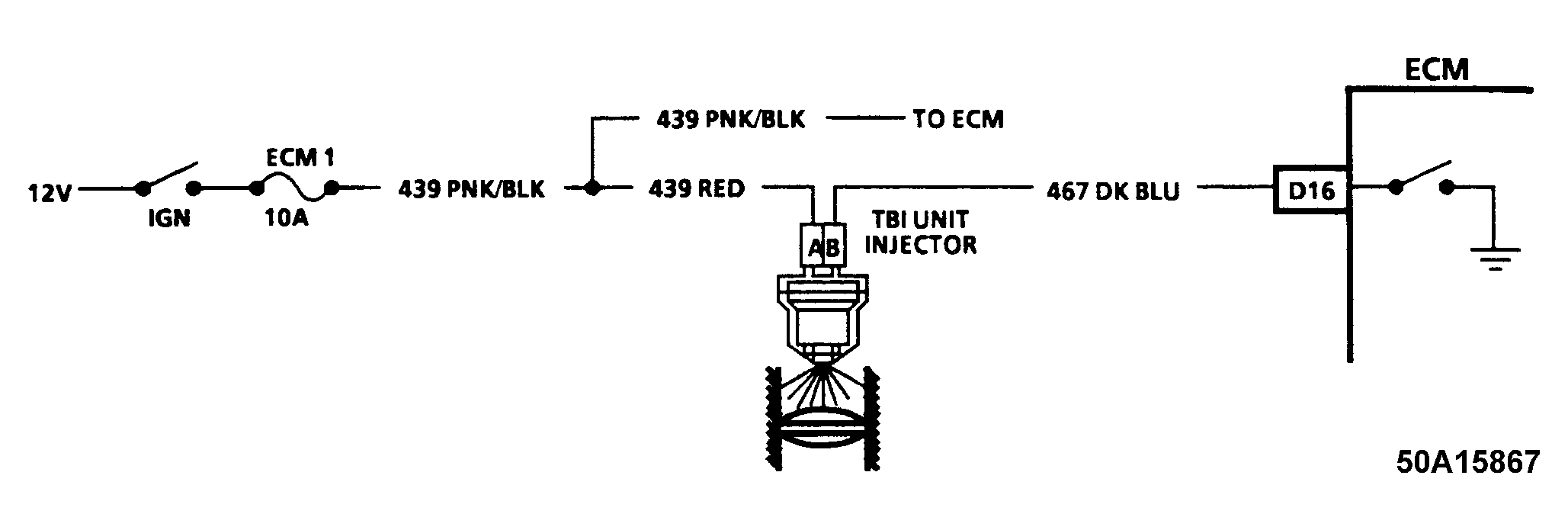

Fig 1: Chart A-3 Schematic, Engine Cranks But Will Not Run (2.5L)

Courtesy of GENERAL MOTORS CORP.

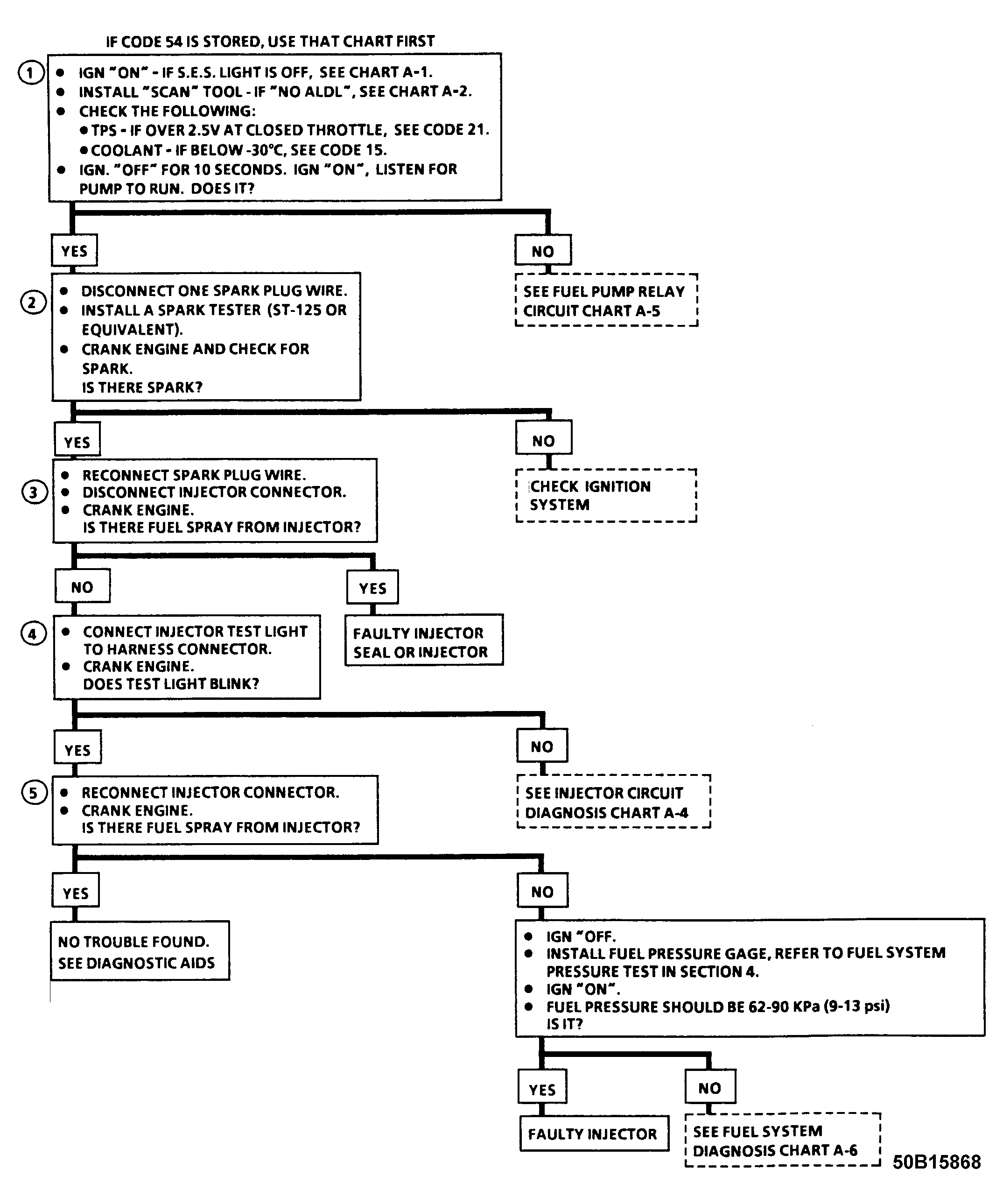

Fig 2: Flow Chart A-3, Engine Cranks But Will Not Run (2.5L)

Courtesy of GENERAL MOTORS CORP.
