Diagnostic Aids

Disregard Code 23 if SERVICE ENGINE SOON light goes out when throttle is returned to idle.

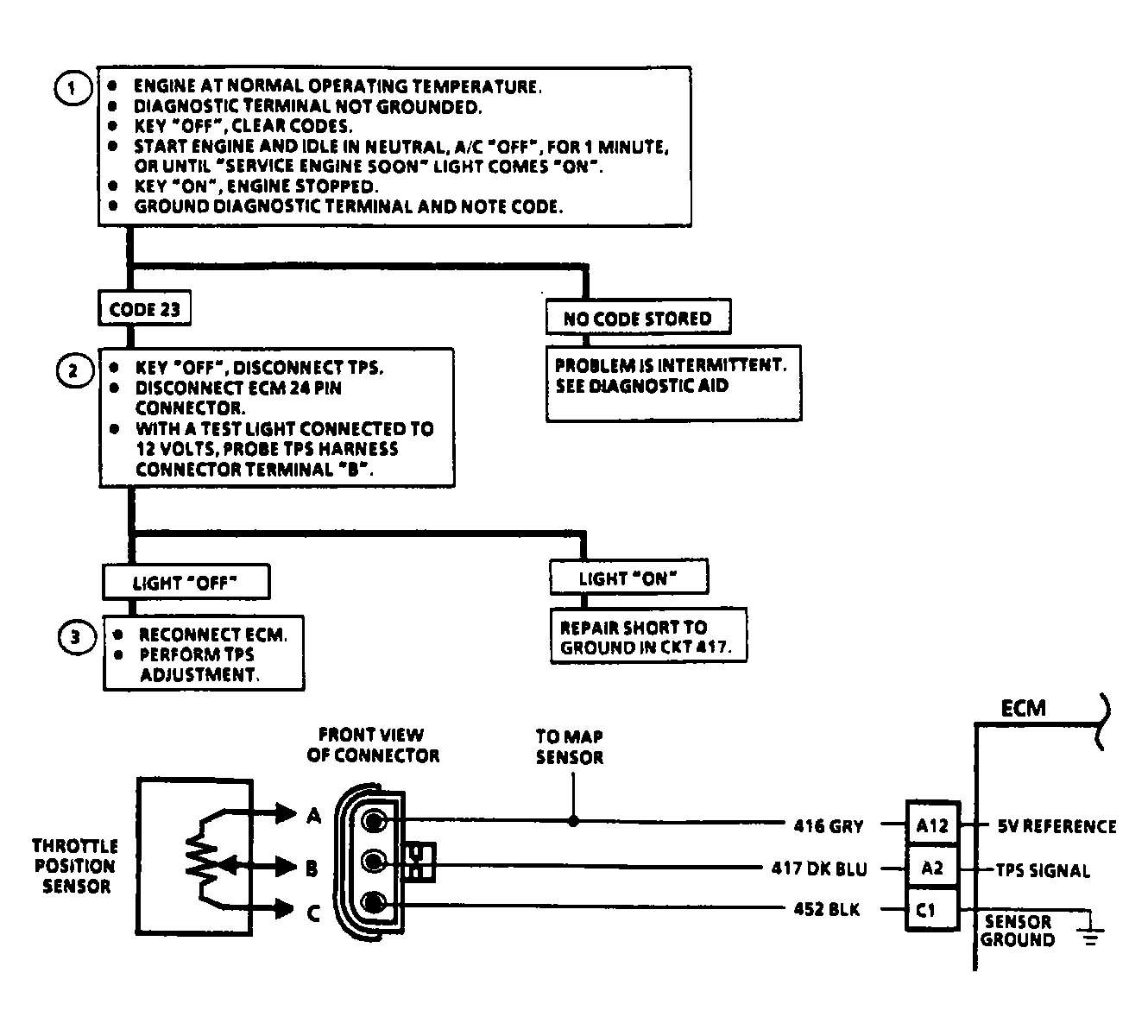

Fig 1: Code 23: Circuit Diagram & Flow Chart TPS Misadjusted
G90A13979
