Hold-In Windings: Notes

  1. Connect an ammeter, voltmeter, carbon pile and battery into starter circuit. See Fig 1. Using carbon pile, decrease battery voltage to 10 volts.
  2. Refer to SOLENOID HOLD-IN WINDING SPECIFICATIONS TABLE for correct amperage reading. A higher reading indicates windings are shorted or grounded; a lower reading indicates excessive resistance.
SOLENOID HOLD-IN WINDING SPECIFICATIONS

Part No. Amps Volts
1114520 13-19 10
1114530 13-19 10
1114563 14-18 10
10469039 13-15 10

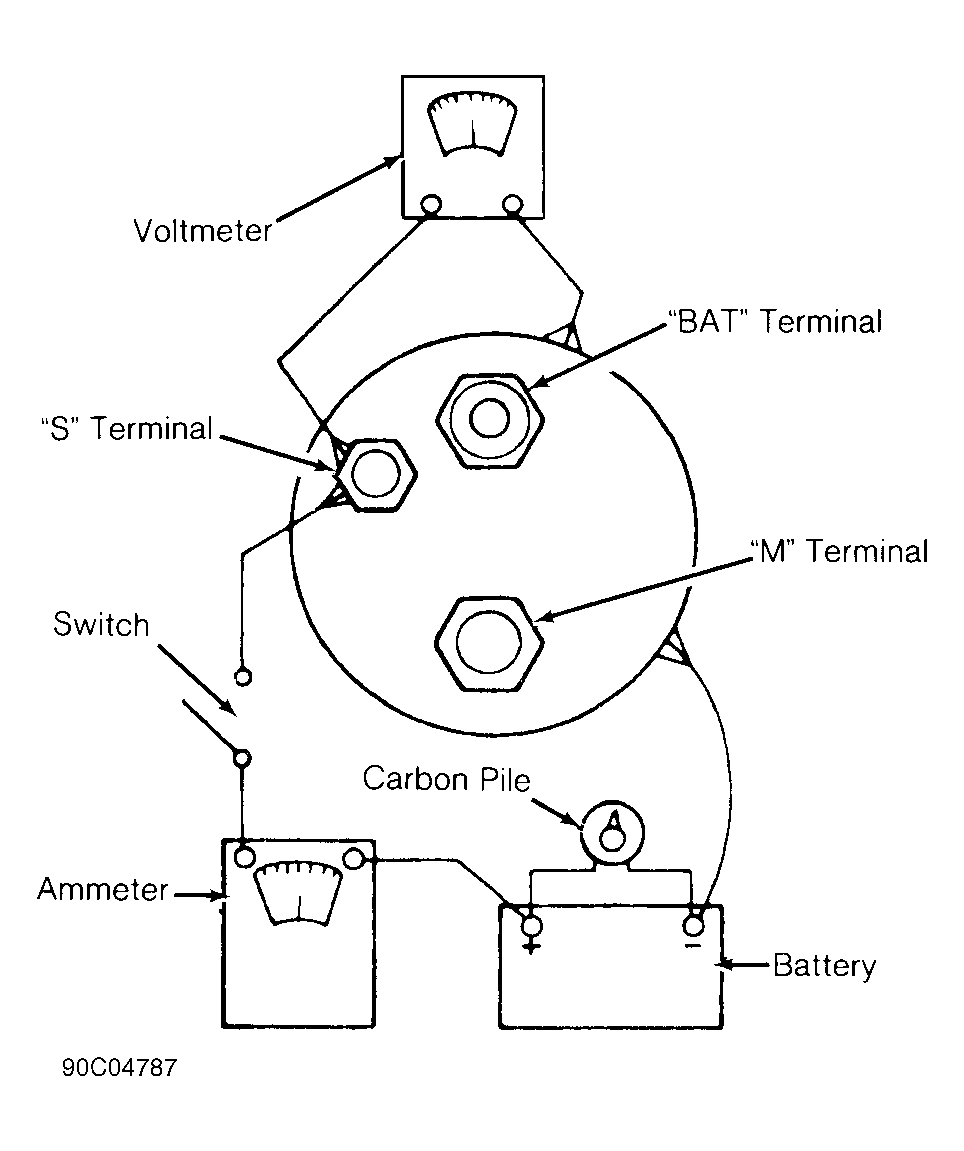

Fig 1: Testing Solenoid Hold-In Windings
G90C04787Courtesy of GENERAL MOTORS CORP.
