Park/Neutral (P/N) Switch

Disconnect P/N switch (located on transmission) harness connector. Connect ohmmeter between the P/N switch terminals. See Fig 1. Continuity should be present only when gear shift selector is in Park or Neutral. If continuity is not present, check P/N switch adjustment or replace defective P/N switch.

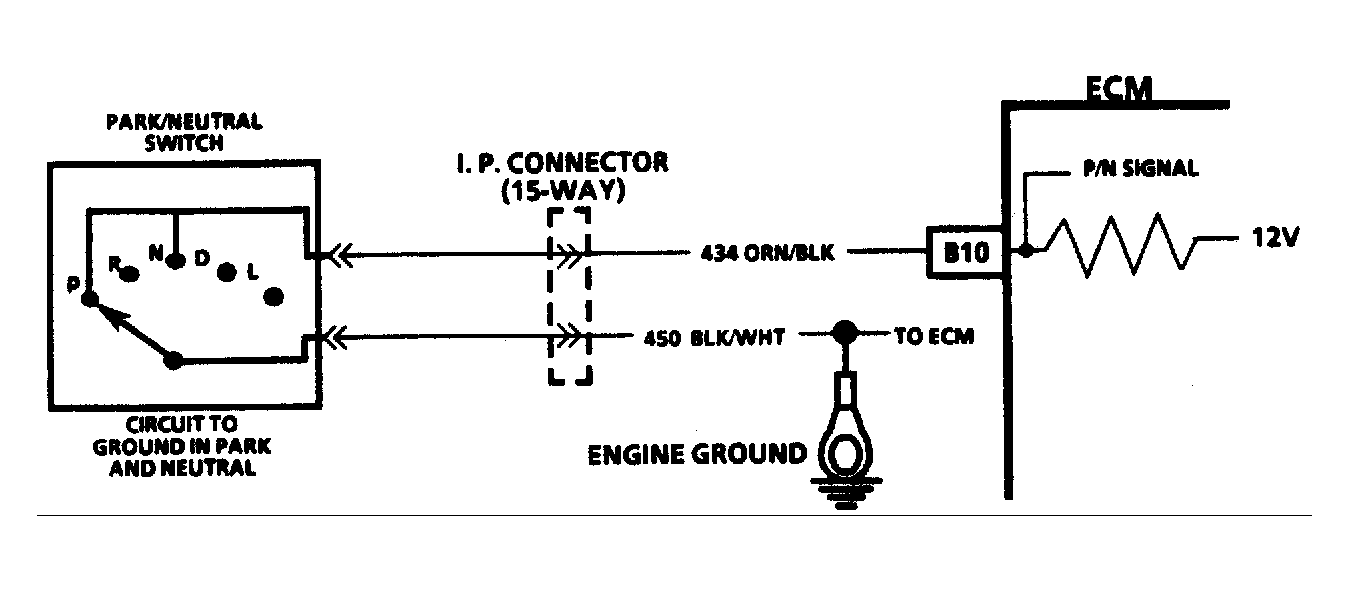

Fig 1: Typical P/N Switch Circuit

Courtesy of GENERAL MOTORS CORP.
