"T" Series

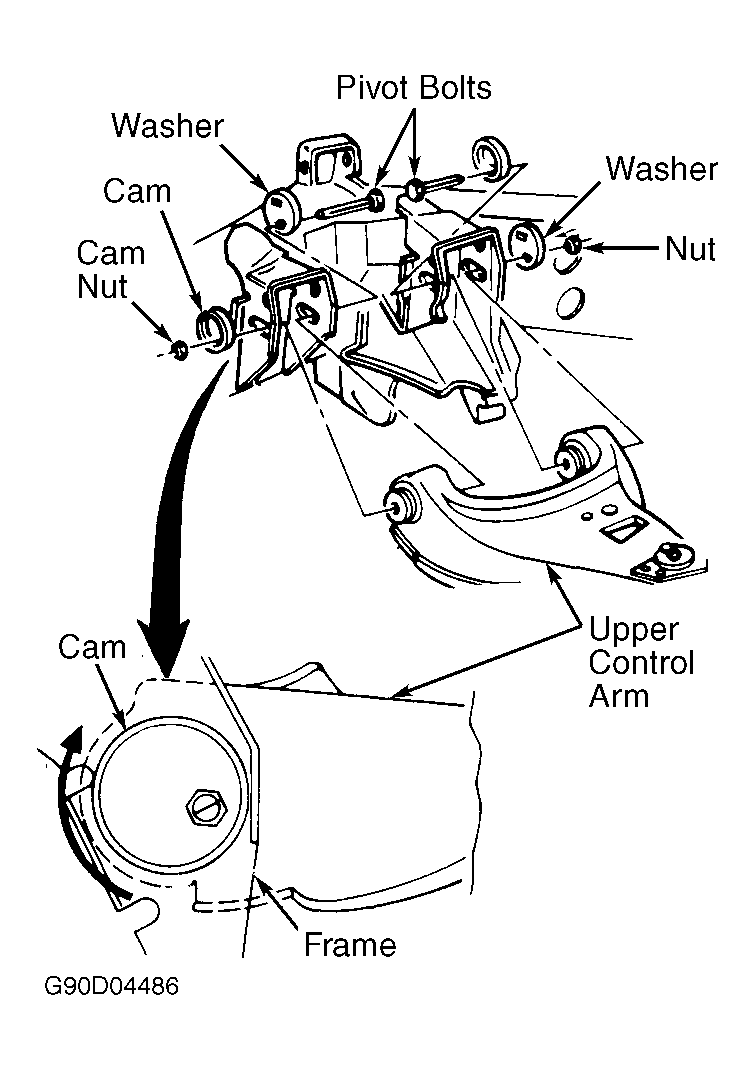

Caster and camber adjustments are made by means of cams on upper control arm frame attaching bolts. See Fig 1. Loosen upper control arm-to-frame attaching nuts. Rotate cam by rotating bolt head. Adjust caster and camber to specification. See WHEEL ALIGNMENT SPECIFICATIONS .
Tighten nuts to specification. See TORQUE SPECIFICATIONS .
