Jacking & Hoisting

Vehicle may be raised by floor jack or vehicle hoist. Ensure hoist or jack supports vehicle at proper lifting points. See Fig 1-6. If vehicle is to be raised on a twin-post hoist, use caution not to damage suspension, rear axle cover and/or steering linkage components.

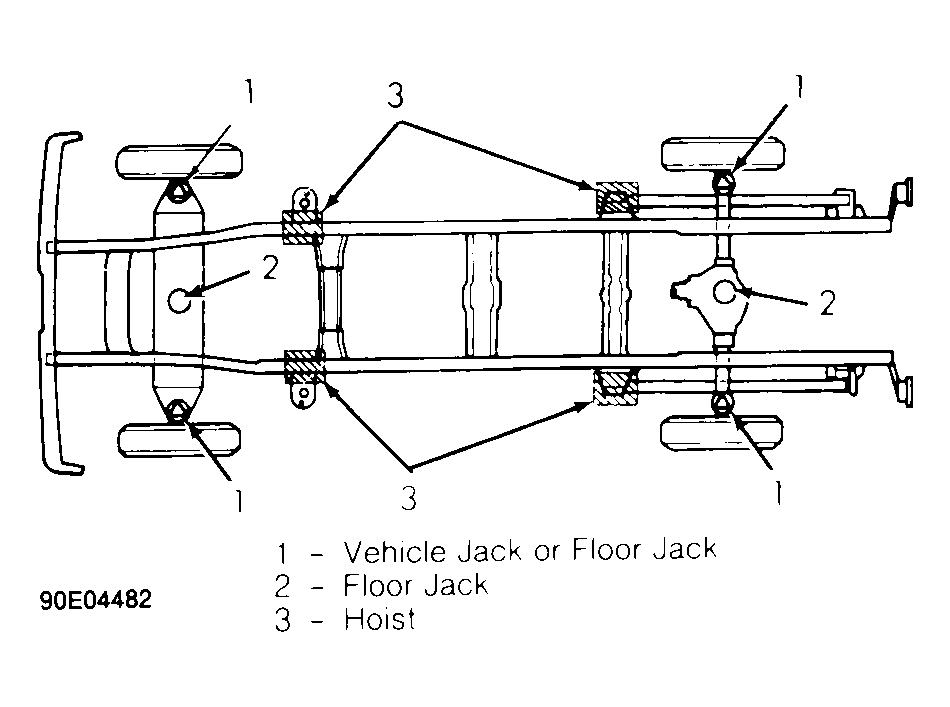

Fig 1: Hoisting & Jacking Locations (Astro, Safari, S & T Series)

Courtesy of GENERAL MOTORS CORP.

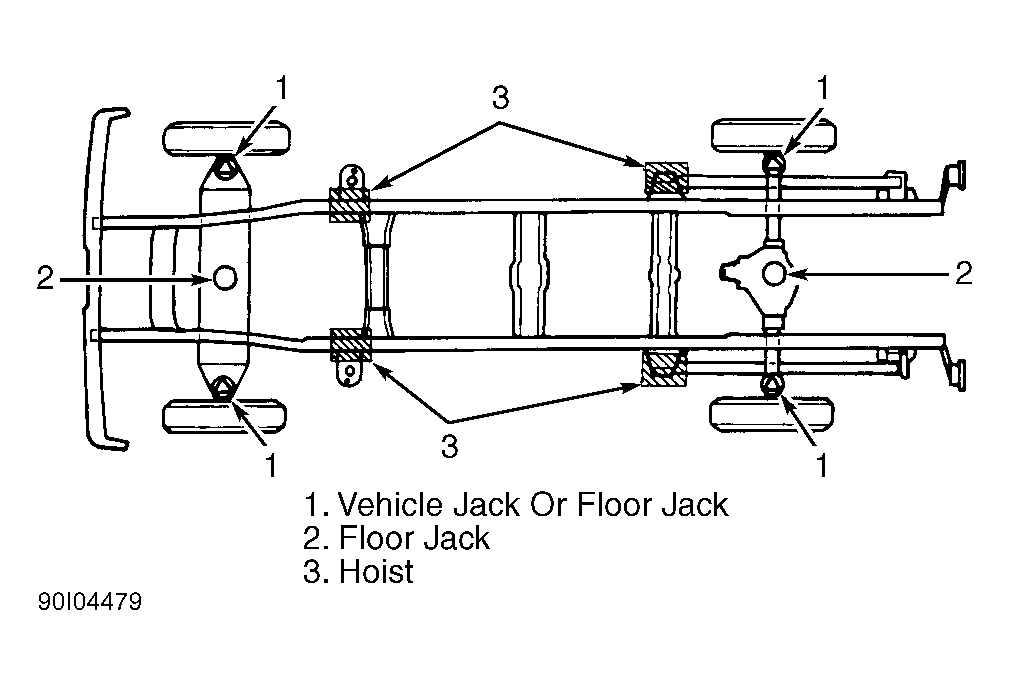

Fig 2: Hoisting & Jacking Locations ("C" & "K" Series)

Courtesy of GENERAL MOTORS CORP.

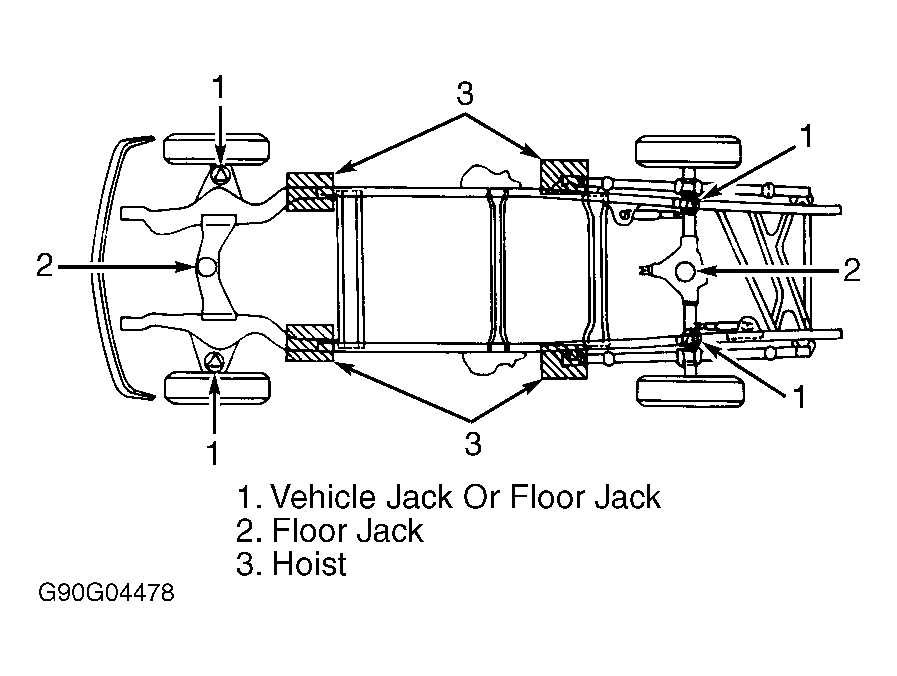

Fig 3: Hoisting & Jacking Locations ("G" Series)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Hoisting & Jacking Locations (Lumina APV, Silhouette & Trans Sport)

Courtesy of GENERAL MOTORS CORP.

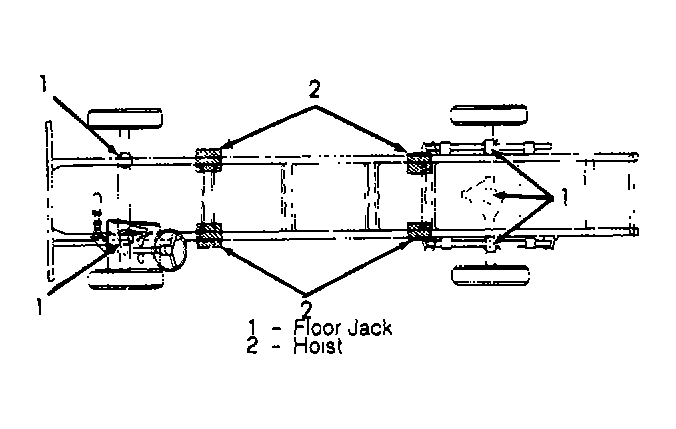

Fig 5: Hoisting & Jacking Locations ("P" Series)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Hoisting & Jacking Locations ("R" & "V" Series)

Courtesy of GENERAL MOTORS CORP.
