Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | ||
| Daytime Running Lights (DRL) | In fuse block. | |
| Power Accessories | In convenience center. | |
| Power Windows | In convenience center. | |
| Rear Window Defogger | In convenience center. | |
| Convenience Center | Under right side of dash. | |
| Fuse Block | ||

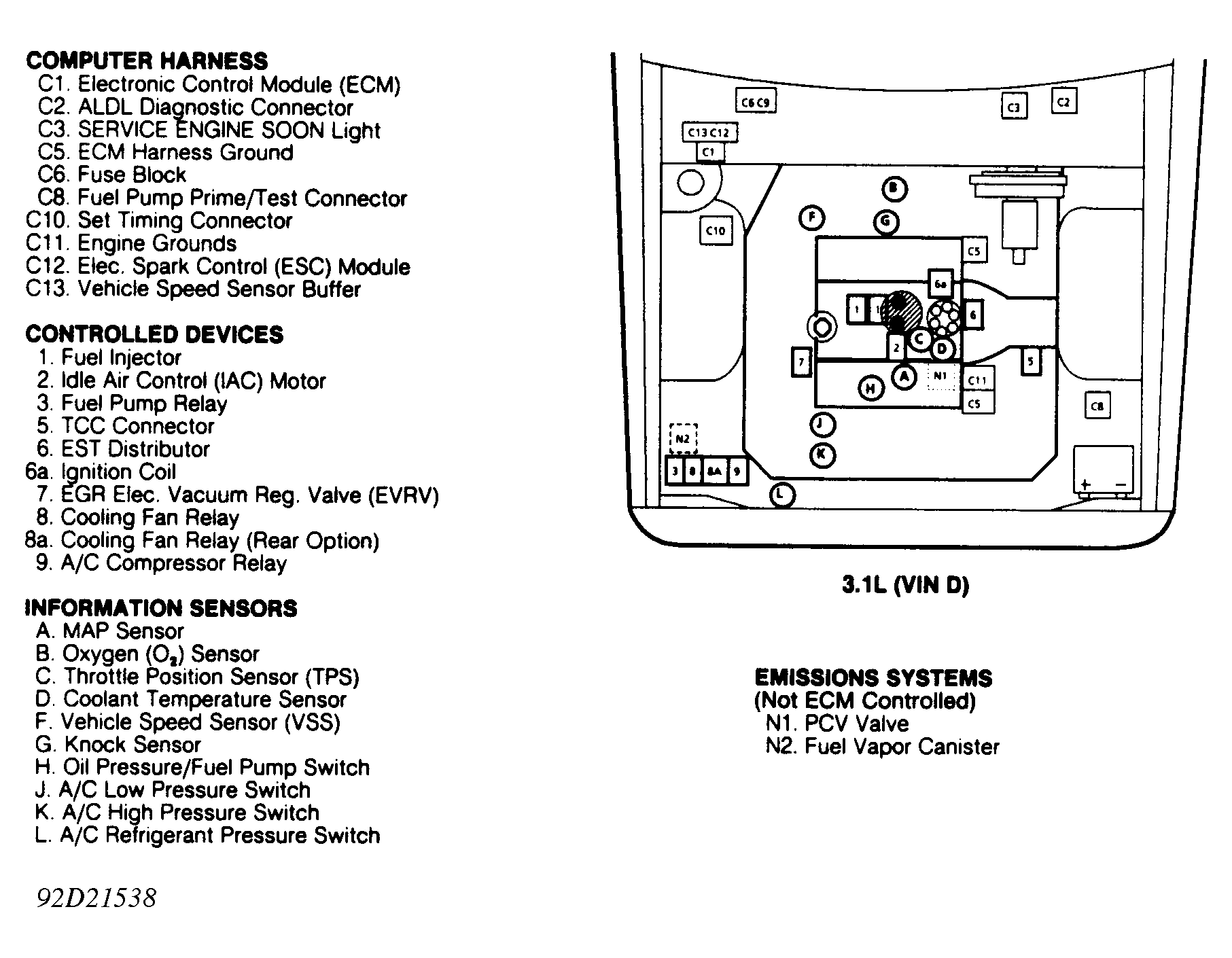

| 3.1L (VIN D) | Behind glove box door. See Figure . | |
| 3.8L (VIN L) | Behind glove box door. See Figure . | |
| Fusible Links | ||
| "A" (Rust) ABS Relay | On ABS enable relay. | |
| "B" (Rust) ECM | On starter solenoid. | |
| "C" (Rust) ECM | On ABS enable relay. | |
| "H" (Rust) Alternator | On starter solenoid. | |
| "J" (Rust) Cooling Fan Relay | On starter solenoid. | |
| "V" (Rust) Cooling Fan Relay | On ABS enable relay. | |
| "W" (Rust) Ignition | On ABS enable relay. | |
| "X" (Rust) Blower Hi-Spd. Relay | On ABS enable relay. | |
| "Y" (Rust) DRL Circuit Breaker | On ABS enable relay. | |
