Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Light Driver Module | Behind parking brake cable bracket. | |
| ABS Module | Behind left side of dash, left of brake pedal. | |
| Audio Alarm Module | Under right of dash, on convenience center. | |
| Cruise Control Module | Behind left side of dash, left of steering column. | |
| Daytime Running Lights (DRL) Module | Behind left side of dash, left of steering column. | |
| Electronic Control Module (ECM) | ||

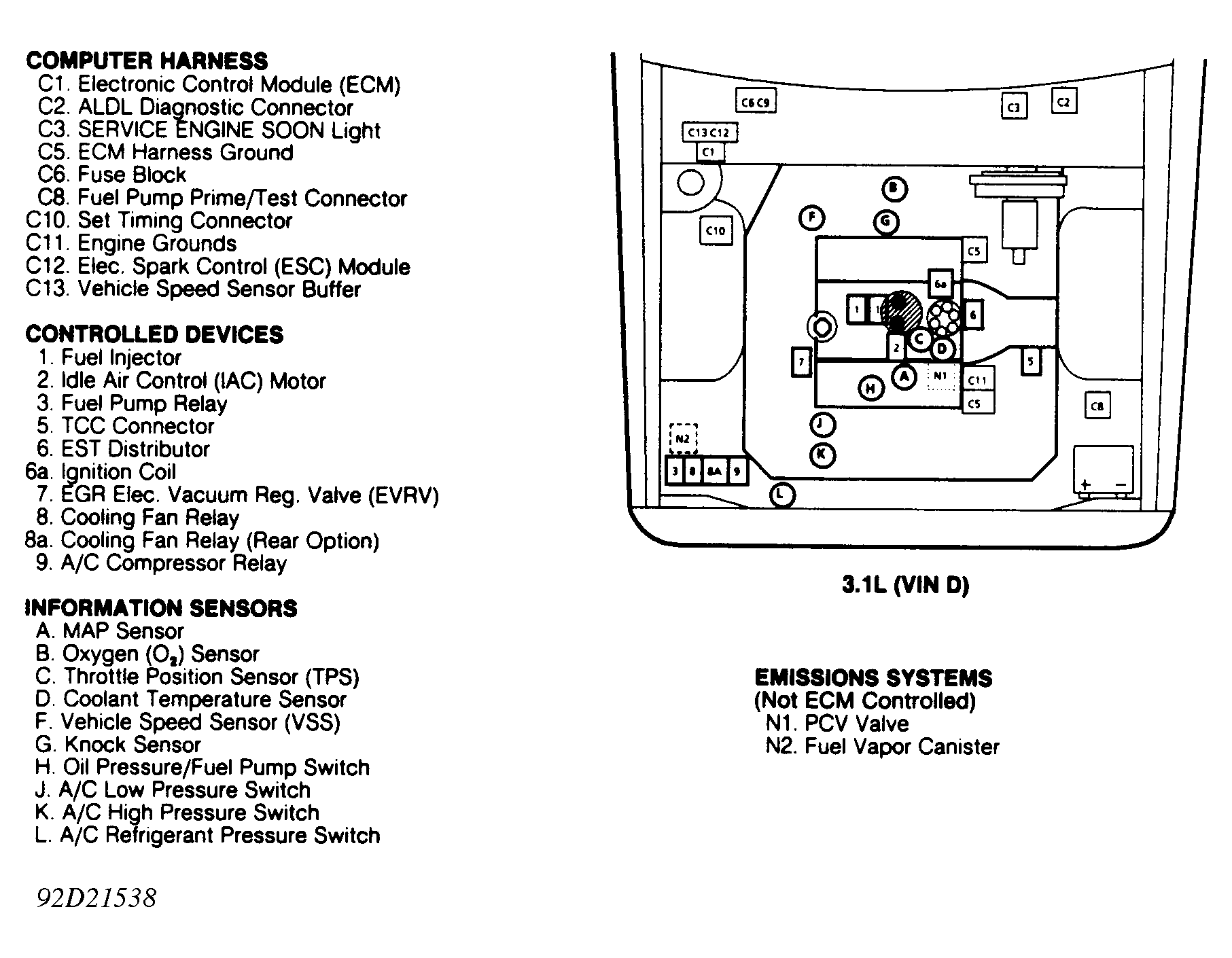

| 3.1L (VIN D) | Under right side of dash, behind convenience center. See Figure . | |

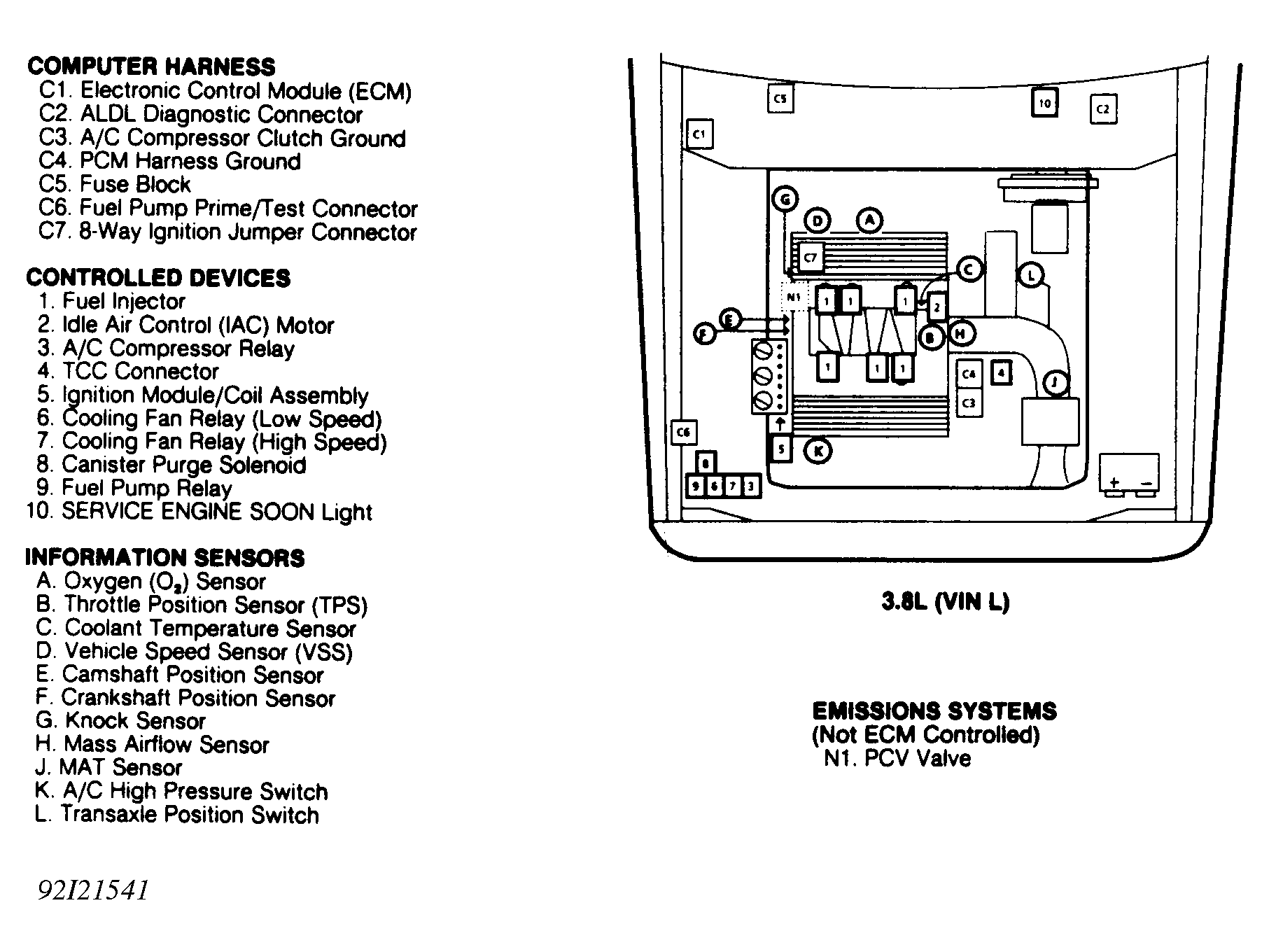

| 3.8L (VIN L) | Under right side of dash, behind convenience center. See Figure . | |
| Elec. Spark Control (ESC) Module | Under right side of dash, above convenience center. See Figure . | |
| Power Sliding Door Lock Module | Near base of right "A" pillar. | |
| Powertrain Control Module (PCM) | Under right side of dash, behind convenience center. | |
| Remote Dimmer Module | Behind dash, left of steering column. | |
| Wiper Motor Module | ||
| Front | In engine compartment, above right wheelwell. | |
| Rear | Behind panel in center of rear liftgate. | |
