Diagnostic Aids

An intermittent TPS output will cause the ECM to receive a false output.

Fig 1: Intake Manifold Tuning Valve Schematic

Courtesy of GENERAL MOTORS CORP.

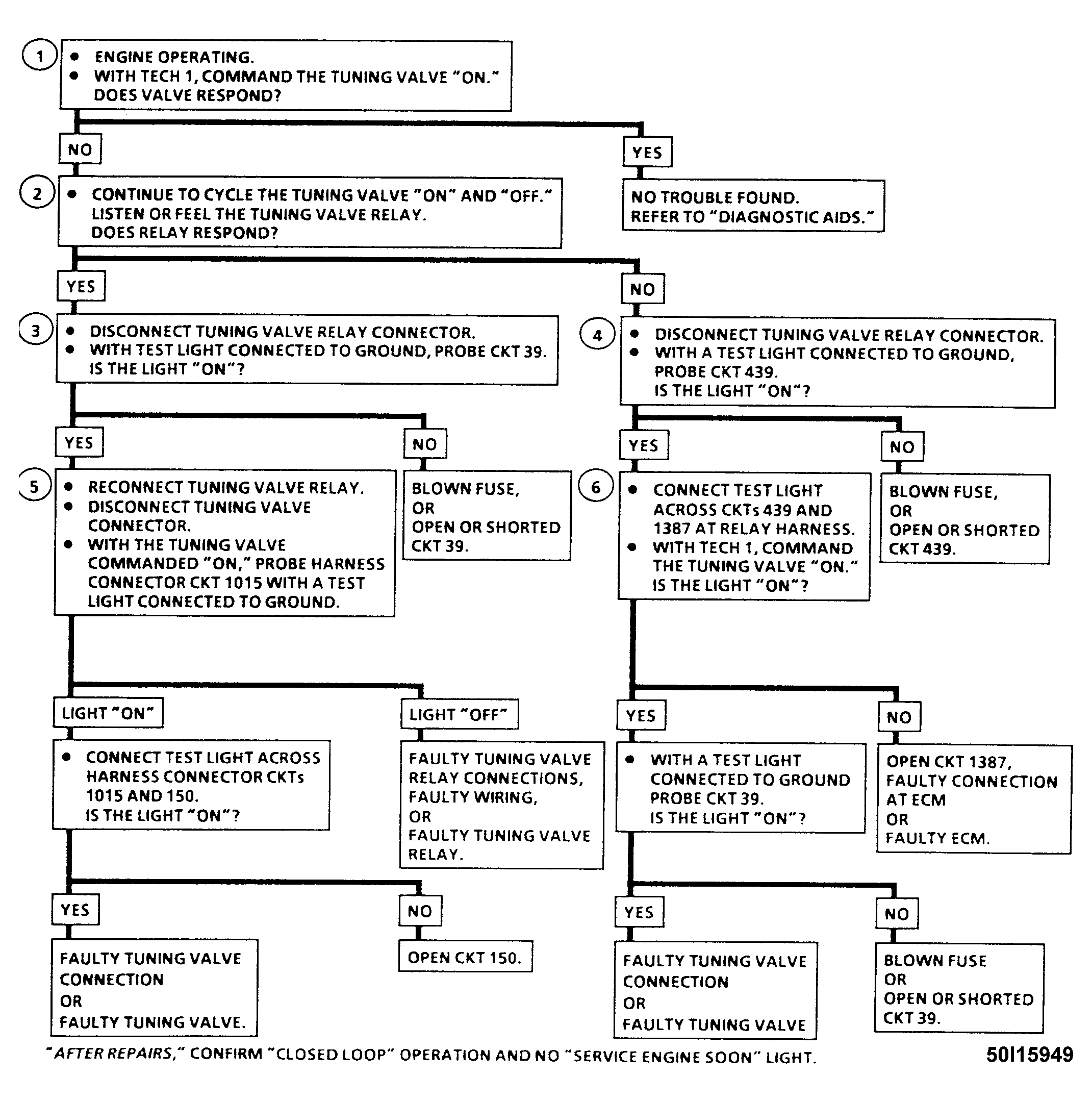

Fig 2: Intake Manifold Tuning Valve Flow Chart

Courtesy of GENERAL MOTORS CORP.
