Jacking & Hoisting: Notes

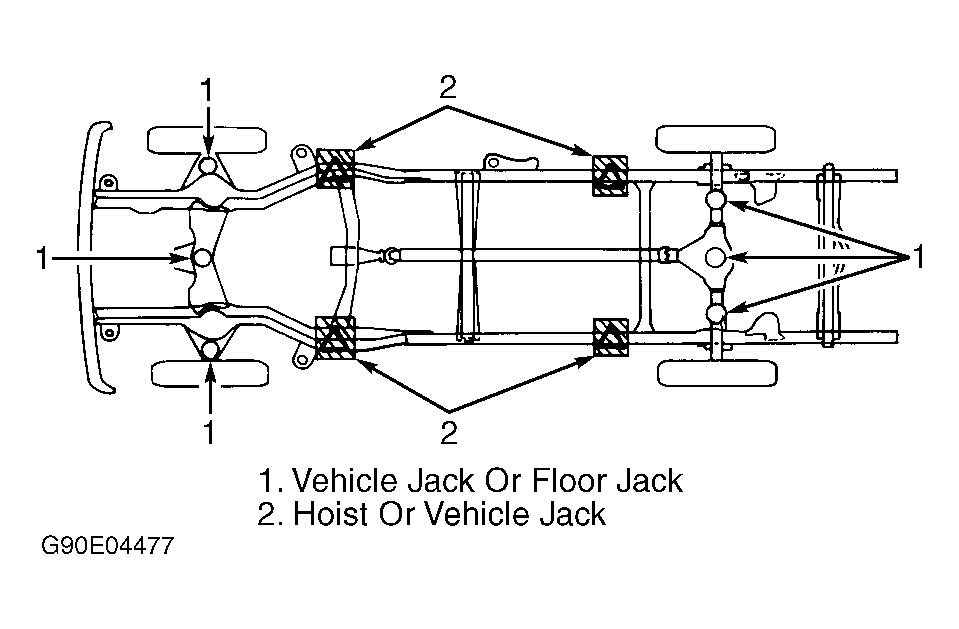

Vehicle may be raised by floor jack or vehicle hoist. Ensure hoist or jack supports vehicle at proper lifting points. See Figure-5. If vehicle is to be raised on a twin-post hoist, use caution not to damage suspension, rear axle cover and/or steering linkage components.
