Wiring Diagrams

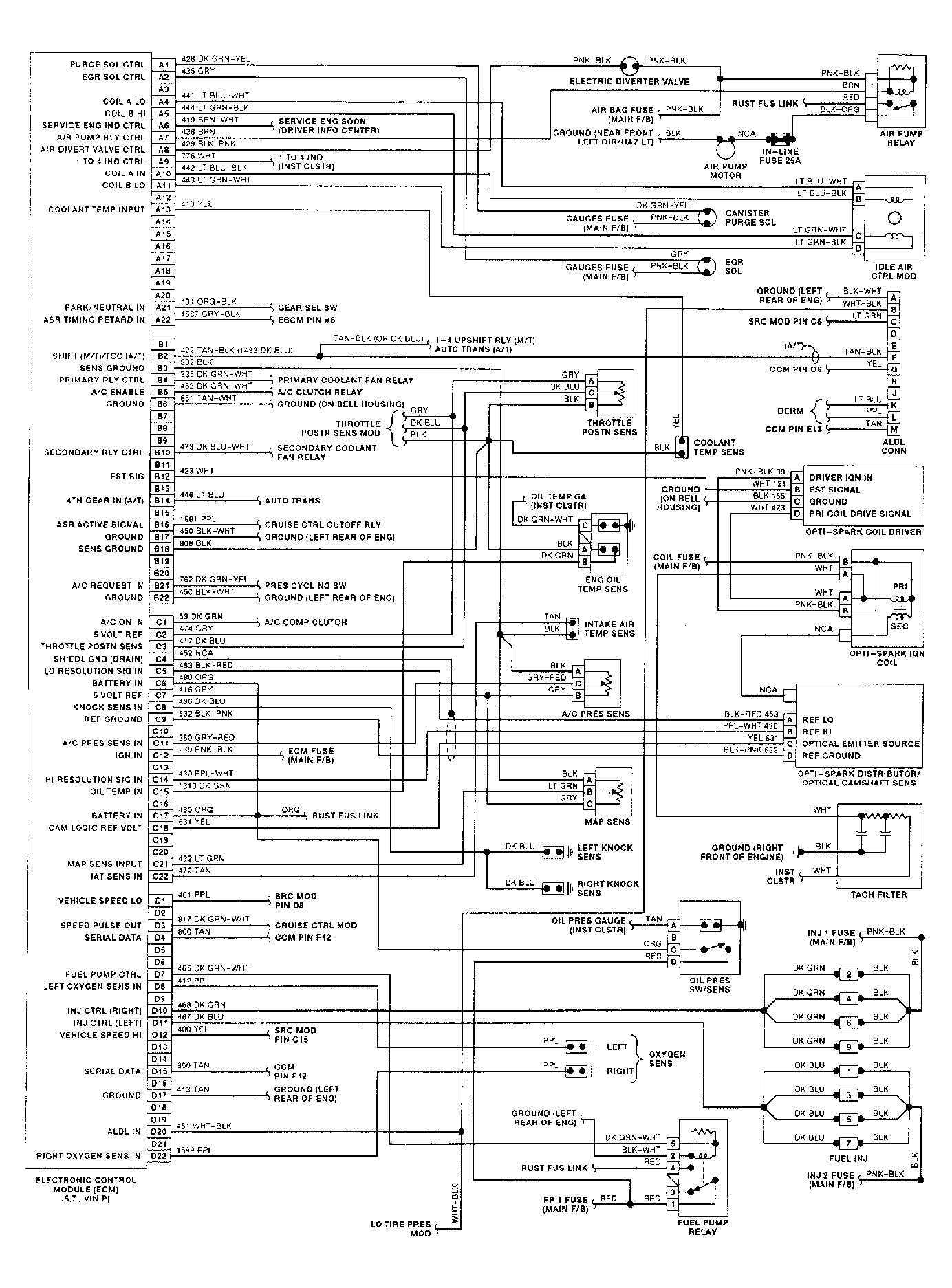

Fig 1: ECM Wiring Diagram, (5.7L VIN P - Corvette)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
