Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Light Driver Module | Behind parking brake cable bracket. | |
| ABS Module | Behind left side of dash, left of brake pedal. | |
| Audio Alarm Module | Under right of dash, on convenience center. | |
| Cruise Control Module | Behind left side of dash, left of steering column. | |
| Daytime Running Lights (DRL) Module | Behind left side of dash, left of steering column. | |
| Electronic Control Module (ECM) (3.1L VIN D) | Under right side of dash, behind convenience center. See Figure . | |
| Keyless Entry Module | Behind right kick panel. | |
| Knock Sensor Module | Under right side of dash, above convenience center. | |
| Power Sliding Door Lock Module | Near base of right "A" pillar. | |

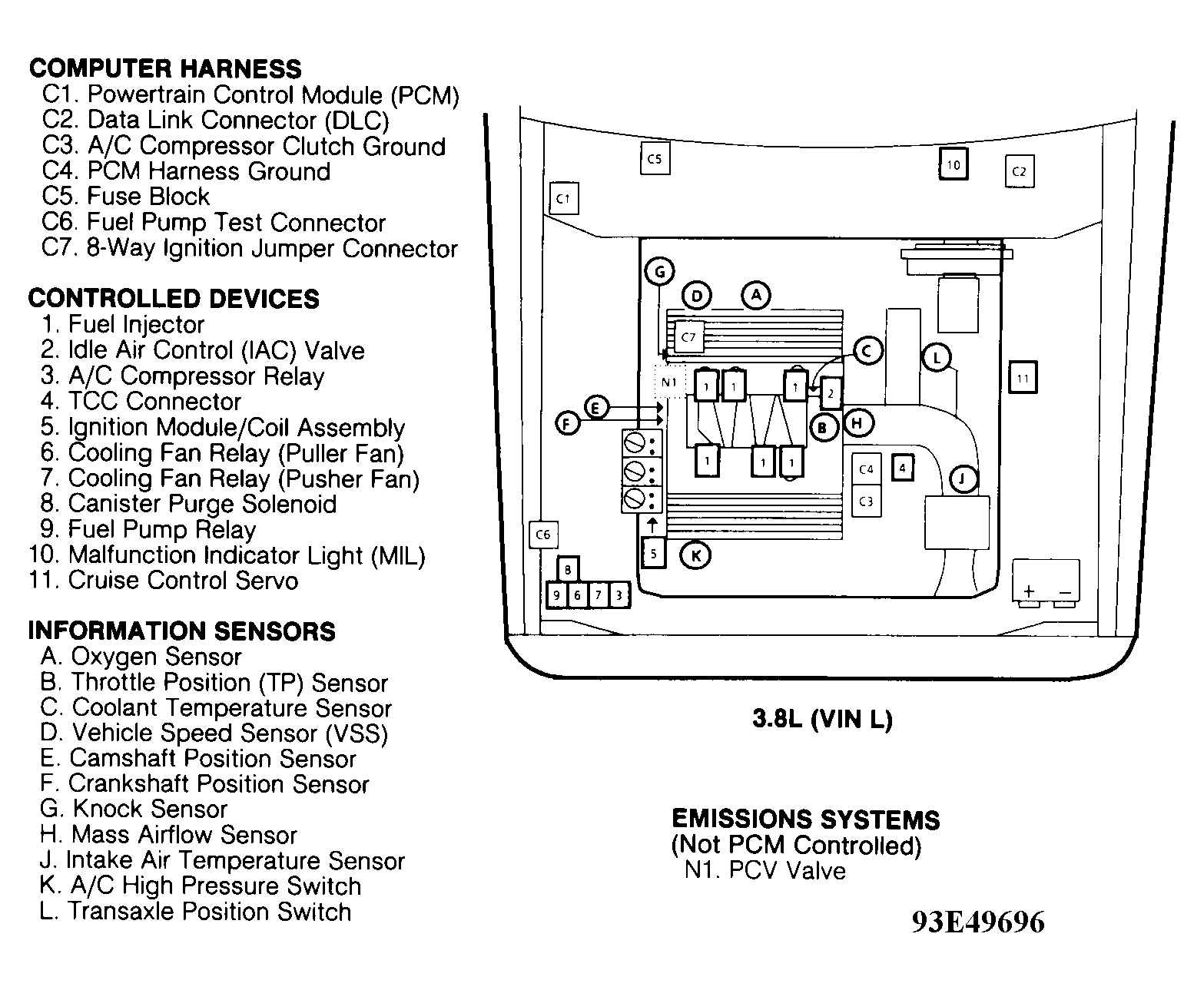

| Powertrain Control Module (PCM) (3.8L VIN L) | Under right side of dash, behind convenience center. See Figure . | |
| Radio Control Interface Module | Behind left lower dash trim pad. | |
| Remote Dimmer Module | Behind dash, left of steering column. | |
| Wiper Motor Module | ||
| Front | In engine compartment, above right wheelwell. | |
| Rear | Behind panel in center of rear liftgate. | |
