Diagnostic Aids

Check for poor connections at PCM and at transmission connector.

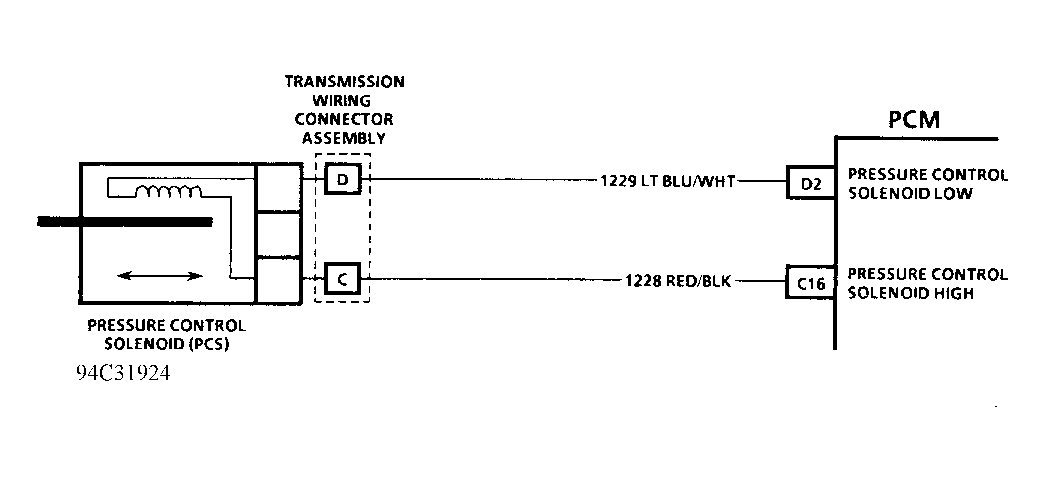

Fig 1: Code 73 Schematic (Corvette) Pressure Control Solenoid
G94C31924

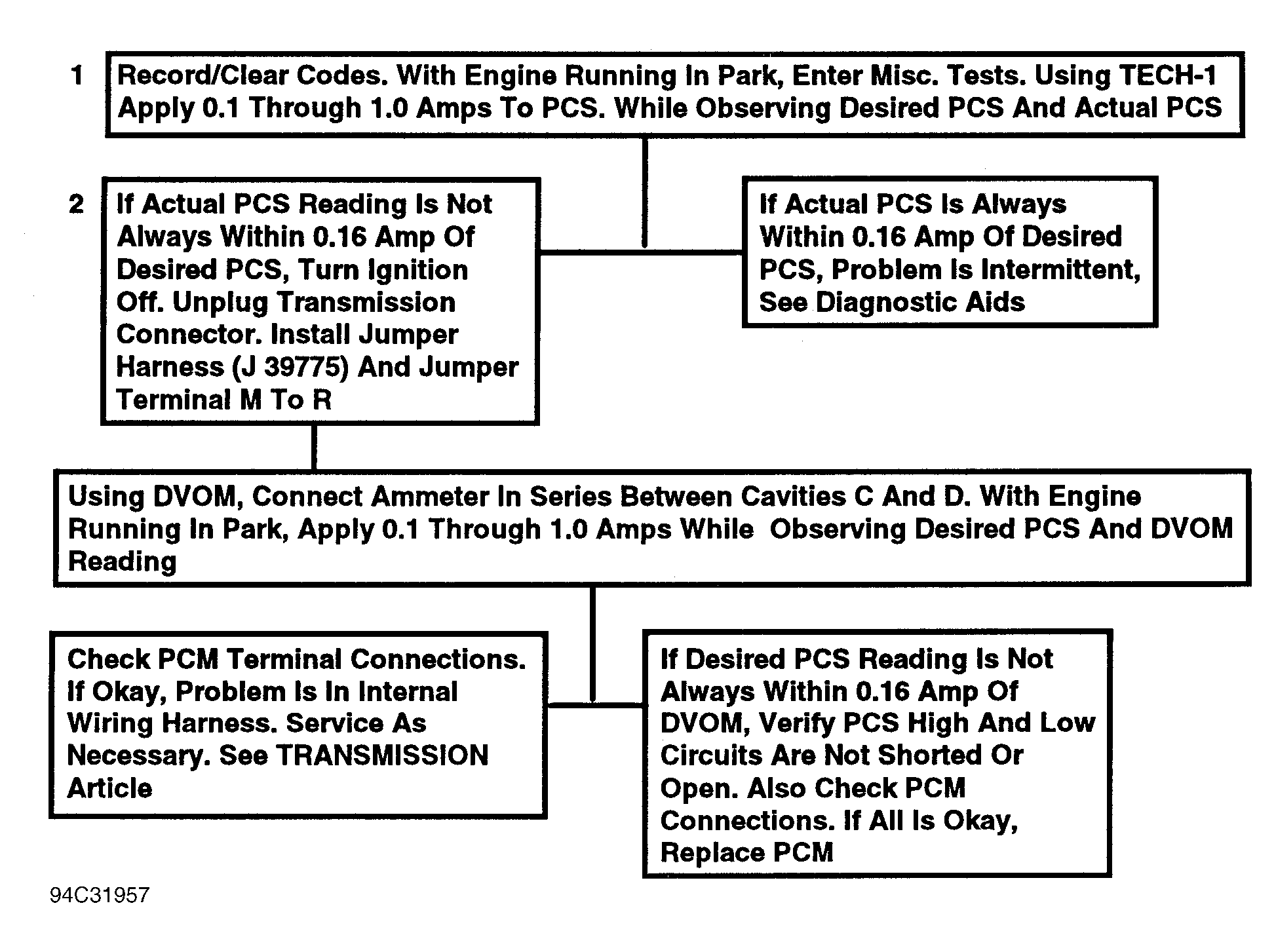

Fig 2: Code 73 Flow Chart (Corvette) Pressure Control Solenoid
G94C31957
