Diagnostic Aids

Check for poor connections at pass-through connector. A faulty transmission range pressure switch assembly may set Code 80.

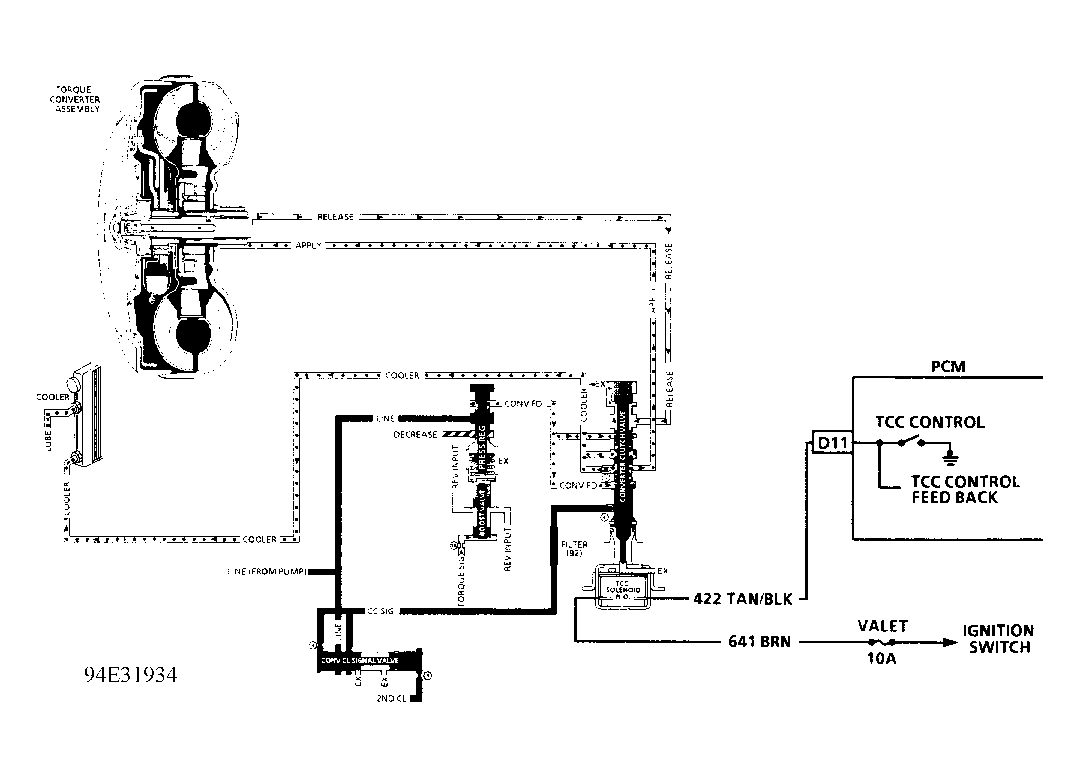

Fig 1: Code 80 Schematic (Corvette) Transmission Component Slipping

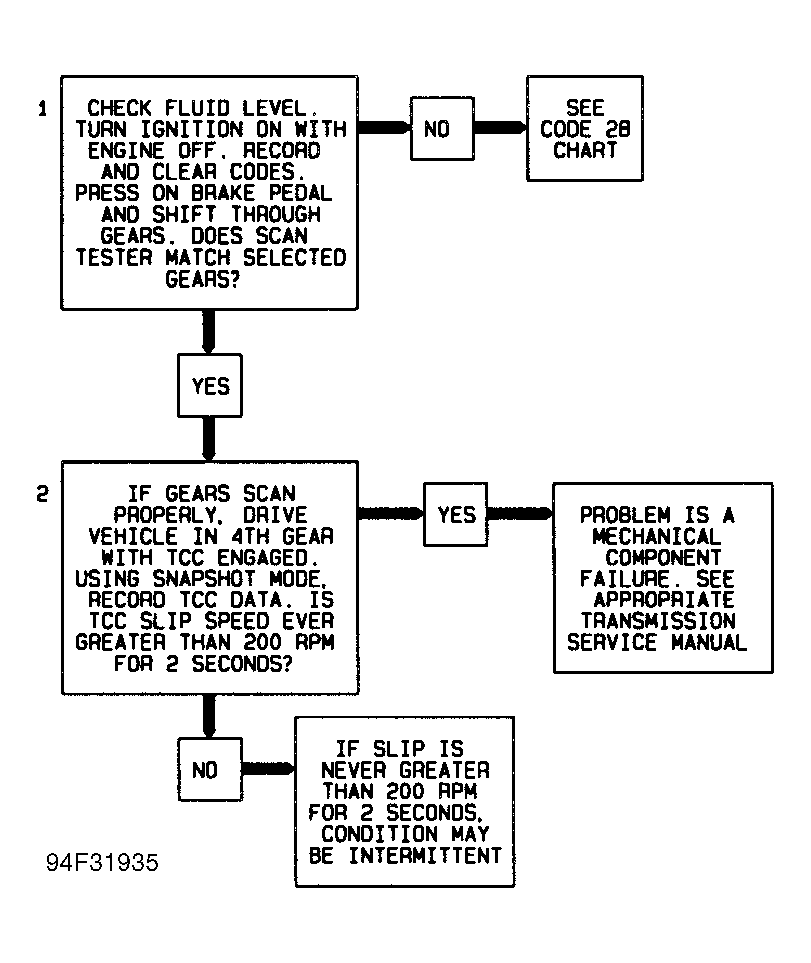

Fig 2: Code 80 Flow Chart (Corvette) Transmission Component Slipping
