Diagnostic Aids

Inspect harness and all related connections, including PCM connections.

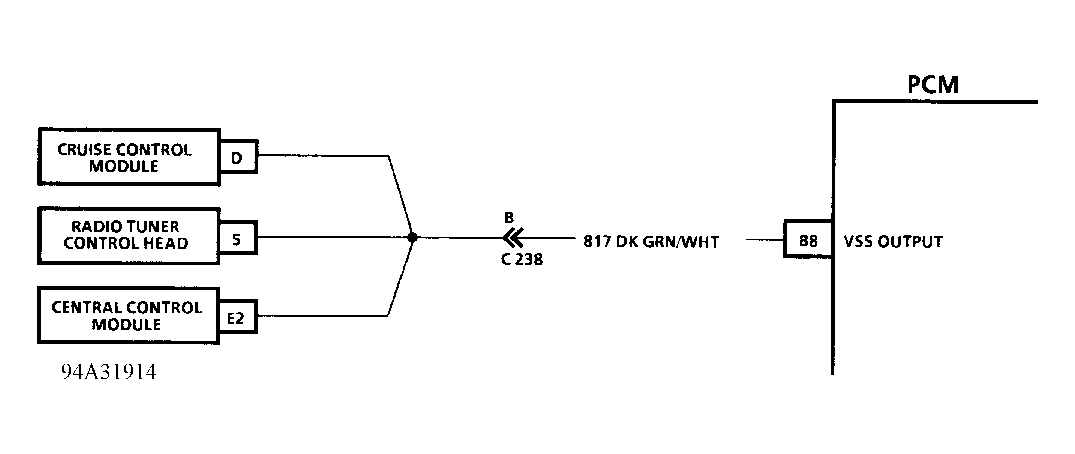

Fig 1: Code 97 Schematic (Corvette) VSS Output Circuit
G94A31914
Fig 2: Code 97 Flow Chart (Corvette) VSS Output Circuit
G94G31969
