Component Locations

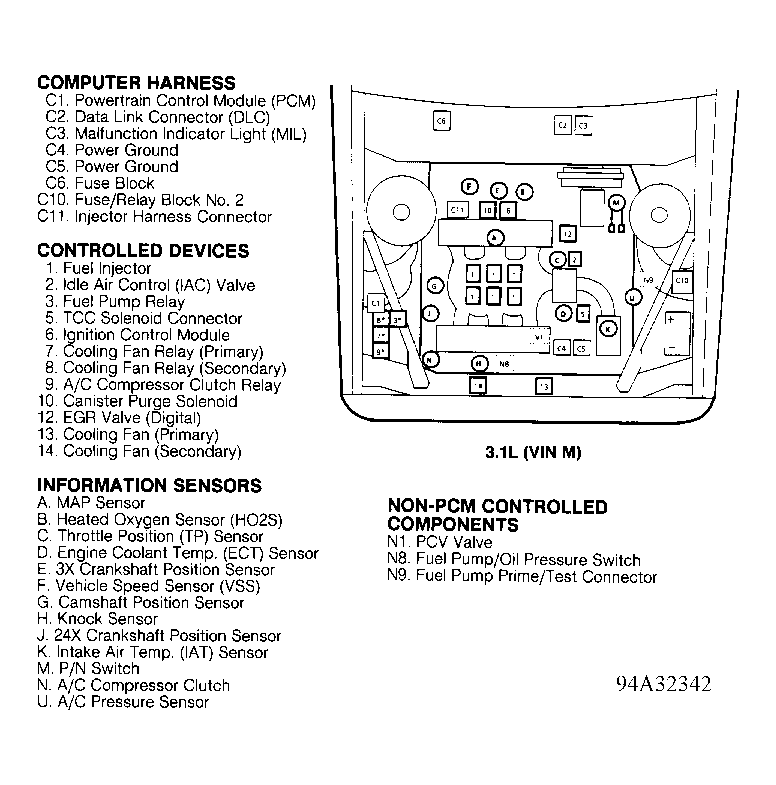

Fig 1: Component Locations (3.1L VIN M)
G94A32342Courtesy of GENERAL MOTORS CORP.

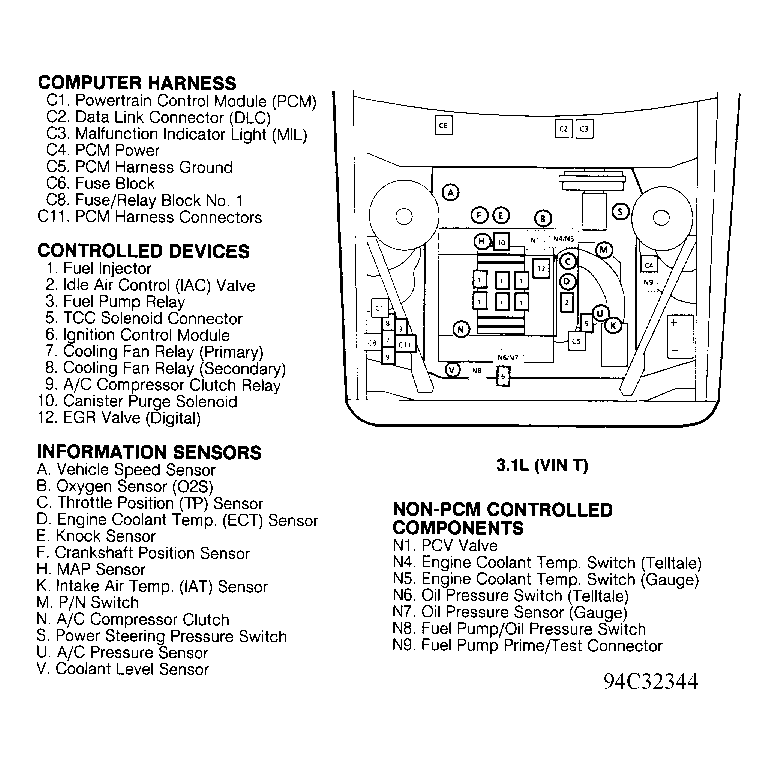

Fig 2: Component Locations (3.1L VIN T)
G94C32344Courtesy of GENERAL MOTORS CORP.
