Test Description
NOTE:

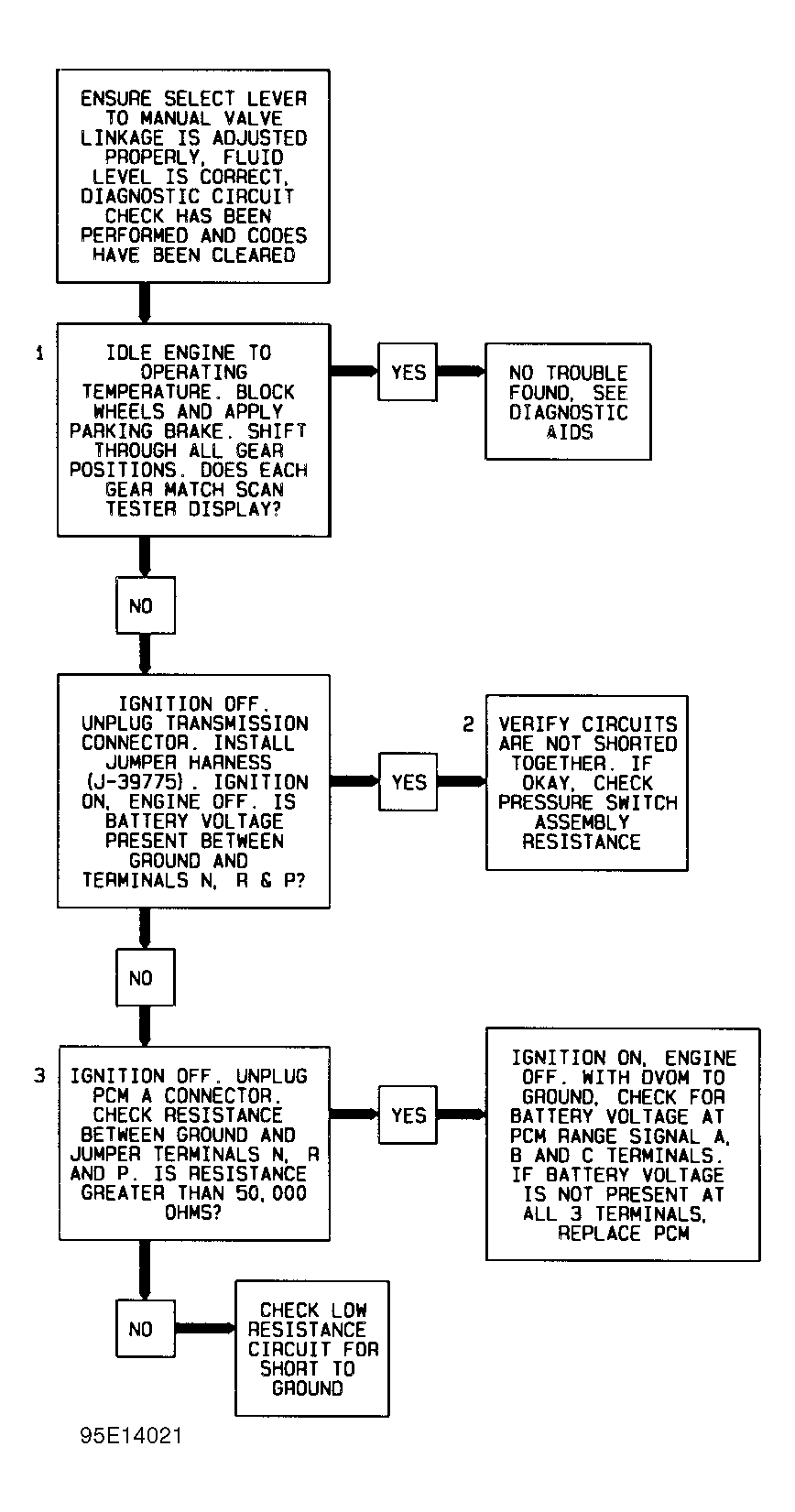

Test numbers refer to numbers on diagnostic chart.
- Checks indicated range signal to valve position signal actually selected.

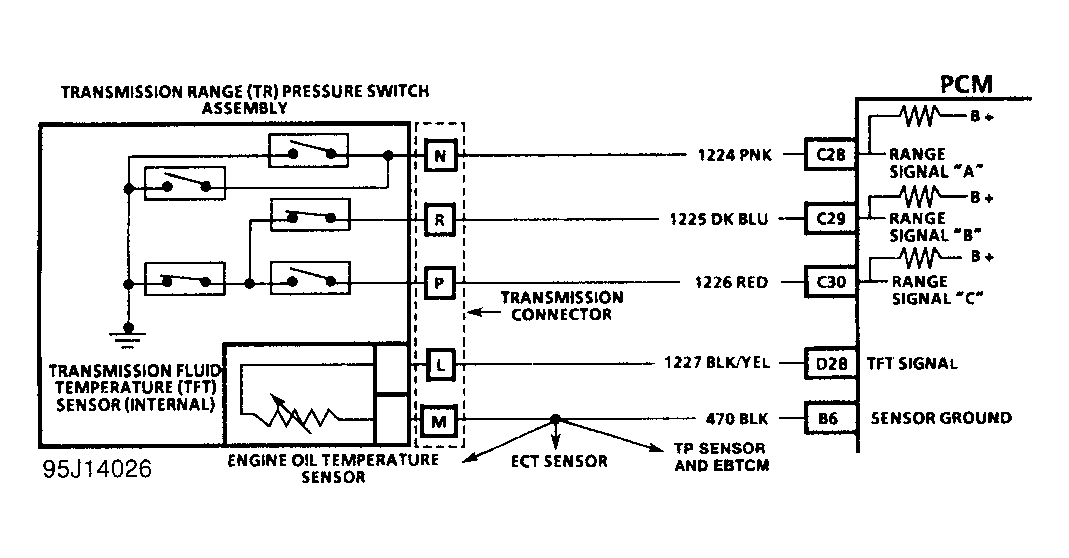

- Checks for correct voltage from PCM to transmission external connector.
- Checks for short to ground in any one of the 3 valve position circuits.
