Test Description

NOTE: Test numbers refer to numbers on diagnostic chart.
  1. Checks ability of the PCM to command pressure control solenoid.
  2. Checks for voltage at PCM.

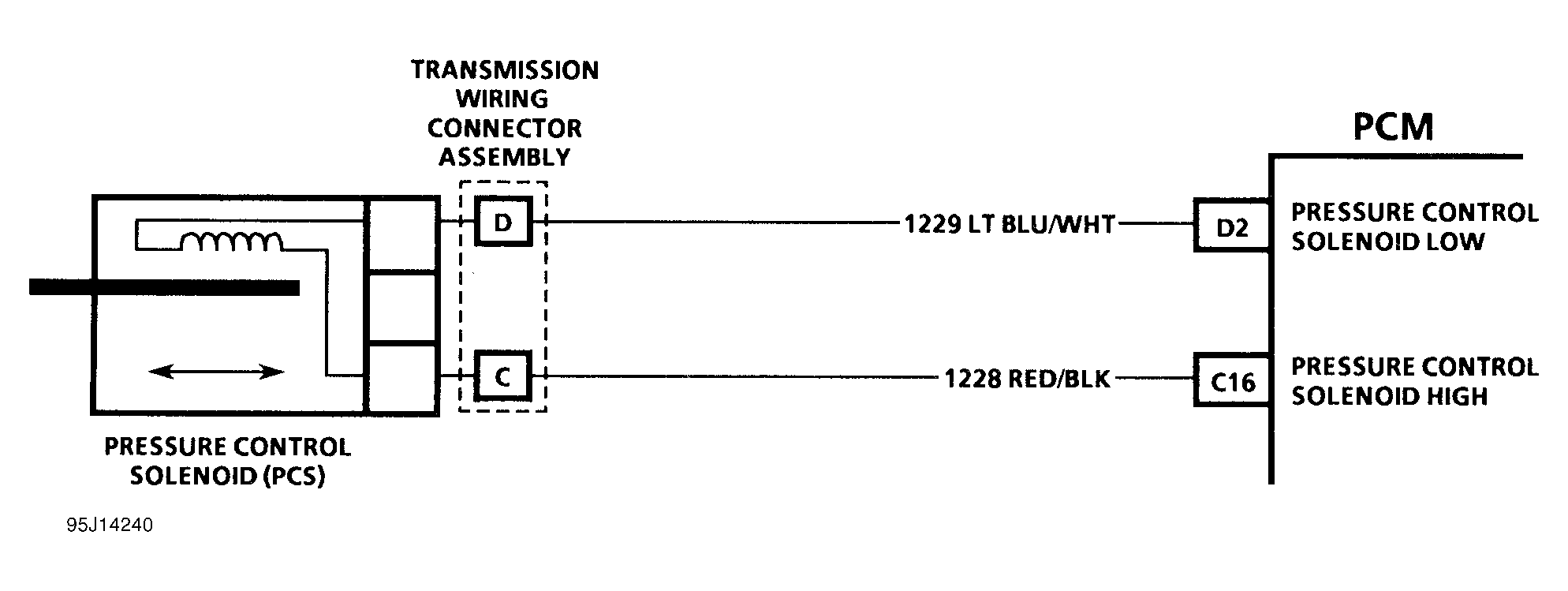

Fig 1: Code 73 Schematic (Corvette) Pressure Control Solenoid
G95J14240

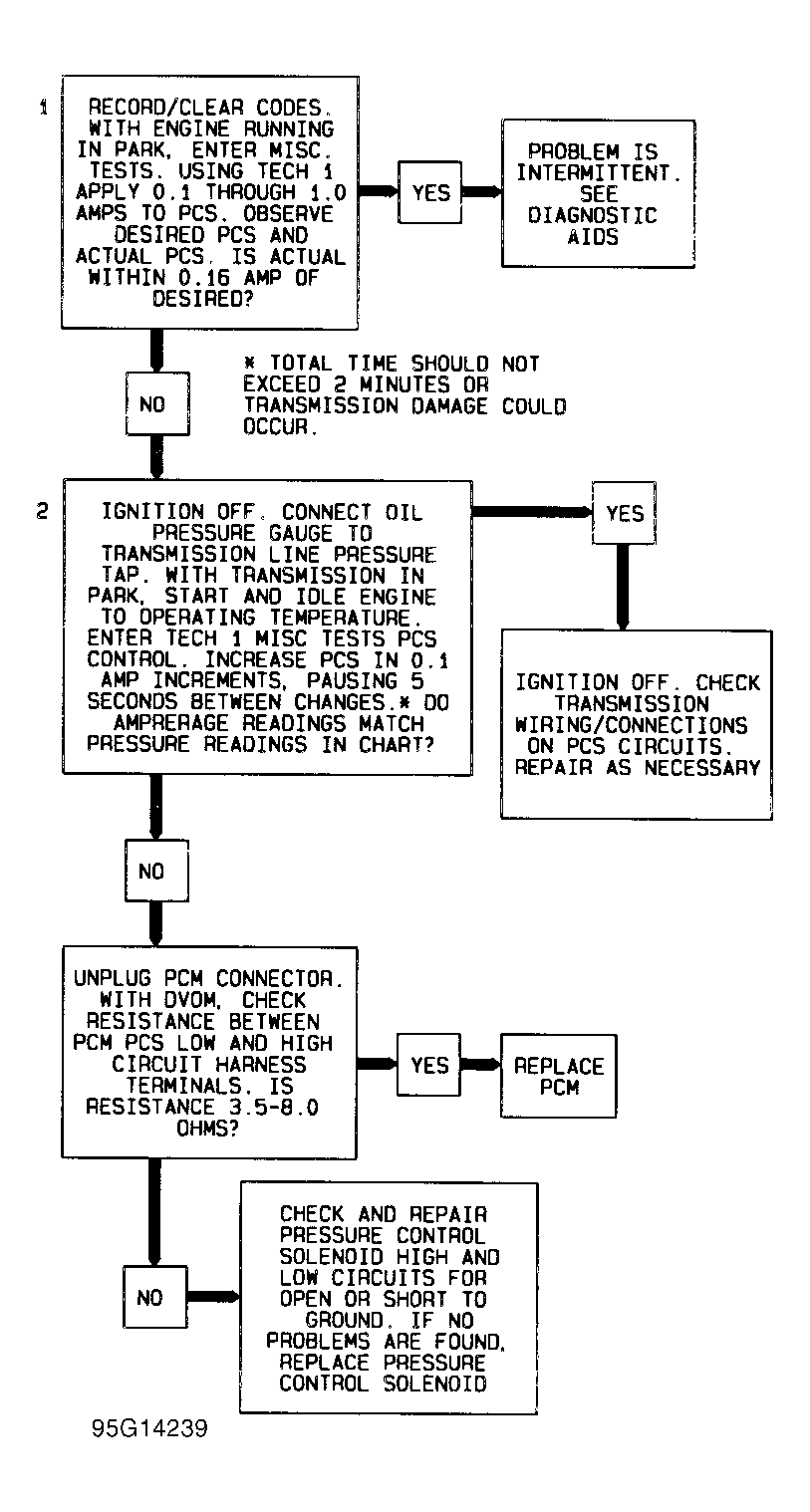

Fig 2: Code 73 Diagnostic Flow Chart (Corvette) Pressure Control Solenoid
G95G14239
