Test Description
NOTE:

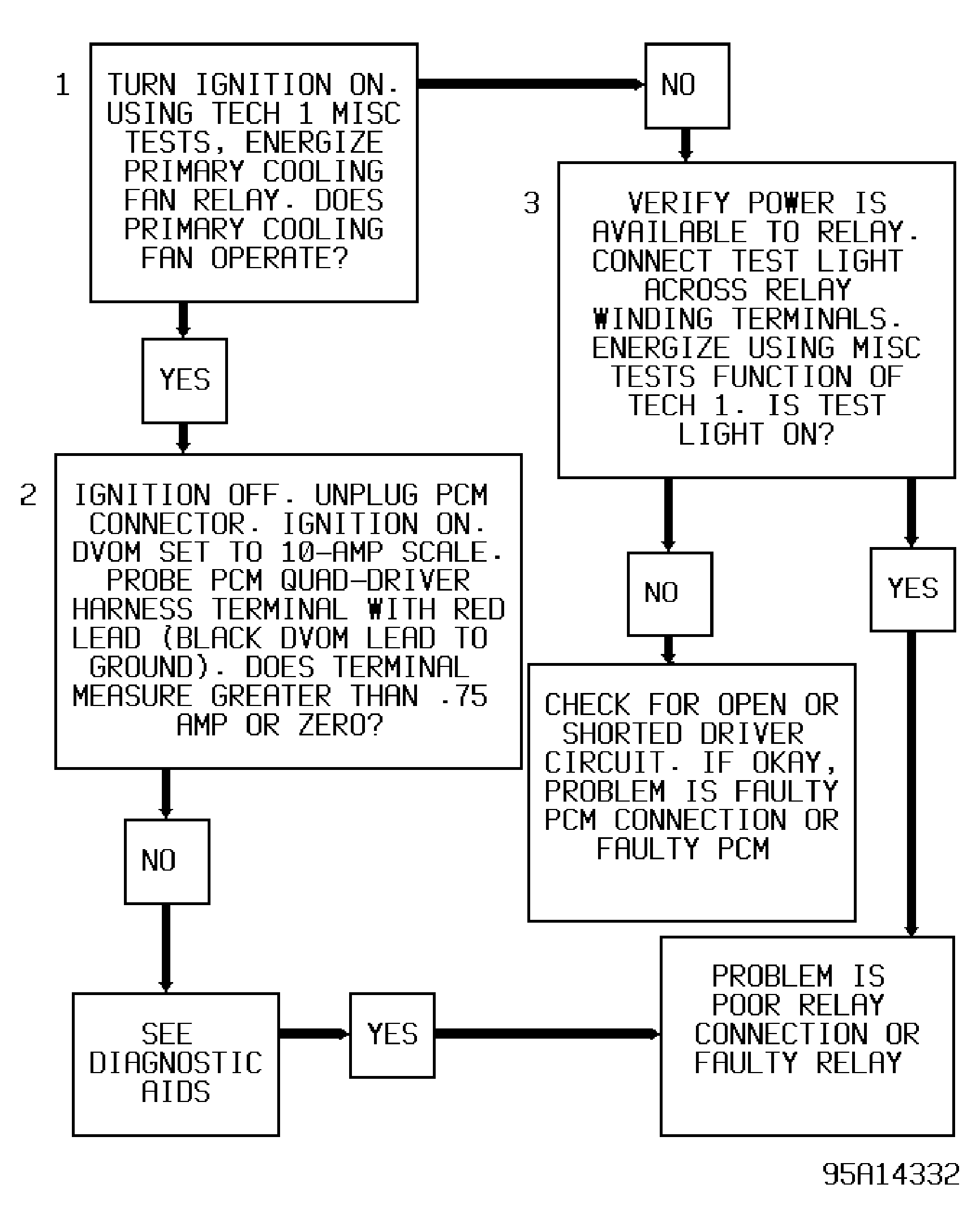

Test numbers refer to numbers on diagnostic chart.
- Even if the fan does not operate, listen for an audible click from relay.
- This check can detect a partially shorted coil which would cause excessive current flow. Excessive current flow to a QDM will be detected as a fault and set a code.
- The remaining checks will identify a circuit problem that has caused an excessive current flow or inoperative relay.
