Test Description

NOTE: Test numbers refer to numbers on diagnostic chart.
  1. Checks for out-of-calibration sensor or shorted circuit. 2 Simulates Code 59.
Fig 1: Code 79 Schematic (Corvette) Transmission Fluid Overtemp
G95J14026

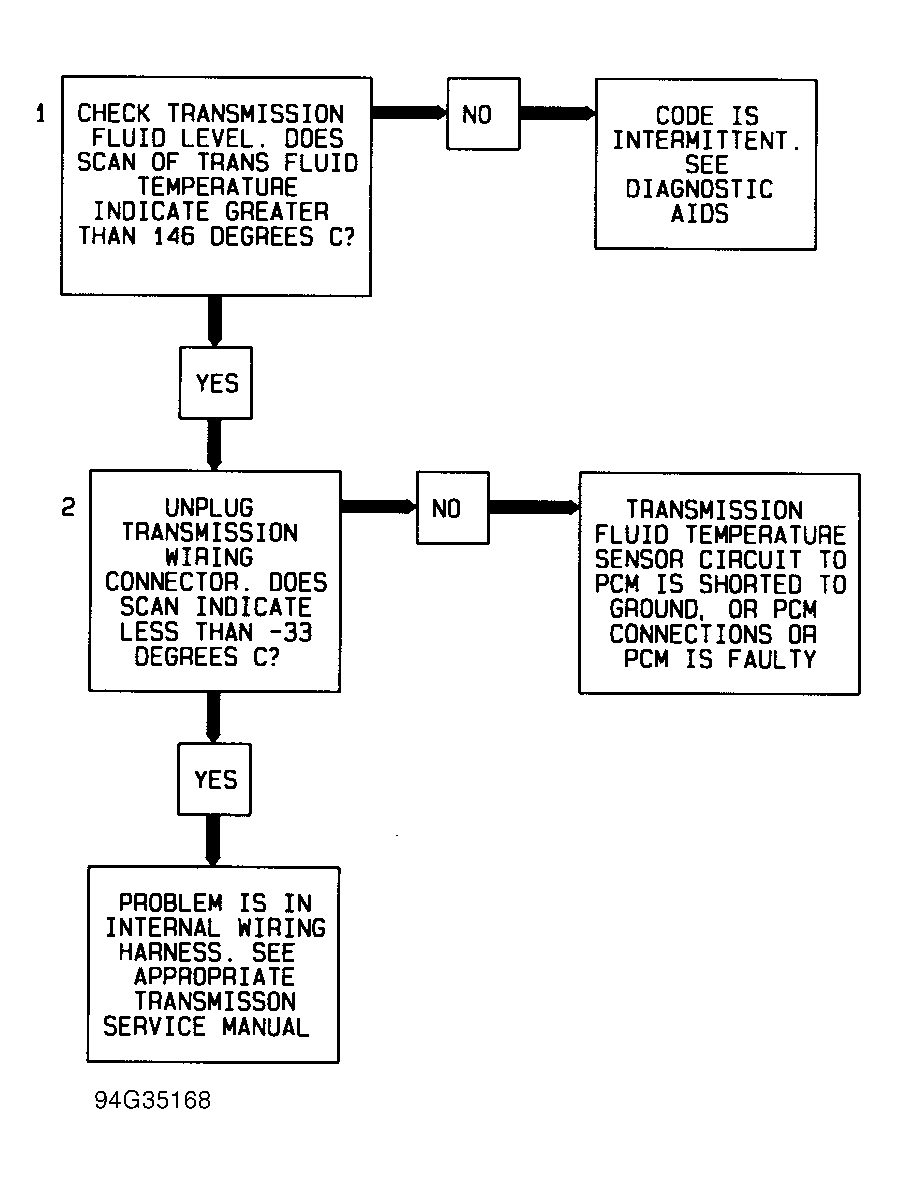

Fig 2: Code 79 Diagnostic Flow Chart (Corvette) Transmission Fluid Overtemp
G94G35168
