Test Description

NOTE: Test numbers refer to numbers on diagnostic chart.
  1. Checks 1-2 shift solenoid and internal transmission for shorts.
  2. Checks for power to 1-2 shift solenoid from ignition through the fuse.

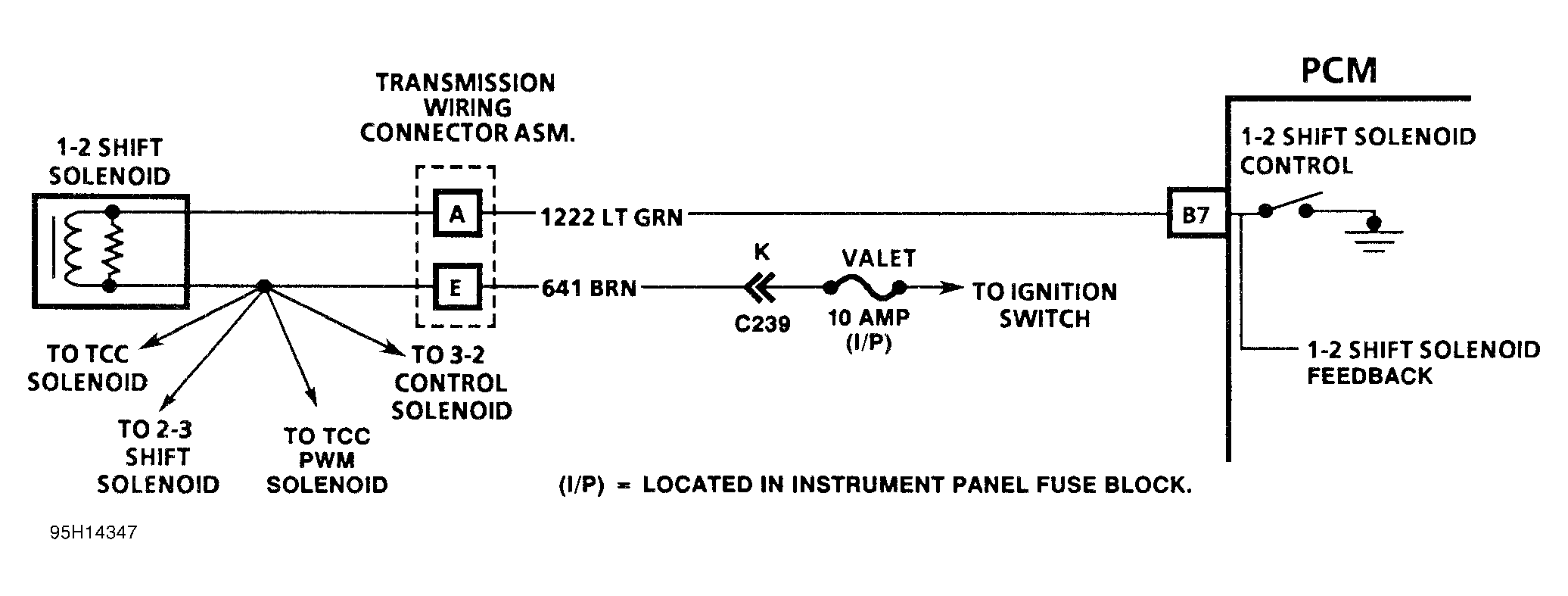

Fig 1: Code 82 Schematic (Corvette) 1-2 Shift Solenoid
G95H14347
Fig 2: Code 82 Diagnostic Flow Chart (Corvette) 1-2 Shift Solenoid
G94H31952
