Test Description

NOTE: Test numbers refer to numbers on diagnostic chart.
  1. Use Jumper Harness (J 35616-A) to prevent damage to harness.

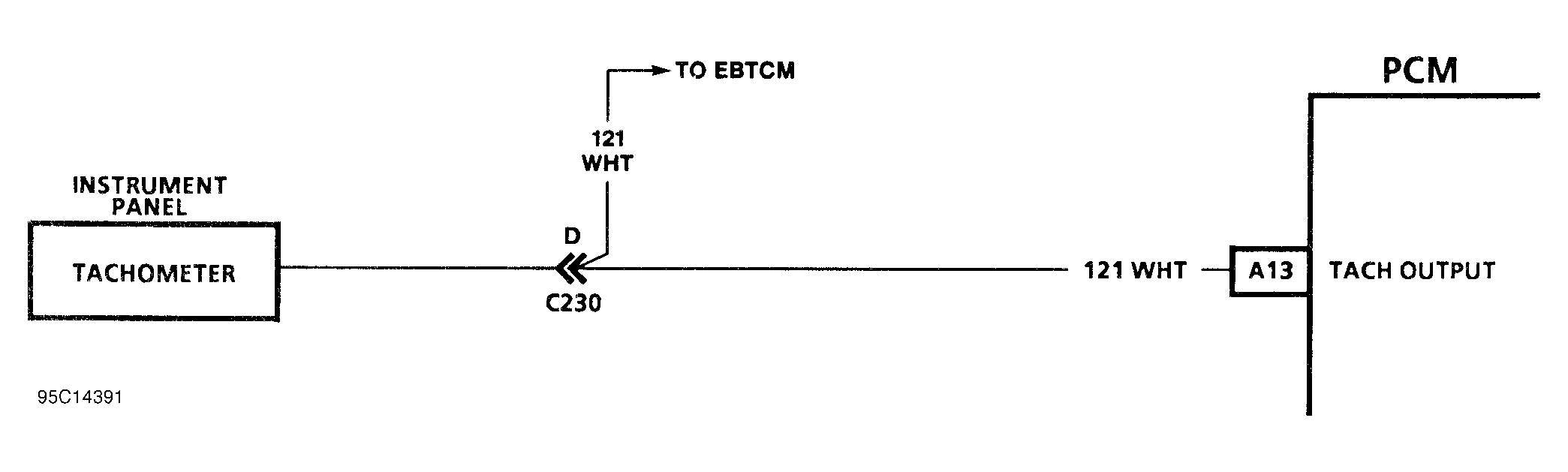

Fig 1: Code 99 Schematic (Corvette) Tach Output Circuit
G95C14391

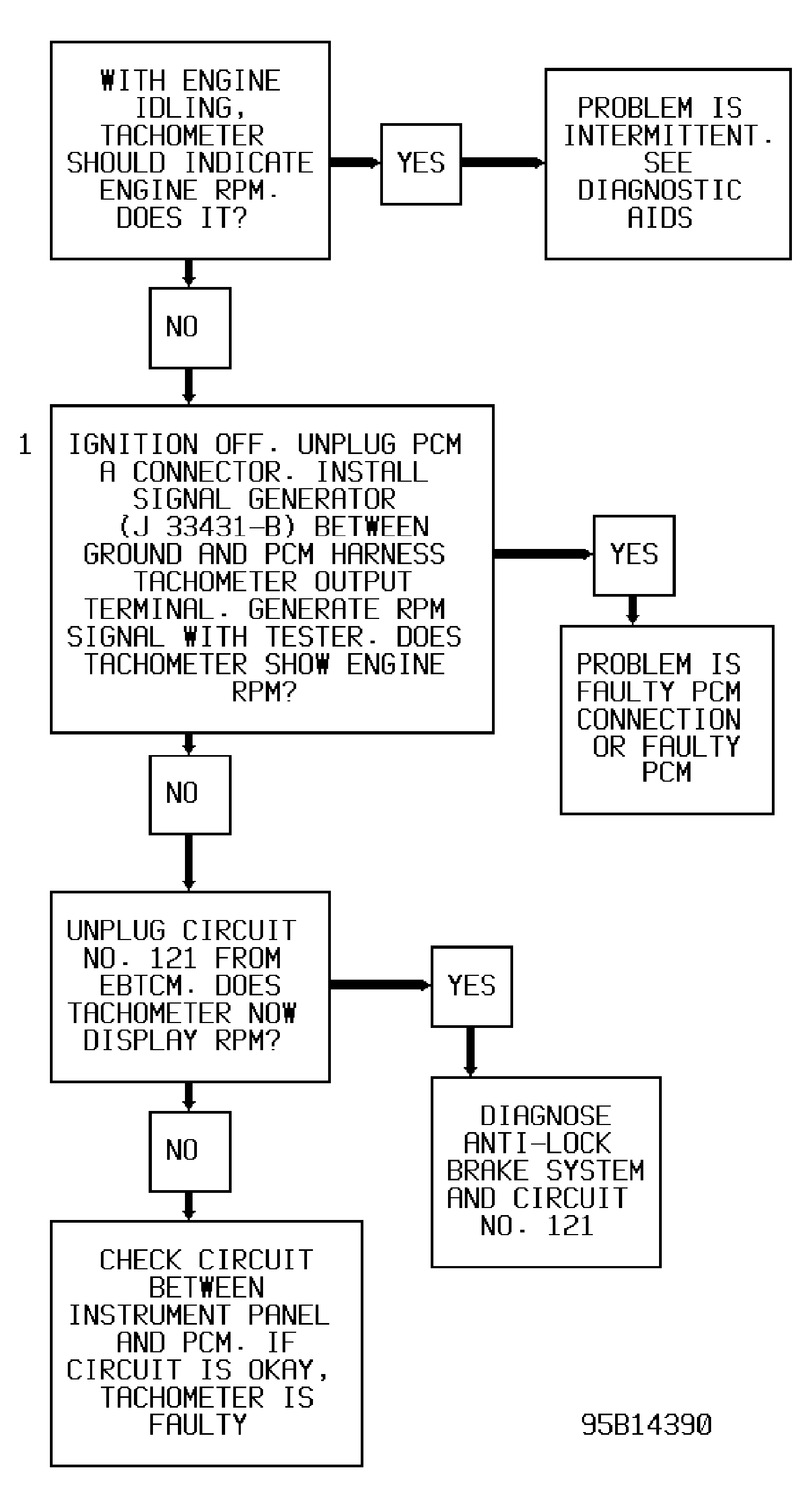

Fig 2: Code 99 Diagnostic Flow Chart (Corvette) Tach Output Circuit
G95B14390
