Test Description

NOTE: Test numbers refer to numbers on diagnostic chart.
  1. Checks 2-3 shift solenoid and internal transmission for shorts.
  2. Checks for power to 2-3 shift solenoid from ignition through the fuse.

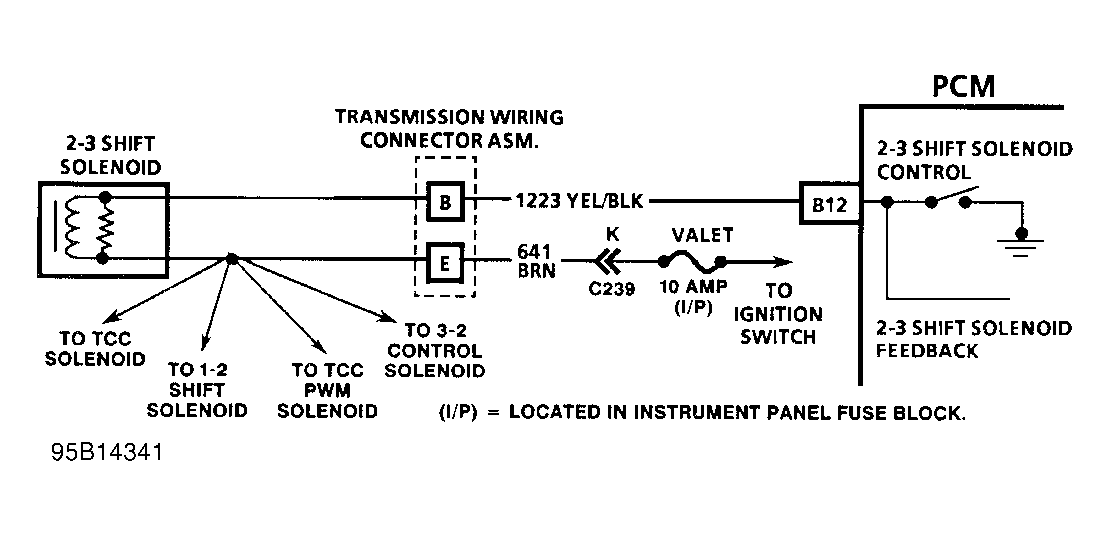

Fig 1: Code 81 Schematic (Corvette) 2-3 Shift Solenoid
G95B14341

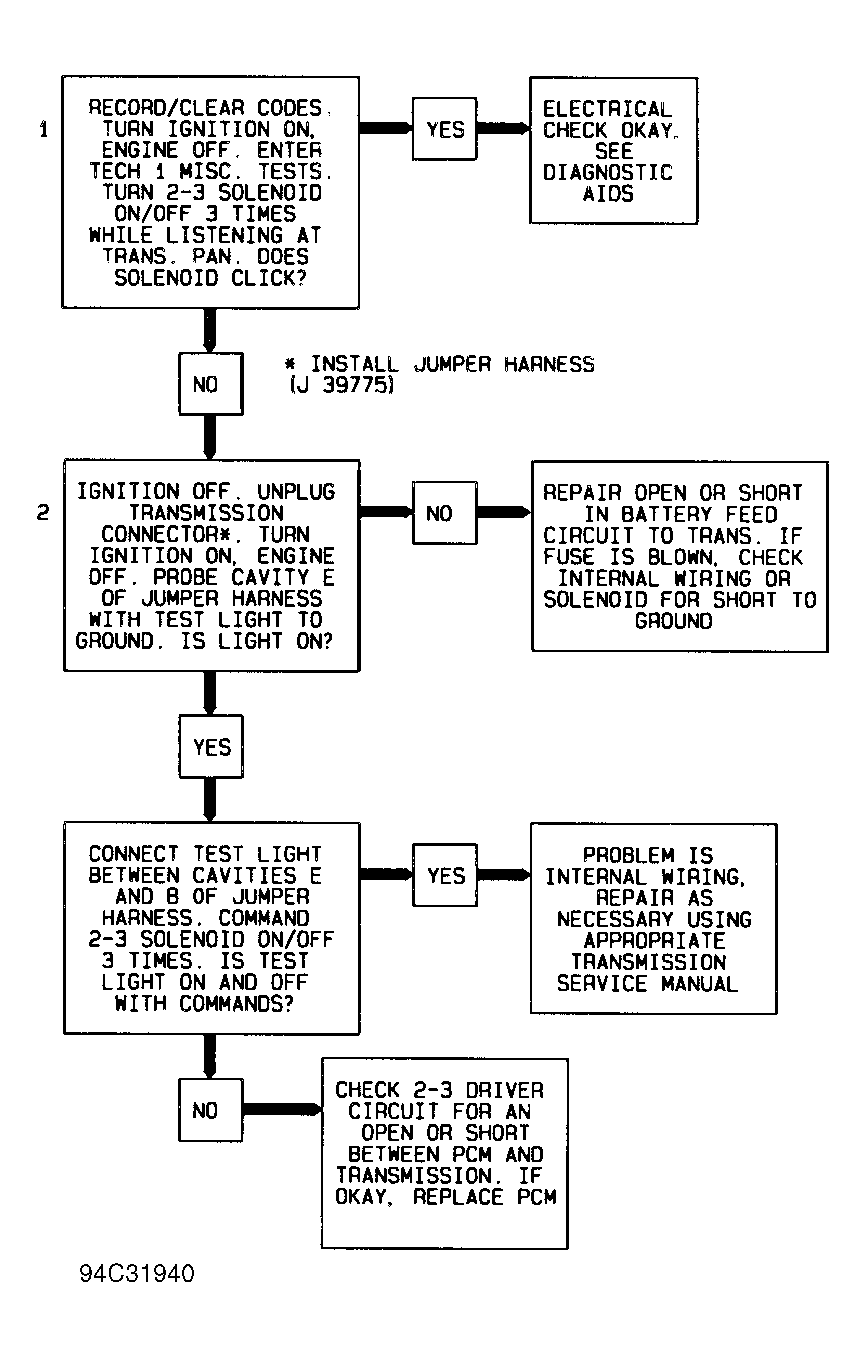

Fig 2: Code 81 Diagnostic Flow Chart (Corvette) 2-3 Shift Solenoid
G94C31940
