Test Description

NOTE: Test numbers refer to numbers on diagnostic chart.
  1. Checks if PCM is commanding TCC solenoid on.
  2. Checks for voltage to solenoid.

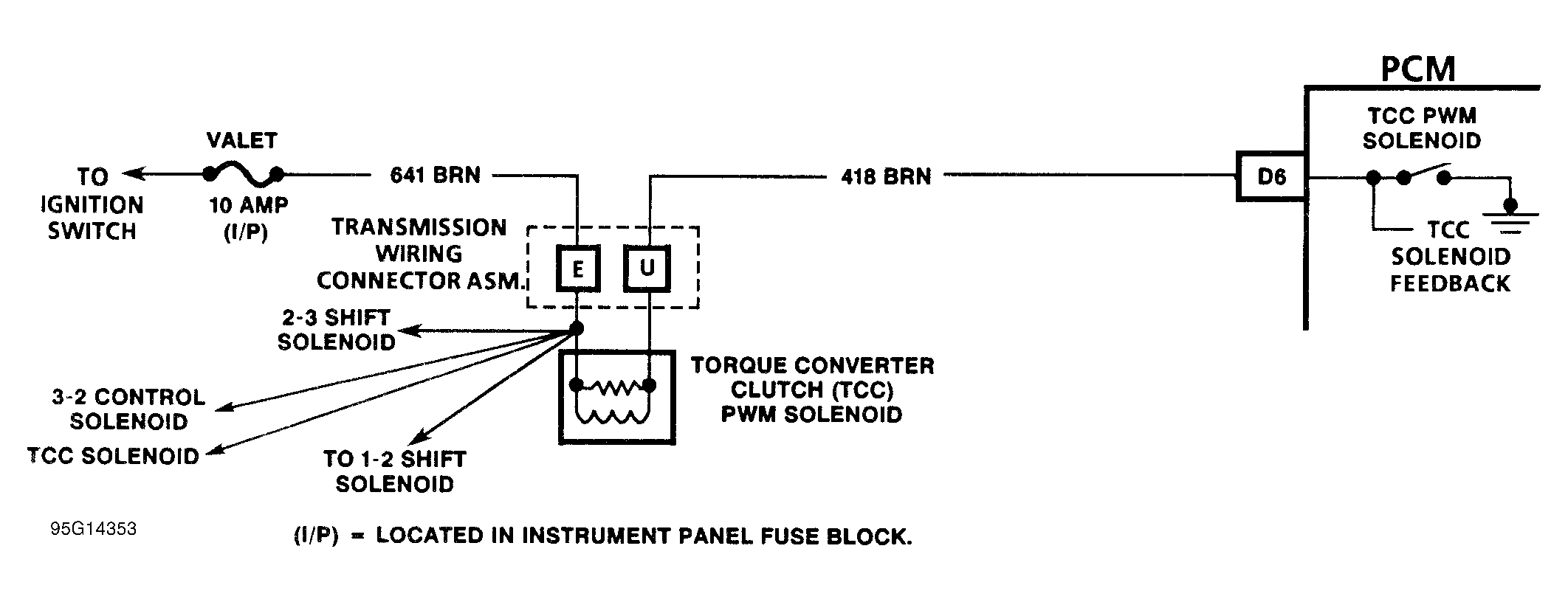

Fig 1: Code 83 Schematic (Corvette W/ A/T) TCC PWM Solenoid
G95G14353

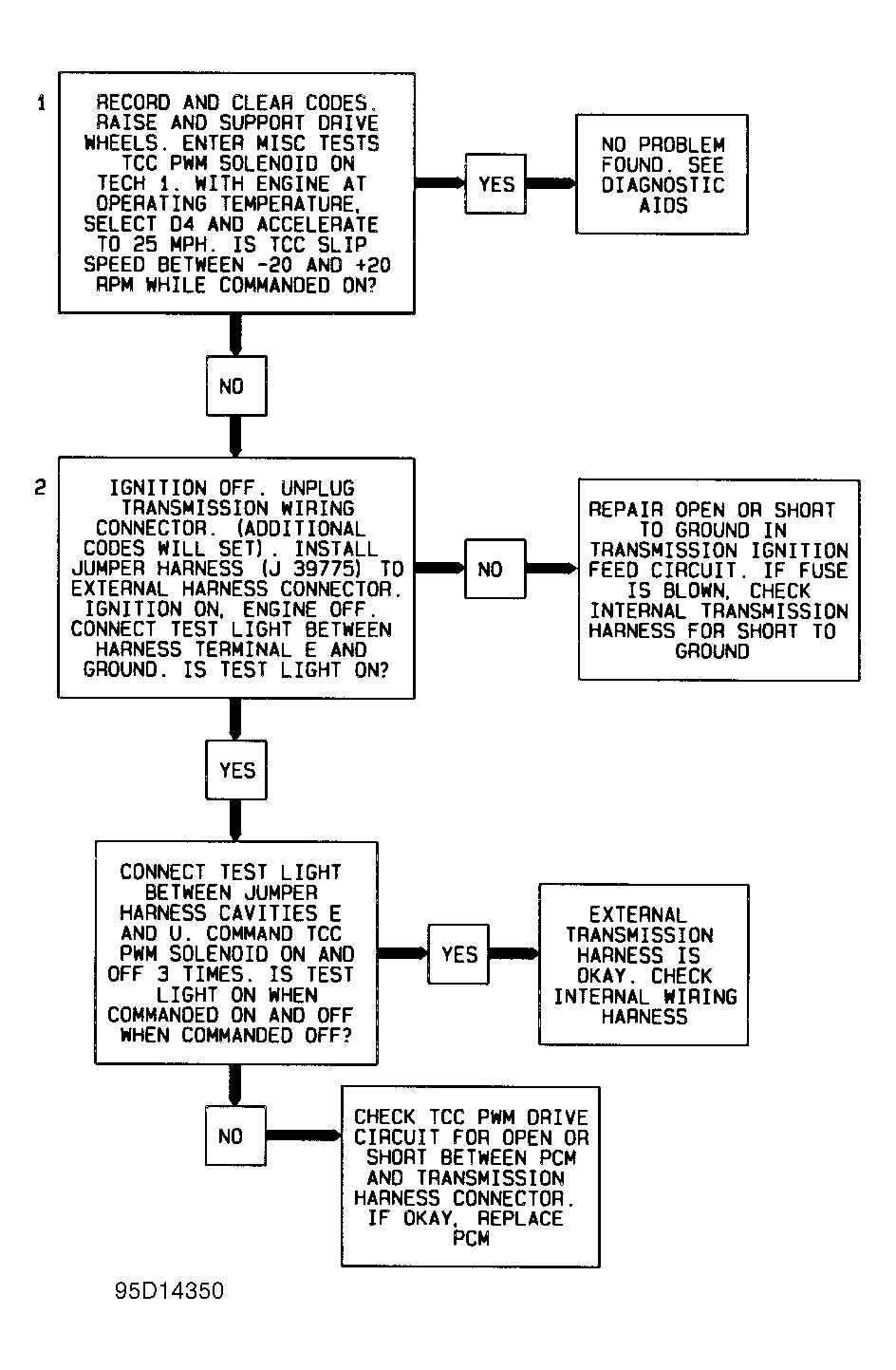

Fig 2: Code 83 Diagnostic Flow Chart (Corvette W/ A/T) TCC PWM Solenoid
G95D14350
