Diagnostic Aids

If code is intermittent, check customer driving habits (driving with foot resting on brake pedal) or for unusual traffic conditions (stop and go expressway traffic).

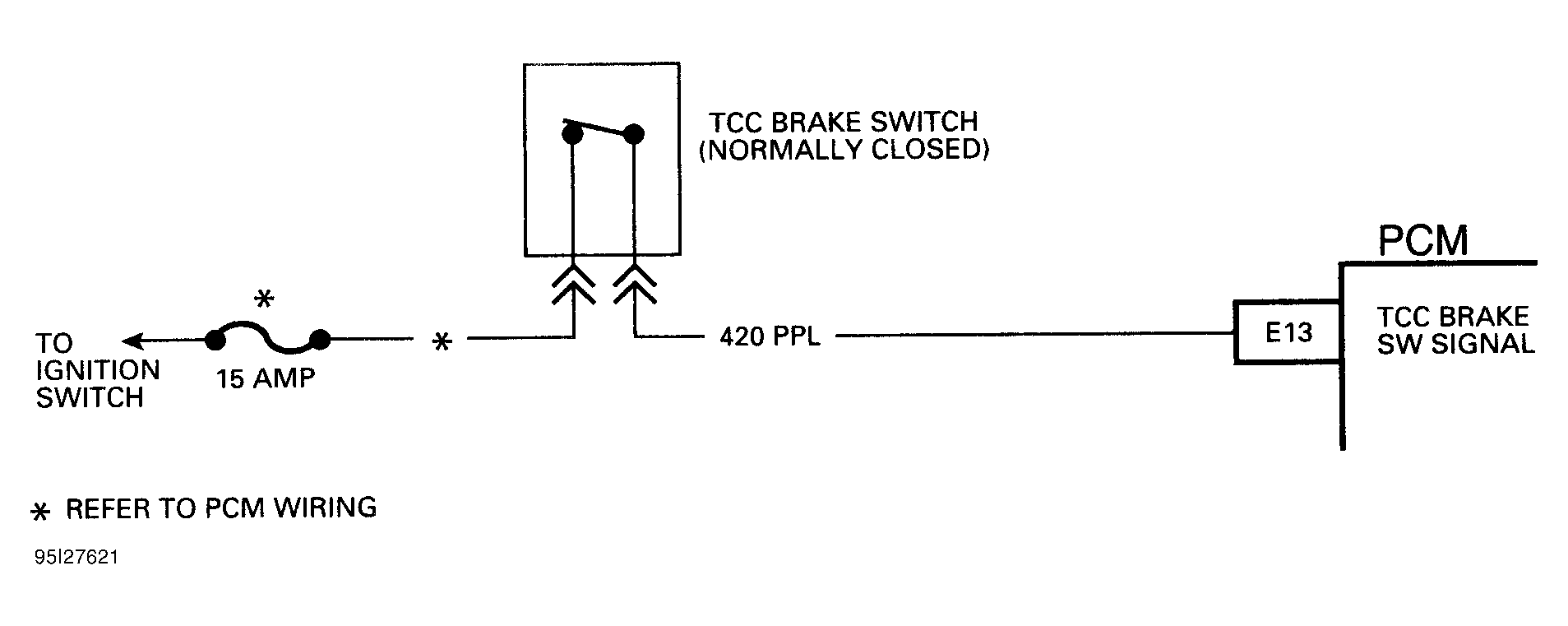

Fig 1: Codes 37/38 Schematic (All Models) TCC Brake Switch On/Off

Fig 2: Codes 37/38 Flow Chart (All Models) TCC Brake Switch On/Off
