Pull-In Windings

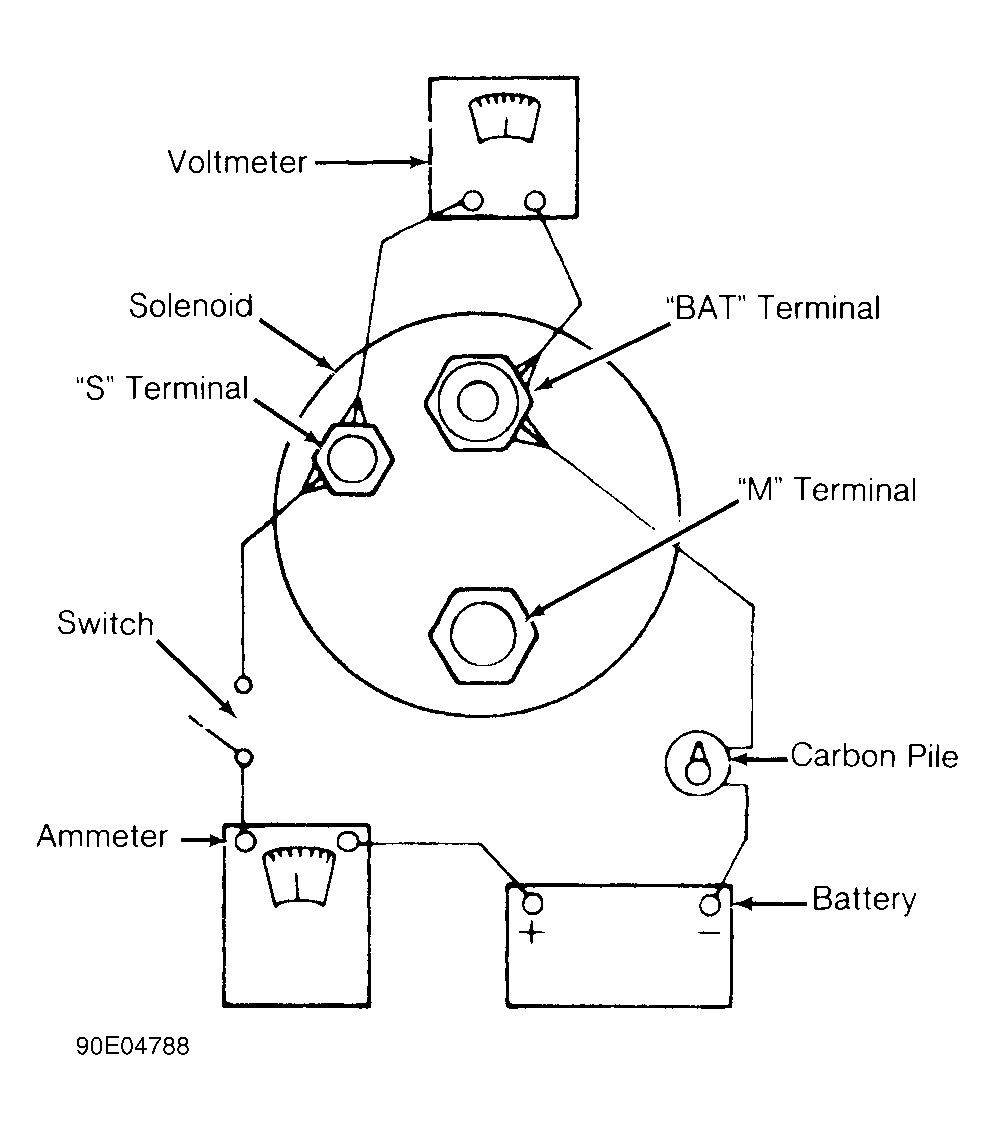

Connect jumper wires, 12-volt battery and test equipment to solenoid. See Fig 1. Decrease battery voltage to 10 volts. Refer to SOLENOID PULL-IN WINDING SPECIFICATIONS table for correct amperage draw. A higher reading indicates windings are shorted or grounded; a lower reading indicates excessive resistance.
NOTE:
To prevent overheating of pull-in windings, DO NOT energize for more than 15 seconds. Current draw will decrease as winding temperature increases.
SOLENOID PULL-IN WINDING SPECIFICATIONS
| Part No. | Amps | Volts |
|---|---|---|
| 1114520 | 60-85 | 10 |
| 1114578 | 60-85 | 10 |
| 1114579 | 60-85 | 10 |
| 10456454 | 52-59 | 10 |
