Diagnostic Aids

Scan tester reading should closely match speedometer reading with drive wheels turning. If vehicle is equipped with an automatic transmission, check park/neutral switch adjustment. If no problem is found while using flow chart, proceed to the INTERMITTENTS in the TESTS W/O CODES - GASOLINE article.

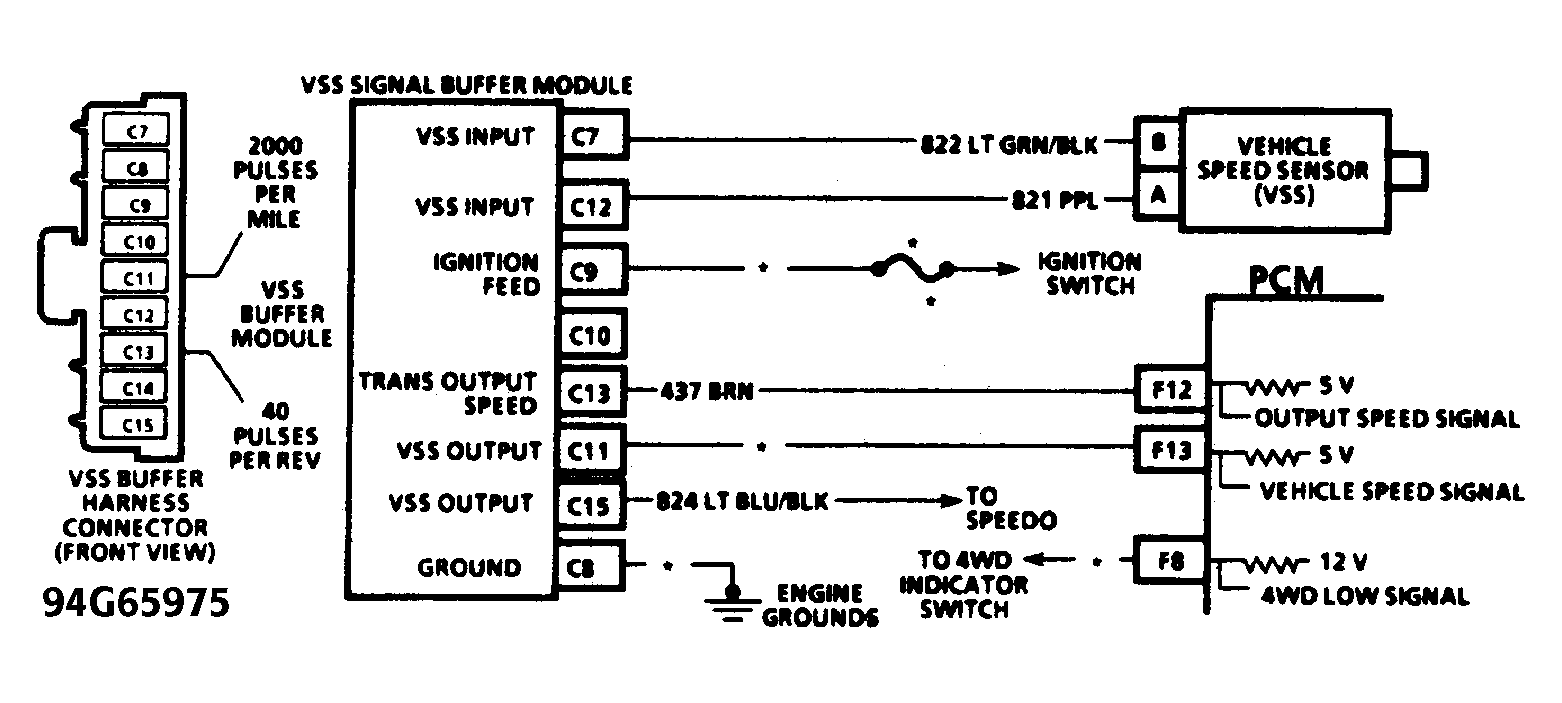

Fig 1: Code 24 Schematic ("C" & "K" Series 5.0L M/T) Vehicle Speed Sensor

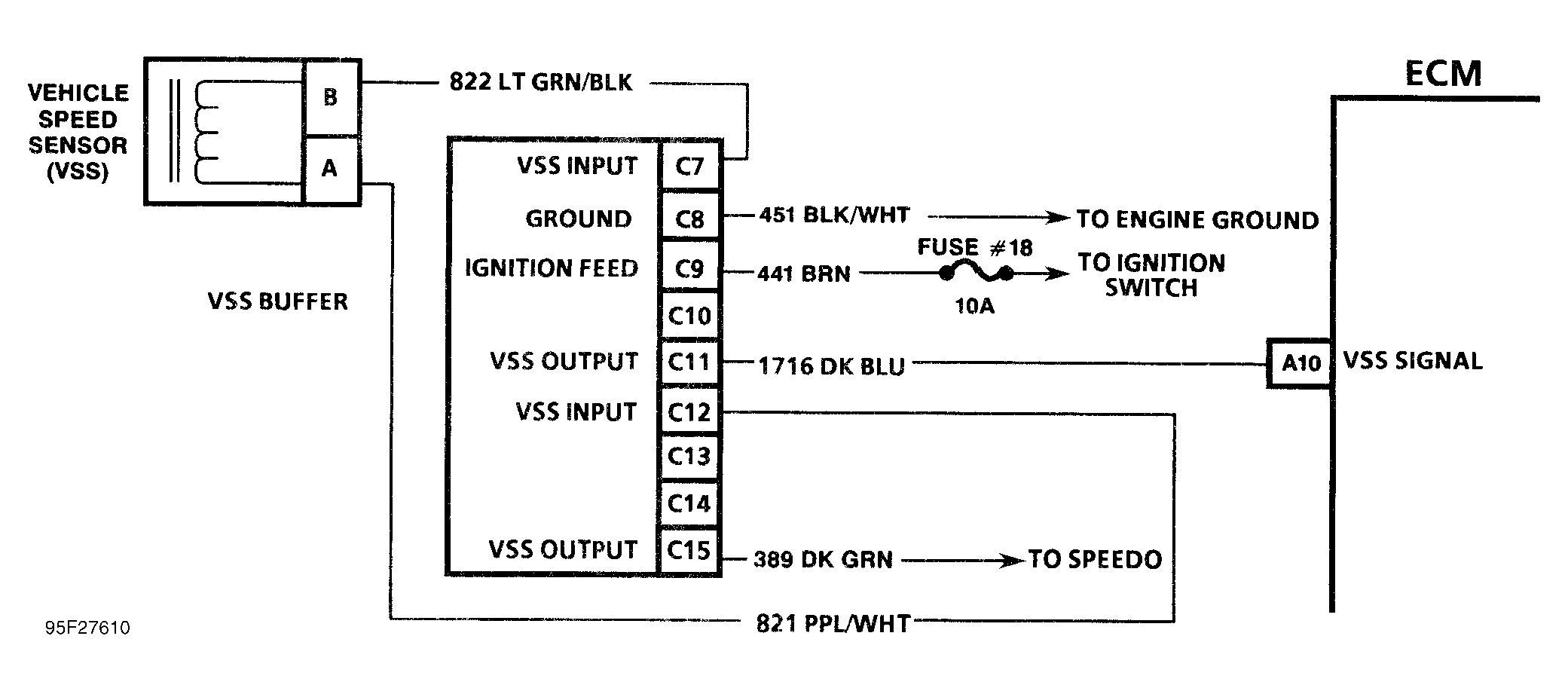

Fig 2: Code 24 Schematic ("P" Series M/T) Vehicle Speed Sensor

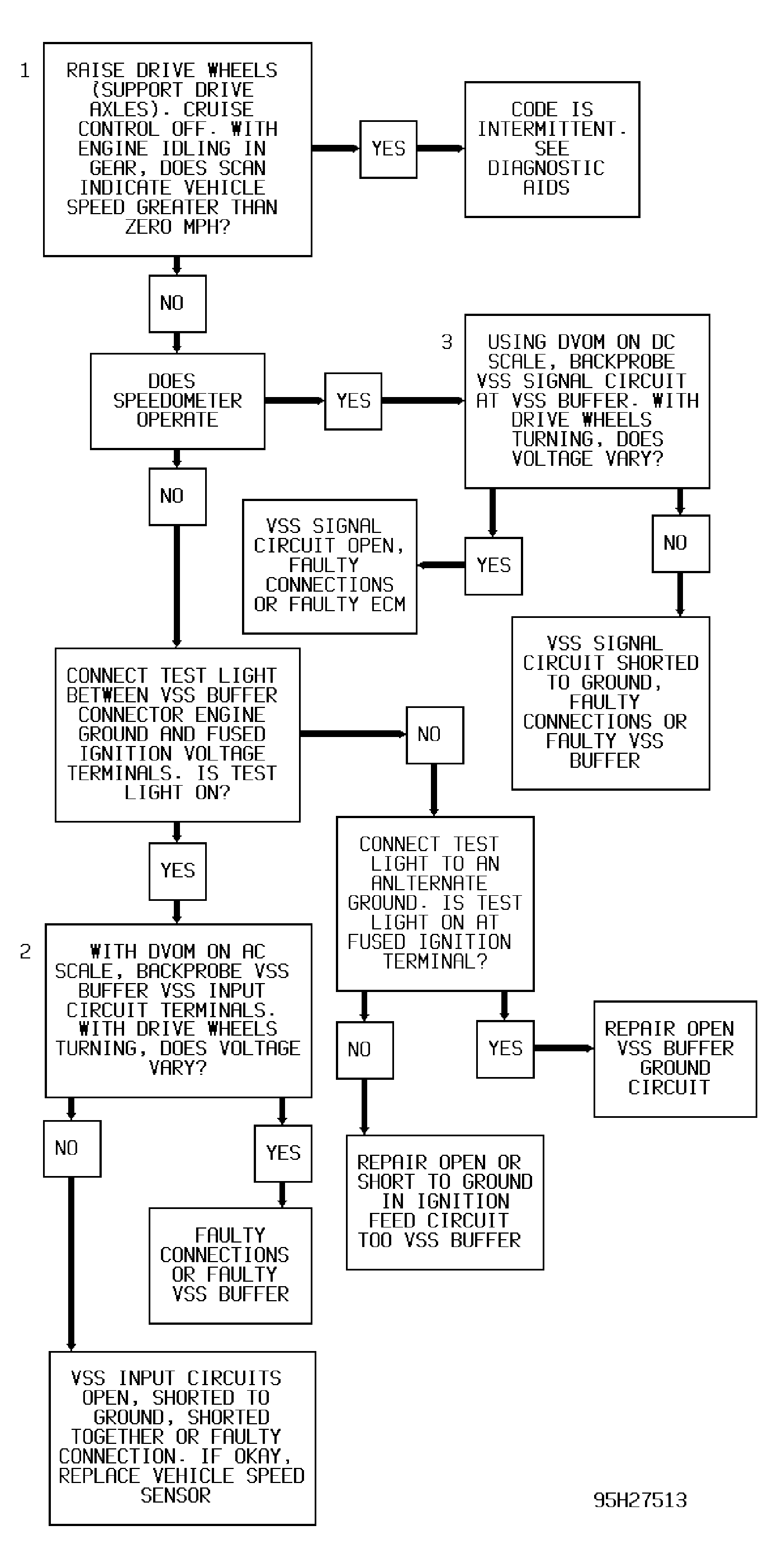

Fig 3: Code 24 Flow Chart (All Models) Vehicle Speed Sensor
