Connectors C100 To C301: C100

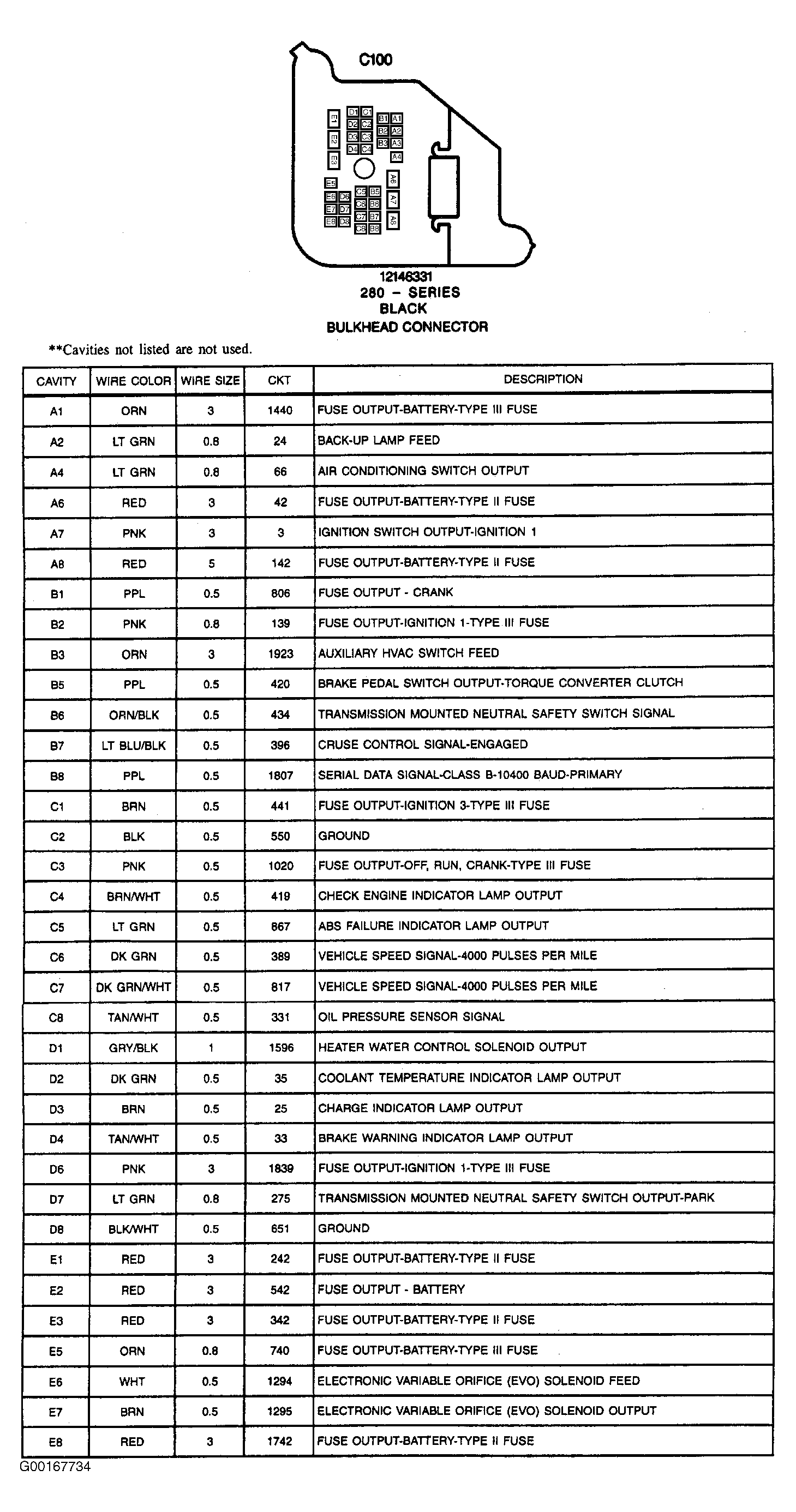

Fig 1: C100 - 36-Pin Connector, Black

G00167734

Courtesy of GENERAL MOTORS CORP.
