Connectors C100 To C301: C205

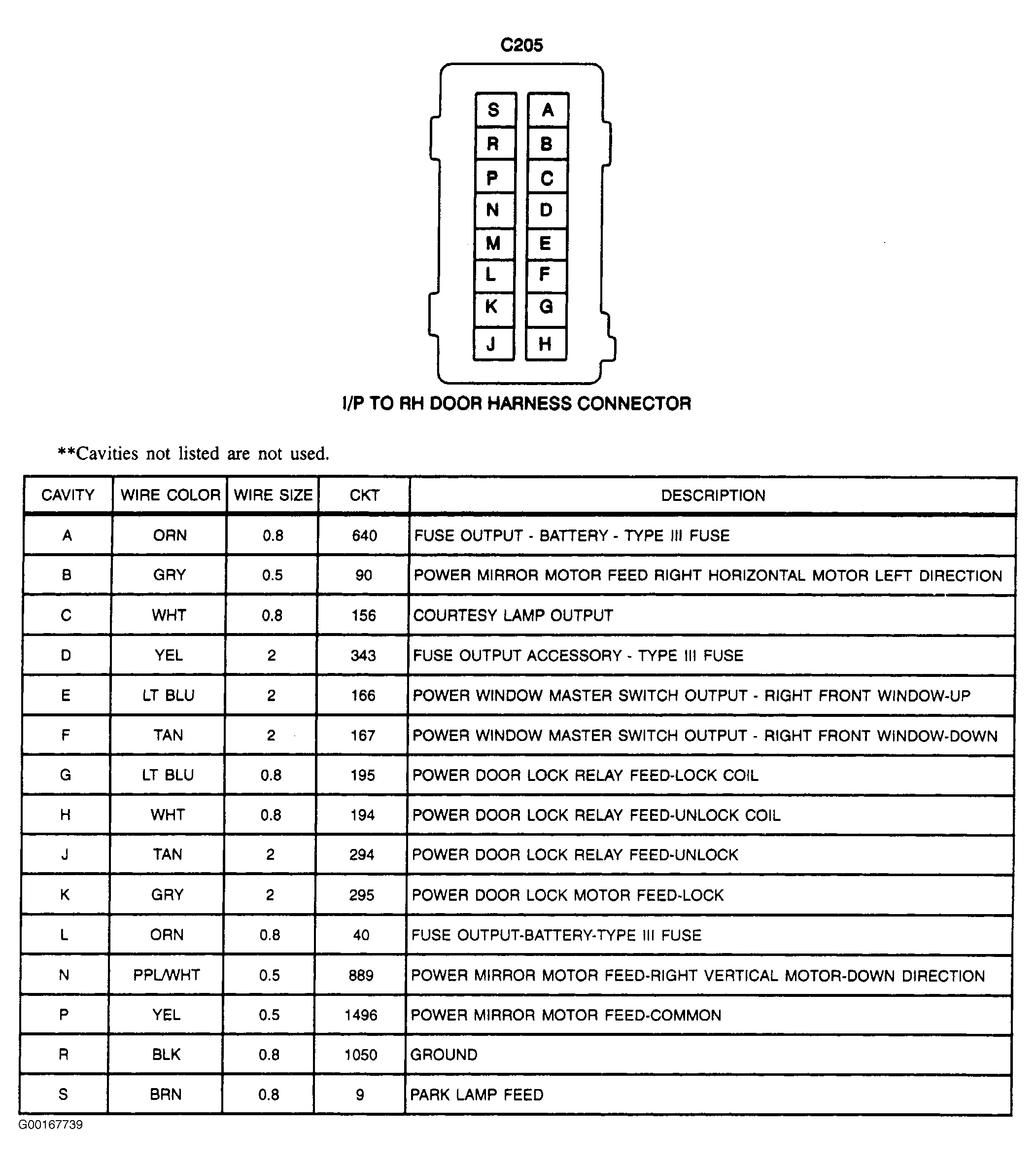

Fig 1: C205 - 16-Pin Connector

G00167739

Courtesy of GENERAL MOTORS CORP.
