Cruise Control Module

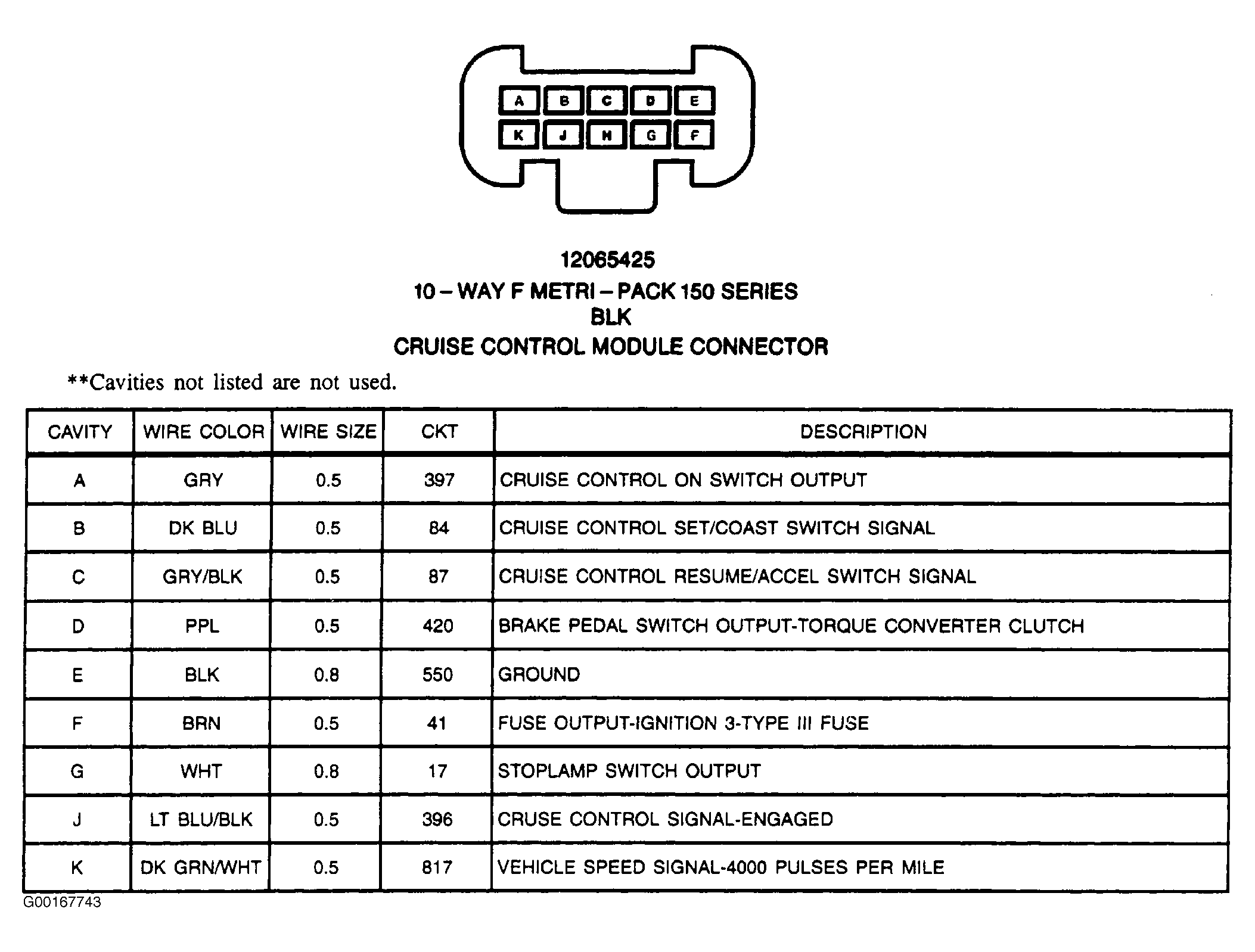

Fig 1: Cruise Control Module - 10-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
