Electronic Variable Orifice (EVO) Module

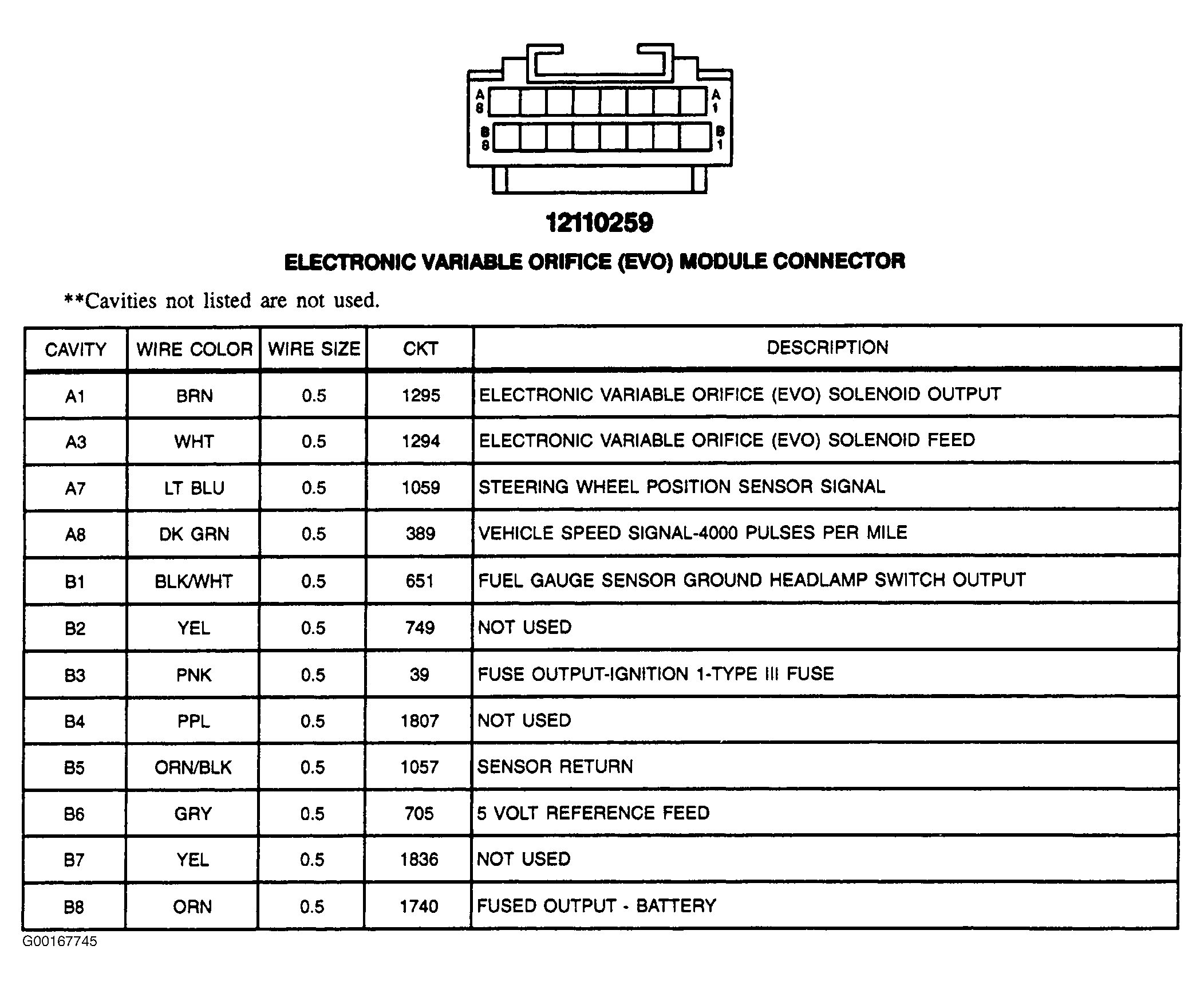

Fig 1: Electronic Variable Orifice (EVO) Module - 16-Pin Connector
G00167745Courtesy of GENERAL MOTORS CORP.
