HVAC Control Module C1 & Rear Window Wiper/Washer Module

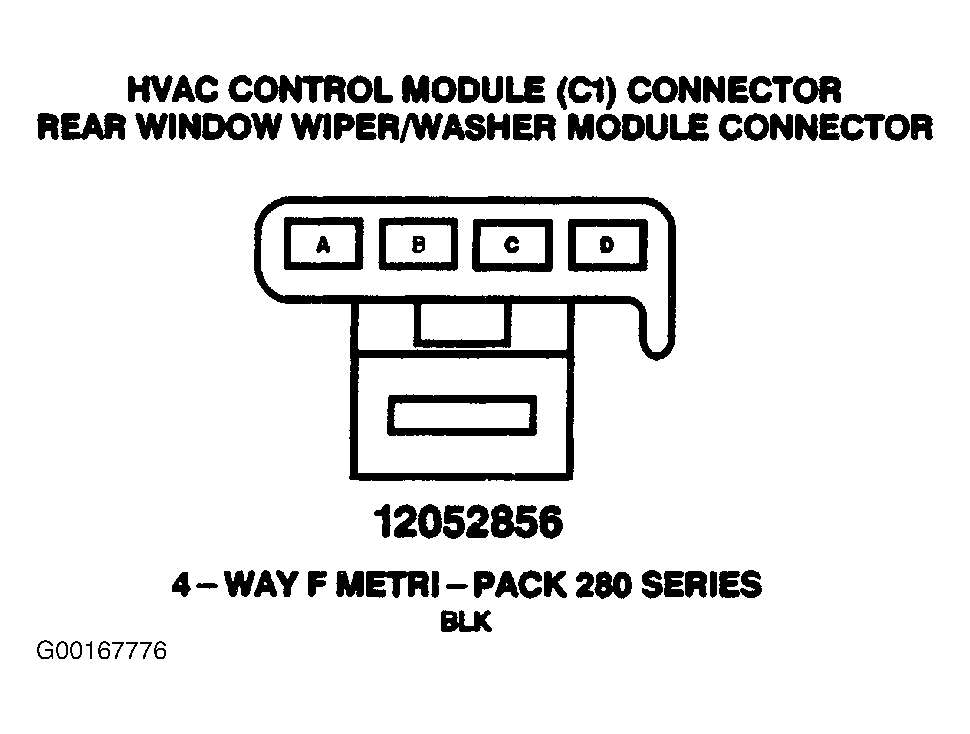

Fig 1: HVAC Control Module C1 & Rear Window Wiper/Washer Module - 4-Pin Connector, Black
G00167776Courtesy of GENERAL MOTORS CORP.
