Firing Order

NOTE: For firing order, see illustration. See Fig 1. For coil and spark plug wiring see IGNITION CONTROL MODULE (DIS) .

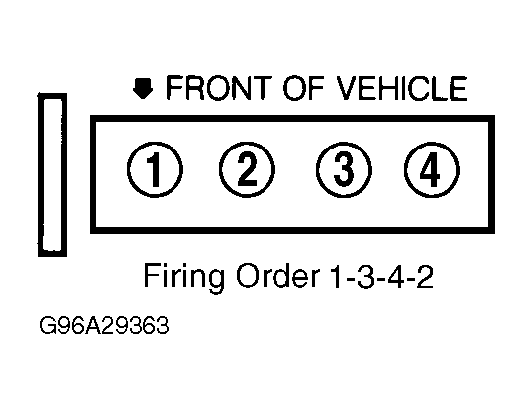

Fig 1: Firing Order
G96A29363
